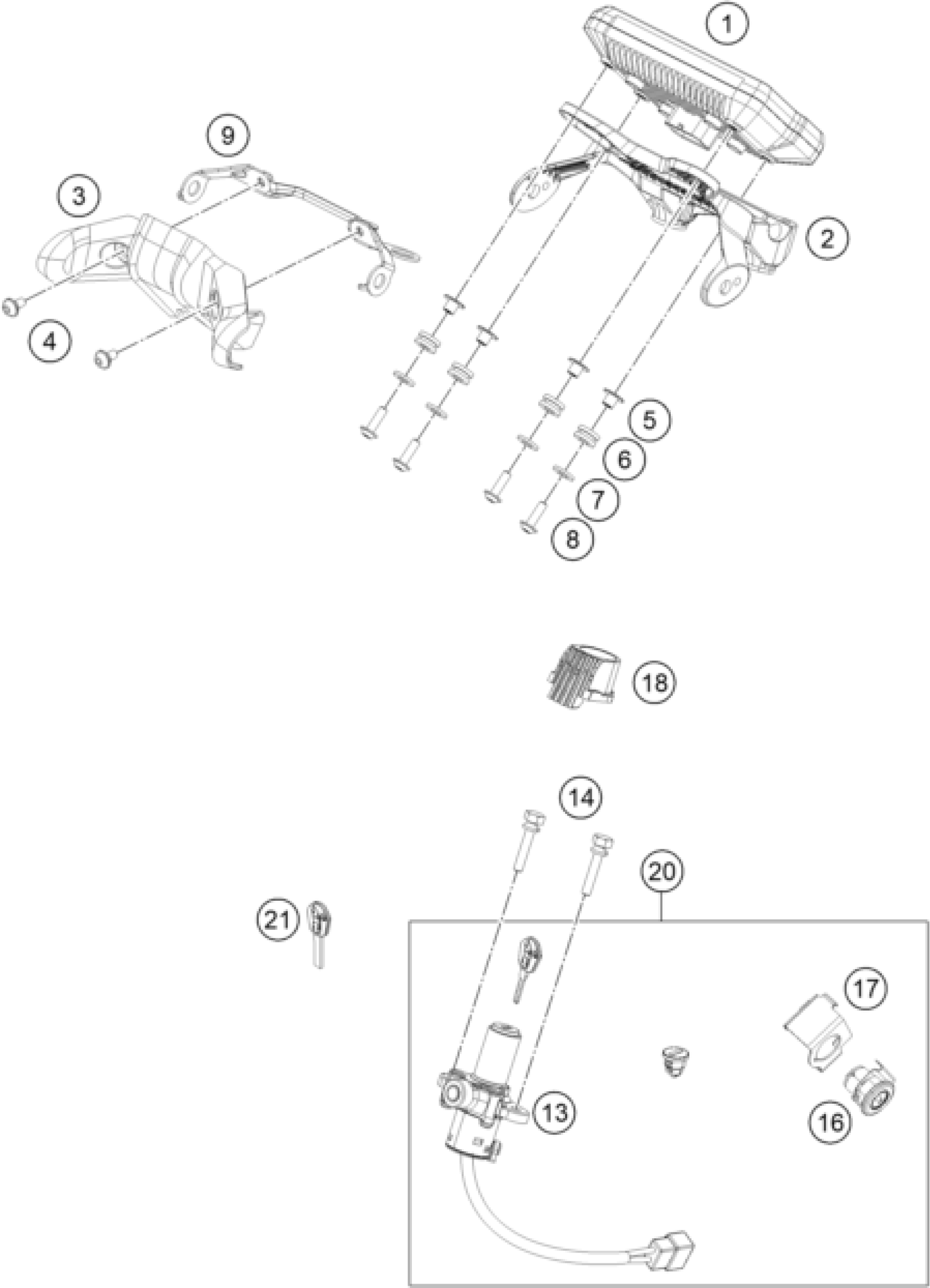

KTM 125 DUKE ORANGE 2017 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

13

Ignition lock complete

93011066044

$39.17

14

Special screw for ignition loc

93011064100

$2.05

16

SEAT LOCK

90107050050

$34.12

17

Retaining bracket

93007051000

$3.08

21

BLANK KEY 125/200 DUKE

90111067100

Unavailable

1

Speedometer with TFT, CAN, ABS

93314069000

$1,585.47

2

Holder handsbar CUM TFT speedo

93014064000

$43.38

3

Back cover TFT holder

93014064100

$7.85

4

Screw M6X1X9

93008020060

$2.05

5

Collar TFT speedo small

93014062010

$2.05

6

RUBBER SLEEVE

90507040001

$1.49

7

Washer, license plate holder s

93308015010

$1.49

8

Roundhead screw M5X18

J031060183

$1.49

18

Positioning rubber

93011066010

$2.05

20

Lock set

90111066144

Unavailable

9

Bracket TFT Cover black

93014064200

$5.23

21

KEY

90111067000

$130.05
