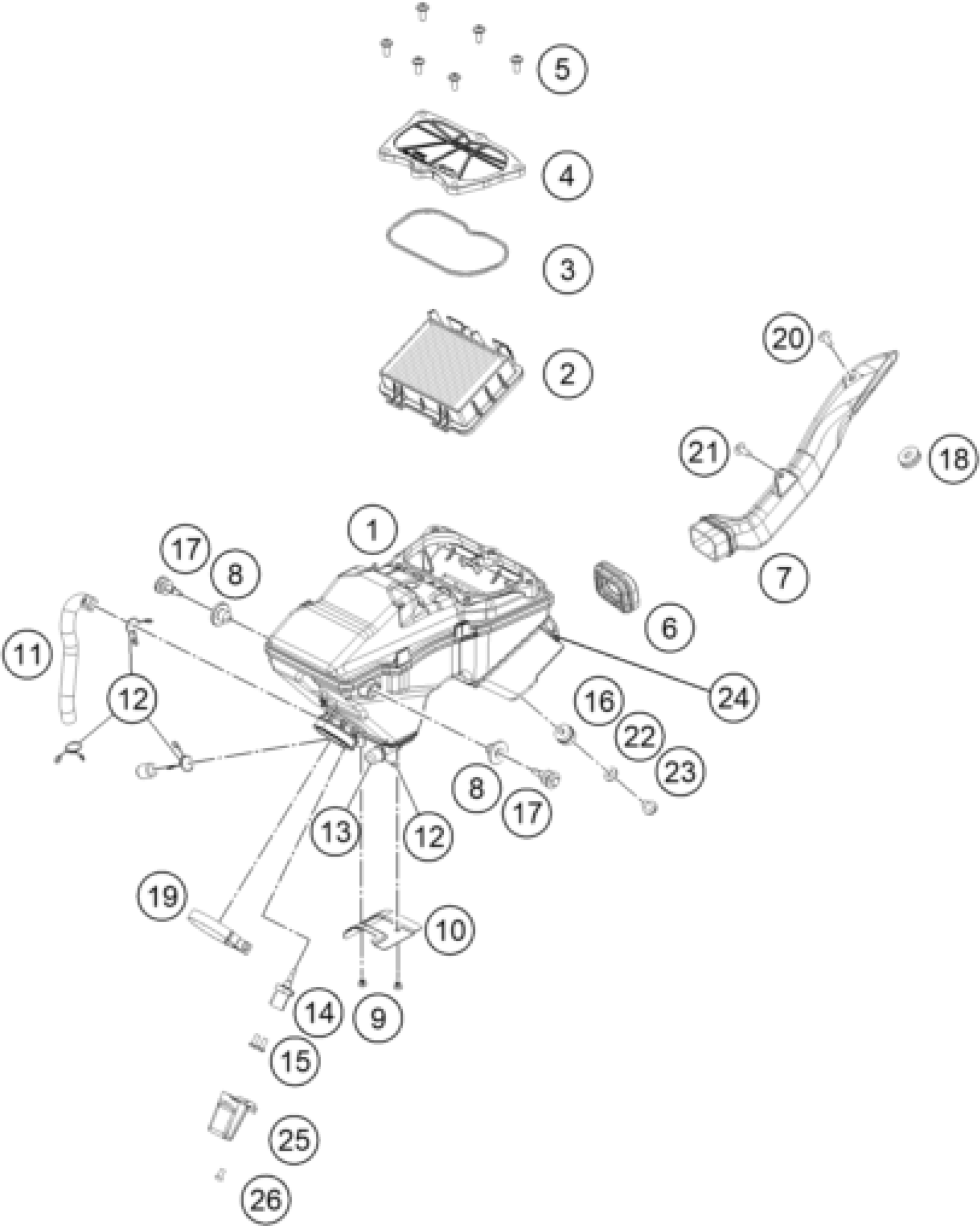

KTM 125 DUKE ORANGE 2017 AIR FILTER Diagram

#

Description

Price

1

Air filter box complete

93006001044

Unavailable

2

FILTER

93006015000

Unavailable

3

Seal

93006020050

Unavailable

4

Air filter box cover

93006002000

Unavailable

5

Flat-head screw M6

93006039000

Unavailable

6

Carburetor connection boot

93006001060

Unavailable

7

Duct dirty side

93006040000

Unavailable

8

Damping rubber

93006001080

Unavailable

9

Screw Truss M5X0.8

J031050103

Unavailable

10

Heat protection

93006001070

Unavailable

11

Engine vent hose

93030087200

Unavailable

12

CLAMP 16MM

90607017000

Unavailable

13

Plug

93030089000

Unavailable

14

Intake air temperature sensor

93041080000

Unavailable

15

Lens head screw M5X12

J005050126

Unavailable

16

SILENT BLOCK AIRFILTER

90106001007

Unavailable

17

Screw

93007046050

Unavailable

18

Rubber bushing

93008019010

Unavailable

19

HOSE CLAMP

90106027100

Unavailable

20

Sleeve spoiler inner RR MTG

93008044000

Unavailable

21

Screw truss M5X16

J031050166

Unavailable

22

Washer - plain

J125060001

Unavailable

23

HH COLLAR SCREW M6X8 SW10

J026060083

Unavailable

24

Rubber cowl pad

93006001015

Unavailable

25

SENSOR COVER

93041080060

Unavailable

26

FLAT HEAD SCREW M5X10

J005050103

Unavailable
