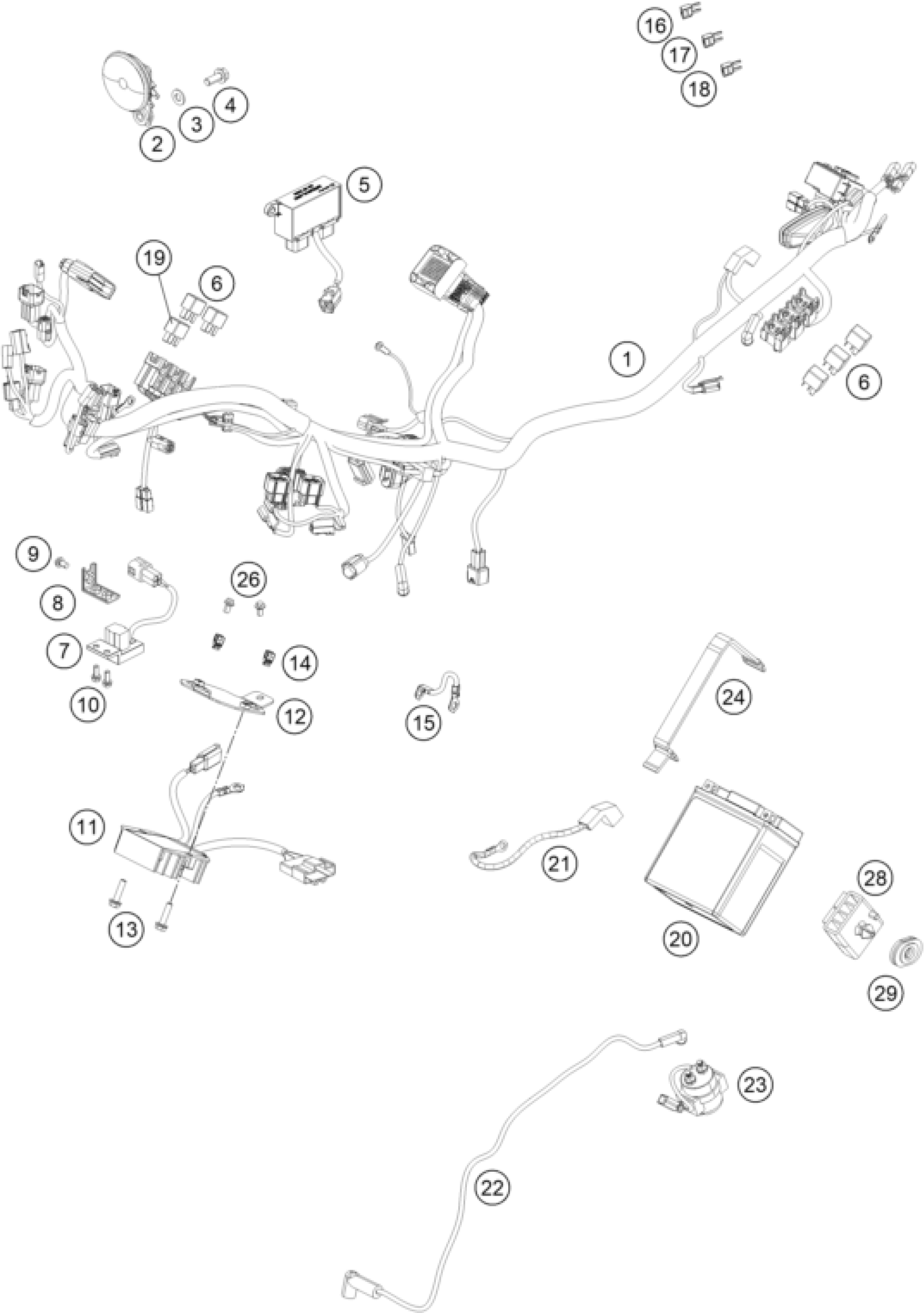

KTM 125 DUKE GREY 2012 WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS

90111175000

Unavailable

2

DC HORN

90111060000

Unavailable

3

WASHER 8,2X16X1,5

J125080003

Unavailable

4

HH COLLAR SCREW M8X20 SW12

J025080203

Unavailable

5

INTEGRAL UNIT

90111035000

Unavailable

6

relay (interlock)

90611057000

Unavailable

7

ROLL OVER SENSOR

90141088000

Unavailable

8

BRACKET ROLL OVER SENSOR

90141088050

Unavailable

9

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

10

HH COLLAR SCREW M5X13 SW8

J011050133

Unavailable

11

VOLTAGE REGULATOR

90111034000

Unavailable

12

BRACKET VOLTAGE REGULATOR

90111034010

Unavailable

13

bolt flanged M6X25

J025060253

Unavailable

14

THROTTLE CABEL GUIDANCE

90102091050

Unavailable

15

GROUND CABLE

90111197000

Unavailable

16

FUSE 10A 07

75011088010

Unavailable

17

FUSE 15A 07

75011088015

Unavailable

18

FUSE 30A

75011088030

Unavailable

20

BATTERY

90111053000

Unavailable

21

GROUND CABLE

90111097000

Unavailable

22

STARTER CABLE

90111059000

Unavailable

23

STARTER RELAY

90111058000

Unavailable

24

BRACKET RUBBER FOR BATTERY

90111054000

Unavailable

19

RELAY (AUX1DIODE)

90611157000

Unavailable

26

HH-COLLAR SCREW M6X10 SW8

J025060109

Unavailable

28

BATTERY RUBBER HOLDER

90111055000

Unavailable

29

GROMMET

90108060003

Unavailable
