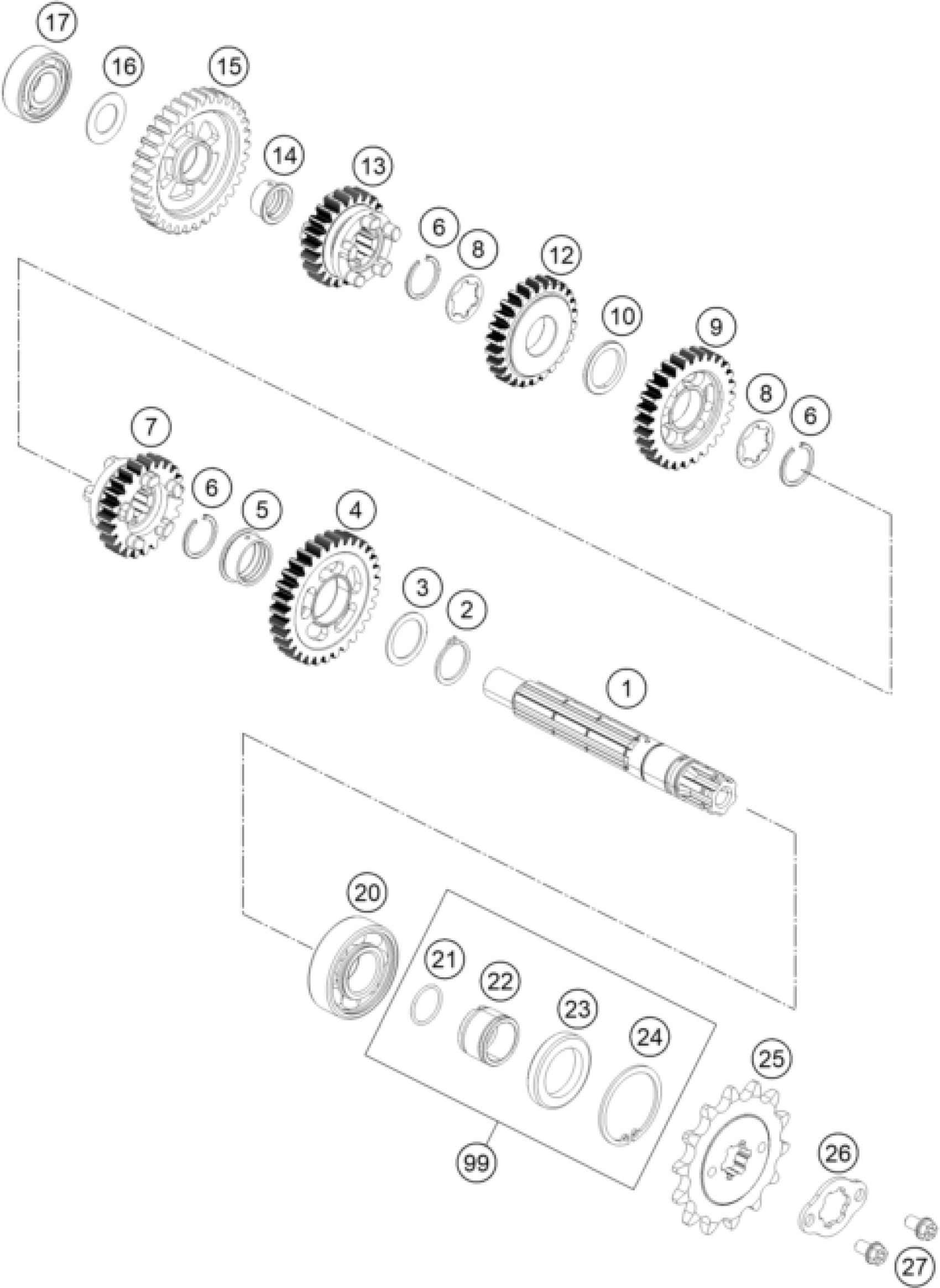

KTM 125 DUKE GREY 2012 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

COUNTER SHAFT CPL.

90633010000

Unavailable

2

CIRCLIP 20X1,2

J471020121

Unavailable

3

WASHER 20,2X27X1

90133034100

Unavailable

4

COUNTERWHEEL 2. GEAR

90633012000

Unavailable

5

BUSHING

90133001003

Unavailable

6

CIRCLIP 20X1,2

J471020122

Unavailable

7

COUNTERWHEEL 5. GEAR

90133015000

Unavailable

8

WASHER

90633033000

Unavailable

9

COUNTERWHEEL 3. GEAR

90133013000

Unavailable

10

THRUST WASHER

90633001007

Unavailable

12

COUNTERWHEEL 4. GEAR

90133014000

Unavailable

13

COUNTERWHEEL 6. GEAR

90133016000

Unavailable

14

BUSHING

90133001009

Unavailable

15

COUNTERWHEEL 1. GEAR

90133011000

Unavailable

16

Washer 15X26X0,8

J125150006

Unavailable

17

BALL BEARING 15X35X11

90130004003

Unavailable

20

BALL BEARING 6204-Z/HN3

J625062041

Unavailable

21

O-RING 17,5X1,5

J770017515

Unavailable

22

BUSHING SPROCKET

90133029003

Unavailable

23

SHAFT SEAL RING 25X37X6

J760253706

Unavailable

24

CIRCLIP 37X1,5

J472037150

Unavailable

25

SPROCKET 14T.

90133029014

Unavailable

26

BRACKET SPROCKET

90133029001

Unavailable

27

HH COLLAR SCREW M6X10 WS10

J025060106

Unavailable

99

COUNTER SHAFT REP. KIT 125DUKE

00050000944

Unavailable
