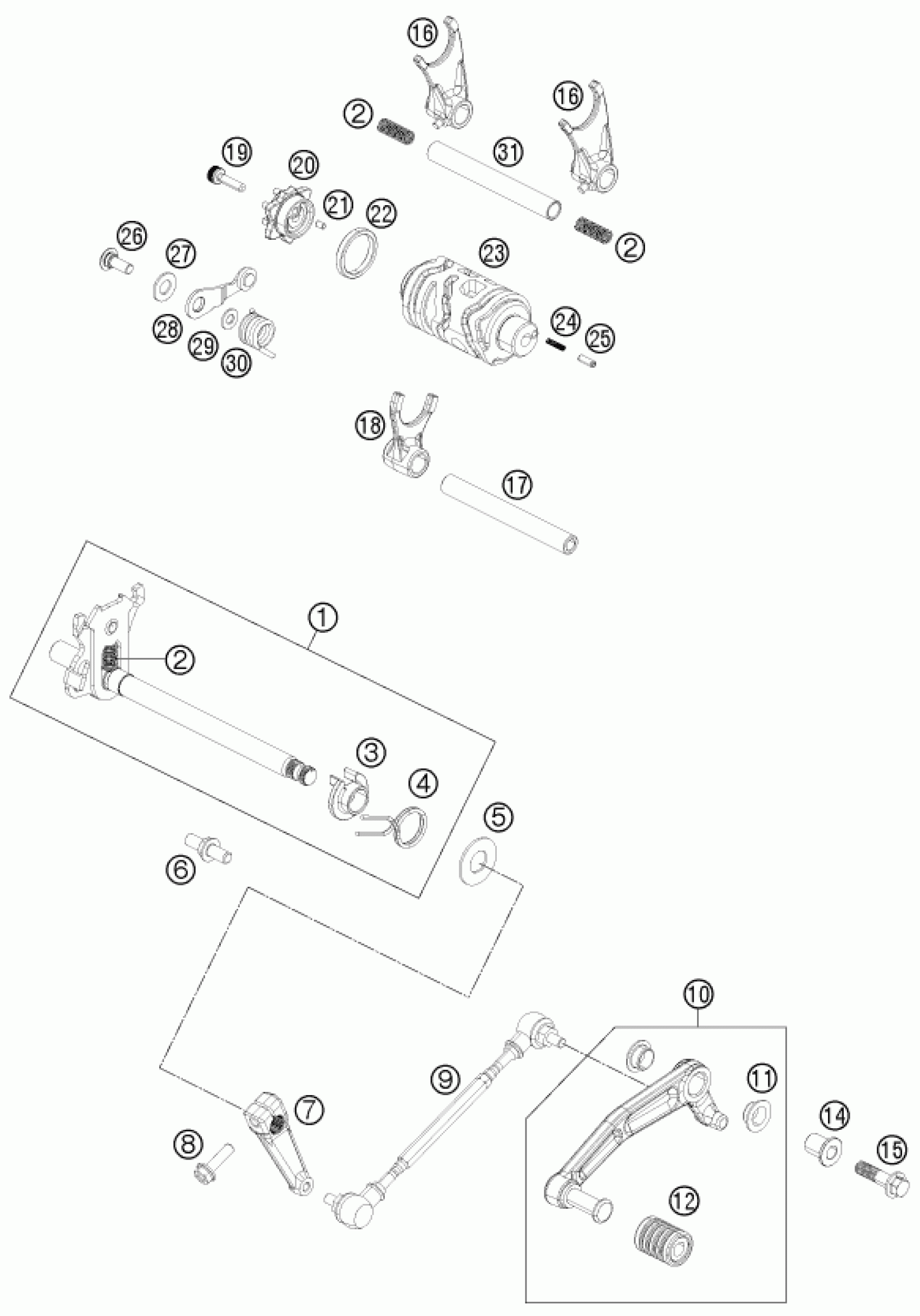

KTM 125 DUKE GREY 2012 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

$27.95

2

TENSION SPRING

90134009000

$1.49

4

RETURN SPRING

90134014000

$4.11

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

BAFFLE SHIFT LEVER

90634031010

$17.76

8

HH COLLAR SCREW M6X22 SW10

J025060223

$1.49

9

TENSION ROD CPL.

90634040033

$23.55

10

SHIFTING LEVER CPL.

90134031133

$51.32

11

IGUS BUSH BEARING

90134036000

Unavailable

12

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

14

SPACER SLEEVE

90134031003

Unavailable

15

HH COLLAR SCREW M8X30 SS SW10

J025080303S

Unavailable

16

SHIFT FORK COUNTER

90134002000

Unavailable

17

GEAR SHIFT RAIL

90134019000

$5.23

18

SHIFT FORK MAIN

90134001000

$13.55

19

AH SCREW M6X20 SELF LOCKING

90134015003

$4.11

20

SHIFT DRUM LOCATING

90134015000

$16.73

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

SHIFT ROLLER

90134012000

Unavailable

24

CONTACT SPRING

90134012003

Unavailable

25

BOLT FOR GEAR INDICATOR

90134012001

$1.49

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

WASHER 6X12,8X1,2

90134039000

$1.49

30

ARRESTING LEVER SPRING

90134023000

$2.05

31

GEAR SHIFT RAIL COUNTER

90134190000

$5.23

3

SPRING BUSHING

90134022000

$4.11
