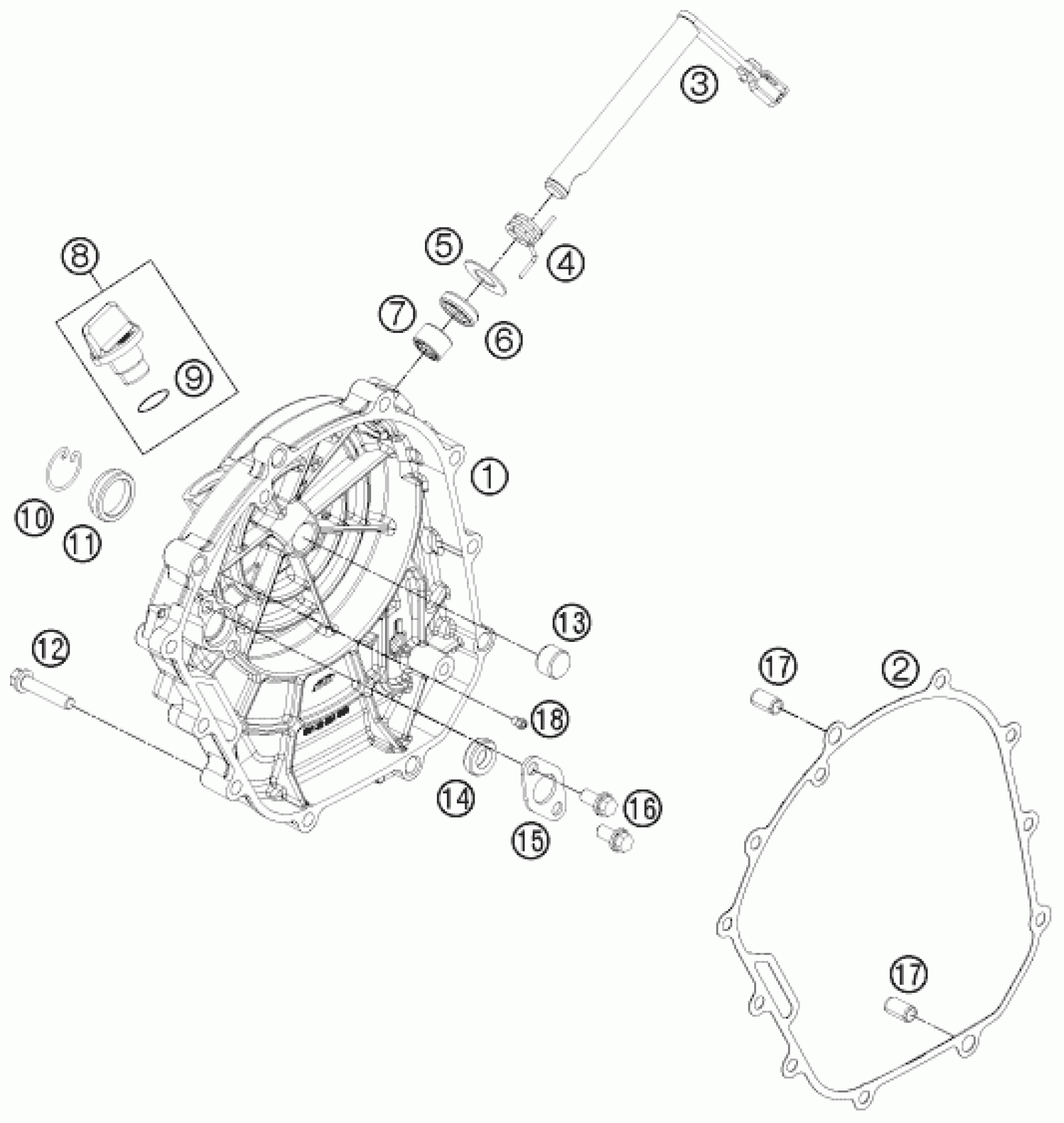

KTM 125 DUKE GREY 2012 CLUTCH COVER Diagram

#

Description

Price

8

OIL PLUG CPL.

90130020000

$1.49

9

O-RING 13,8X2,4

J770013824

$1.49

10

WIRE CIRCLIP 28X1,5

90130095001

$2.05

11

OIL GAUGE GLASS

90130095000

Unavailable

12

HH COLLAR SCREW M6X30 SW10

J025060306

$1.49

13

PUSH ROD

90132054000

$2.05

14

Seal - Oil

90134027000

$2.05

15

COVER PLATE

90130026002

Unavailable

16

FLANGED BOLT 6X12

90130078001

$1.49

17

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

18

OIL JET

90130064000

$6.07

1

CLUTCH COVER CPL.

90130026044

Unavailable

2

GASKET CLUTCH COVER

90130027000

Unavailable

5

WASHER 12,5X24X0,8MM

90132048005

$1.49

3

CLUTCH RELEASE LEVER CPL.

90132048033

Unavailable

4

SPRING F. RELEASE LEVER

90132048004

$2.05

6

OIL SEAL RING

90132051000

$3.08

7

needle bearing

90132050000

$5.23
