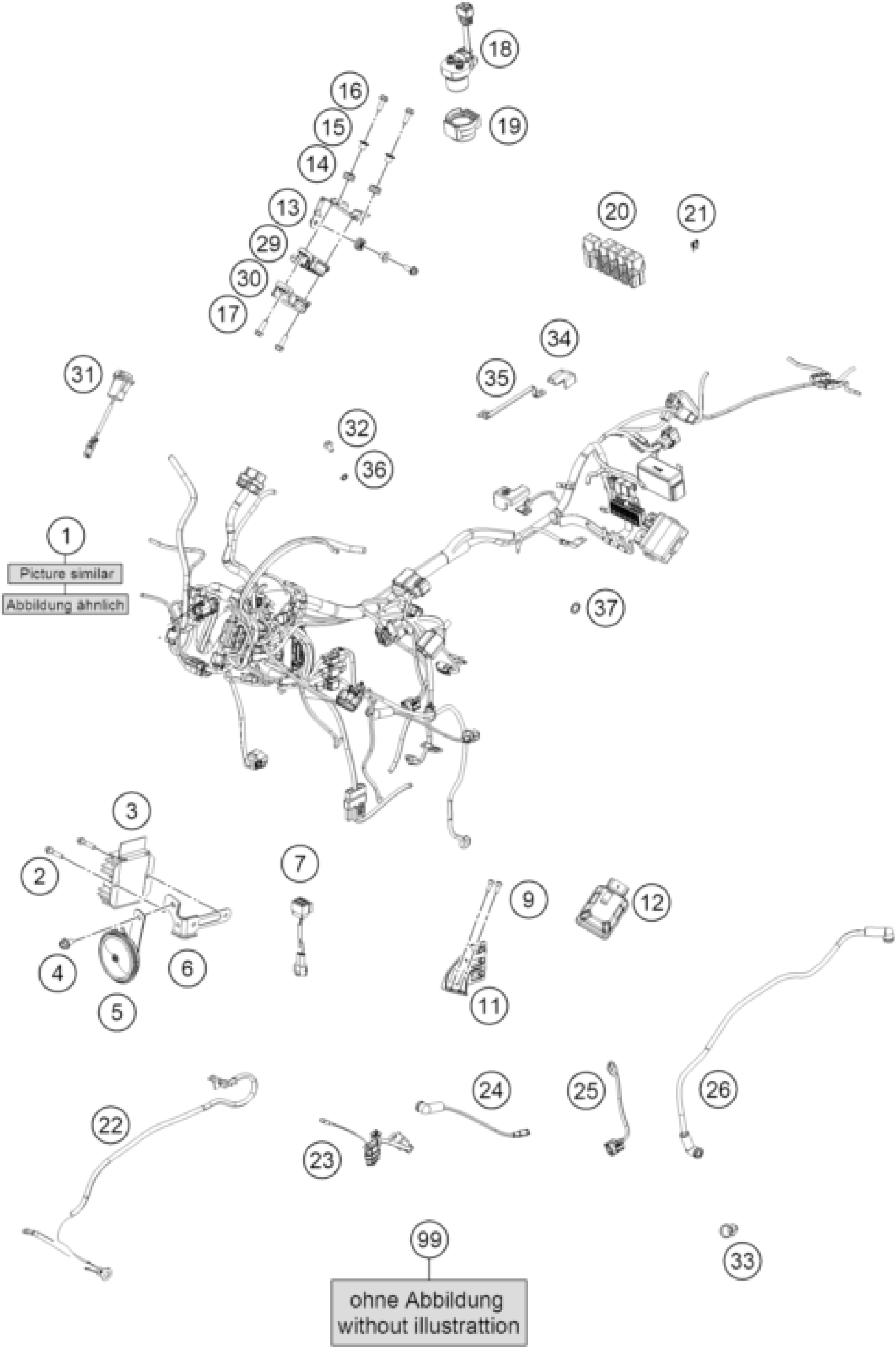

KTM 125 DUKE, blue 2025 WIRING HARNESS Diagram

#

Description

Price

1

main harness

96311075000

Unavailable

2

SK-Bundschraube M6x28

J900000602800

Unavailable

3

UNIT REGULATOR

A60111034000

Unavailable

4

HH COLLAR SCREW M8X12 SW12

J025080123

Unavailable

5

Horn

96311060000

Unavailable

6

Bracket horn

96311061000

Unavailable

7

Transil unit

28111096000

Unavailable

9

SOCKET HEAD BOLT M6X12

90508006001

Unavailable

11

Connector support

96311083000

Unavailable

12

UNIT CONNECTIVITY

96314086000

Unavailable

13

6-D sensor retaining bracket

96342091010

Unavailable

14

grommet

J650001801400

Unavailable

15

collar number plate mounting

J800000601000

Unavailable

16

hexagon socket screw M6X18

J912060183

Unavailable

17

BOLT FLANGED M6X1

J900000602202

Unavailable

18

Starter relais

93011058000

Unavailable

19

Rubber damper starter relay

93311058000

Unavailable

20

relay (interlock)

90611057000

Unavailable

21

Fuse 10a

93511088000

Unavailable

21

Fuse 15A

90111088015

Unavailable

21

Fuse 30A

90111088030

Unavailable

21

Fuse 20A

90111088020

Unavailable

21

FUSE 25A

90111088025

Unavailable

22

CABLE EARTH

96311097000

Unavailable

23

CABLE PUMP FUEL

96311007000

Unavailable

24

CABLE SWITCH PRESSURE OIL

96338091100

Unavailable

25

wiring harness temperatur sens

93811099000

Unavailable

26

Starter cable

96311059000

Unavailable

29

SENSOR LEAN ANGLE

95842090000

Unavailable

30

cover sensor lean angle upper

95842092020

Unavailable

31

socket charger USB

96311041000

Unavailable

32

Hex collar screw M6X12

J025060122

Unavailable

33

Cable tie

93803001022

Unavailable

34

cap relay starter

96311058010

Unavailable

35

Busbar plate

96311097002

Unavailable

36

TOOTHED WASHER M6

J797060003

Unavailable

37

washer toothed internal

J797100006

Unavailable

99

CABLE EARTH

96311098000

Unavailable

99

Rear turn signal wiring harnes

96311081000

Unavailable

99

wiring harness BCCU

96311093000

Unavailable

99

STRAP CABLE

J330000830000

Unavailable

99

STRAP CABLE

A60111093000

Unavailable
