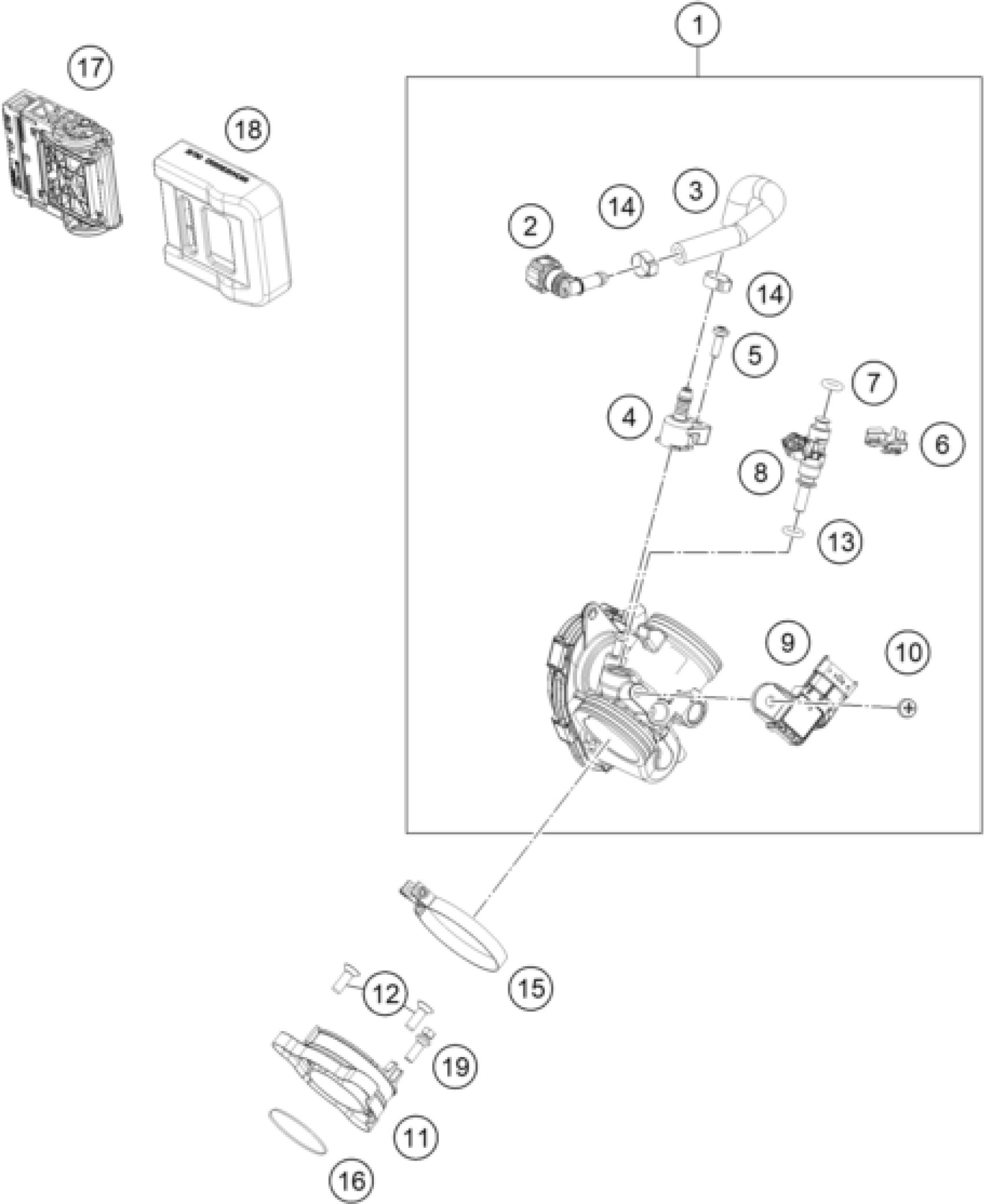

KTM 125 DUKE, blue 2025 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

96041001000

Unavailable

2

Angle piece

28107028000

Unavailable

3

fuel pipe

96307016000

Unavailable

4

Connecting piece, fuel line

95841037000

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

6

INJECTOR CLIP

90141001001

Unavailable

7

O-ring

55641023020

Unavailable

8

INJECTOR

96041023000

Unavailable

9

Pressure sensor

93041085000

Unavailable

10

SPECIAL SCREW M6X14

90141071001

Unavailable

11

pipe intake

96036044000

Unavailable

12

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

13

O-ring

55641023010

Unavailable

14

clamp quick connector end perm

00050148706

Unavailable

15

Hose clamp

94041002010

Unavailable

16

O-RING CONN. FL. CYL.-THR.BODY

90141002006

Unavailable

17

ECU EMS

96341031000

Unavailable

18

HOLDER ECU

96341030000

Unavailable

19

Twist-off screw M6X26

93530079000

Unavailable
