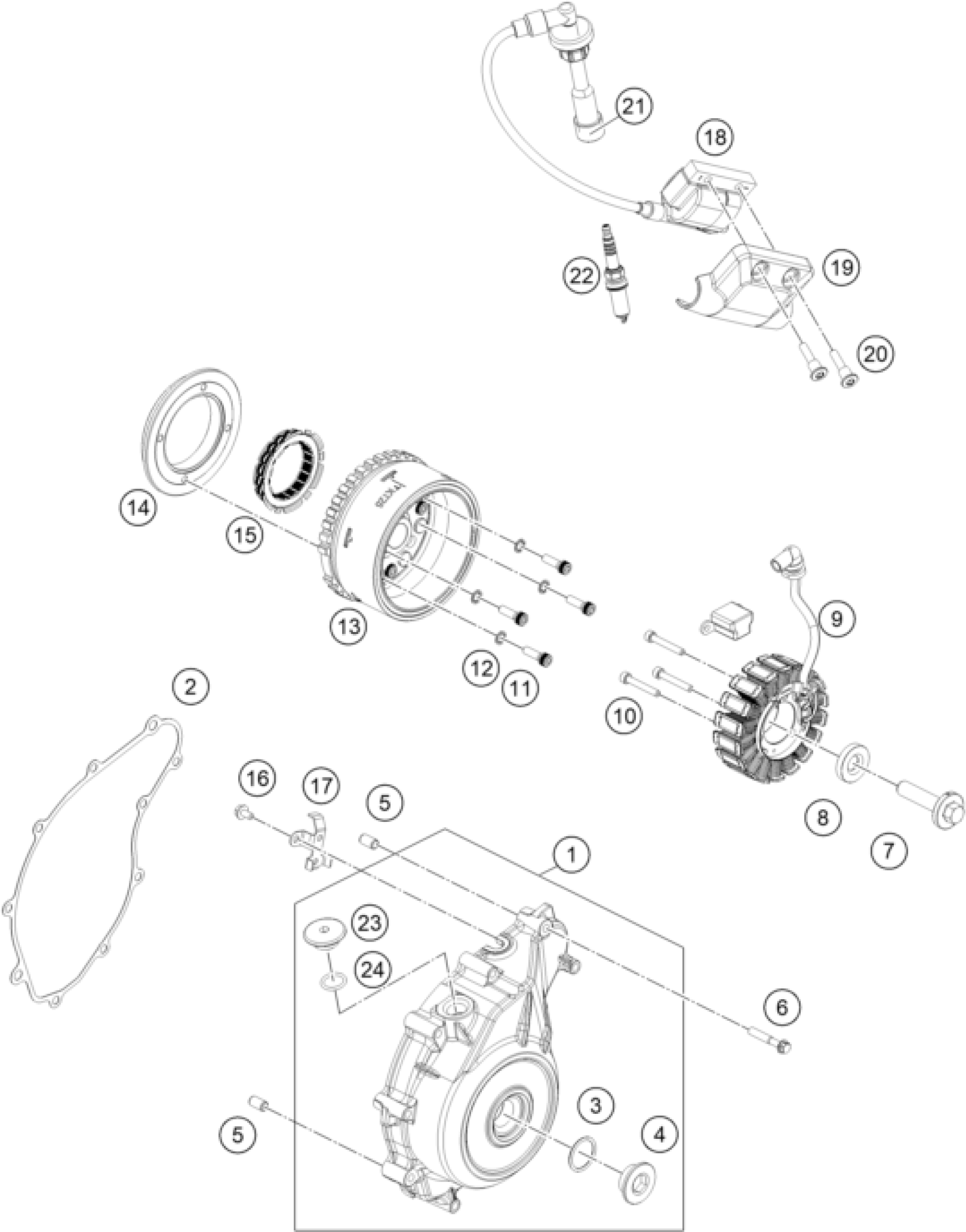

KTM 125 DUKE, blue 2025 IGNITION SYSTEM Diagram

#

Description

Price

1

Ignition cover cmpl.

96230002133C1

Unavailable

2

gasket cover magneto

96230040000

$4.48

3

O-RING 24X2,5

J770024015

$3.08

4

PLUG SCREW M24X1,5

90230094000

$2.05

5

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

6

HH COLLAR SCREW M6X45

J025060451

$1.49

7

BOLT ASSEMBLY

J900001205000

$7.00

8

WASHER PLAIN-ID 12.3XOD 31XT 6

J690001260000

$1.86

9

STATOR ASSEMBLY

96039004000

Unavailable

10

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.49

11

SOCKET HEAD SCREW M6X20

90130001001

$1.49

12

TOOTHED WASHER M6

J797060003

$1.49

13

Rotor cmpl.

94339005033

$96.48

14

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

15

FREEWHEEL CLUTCH

90140026000

$97.42

16

BOLT FLANGED M5X0.8

J900000501004

Unavailable

17

bracket cable stator

96230062000

$1.49

18

Stick coil

96239006000

Unavailable

19

COVER COIL IGNITION

96339006050

$1.49

20

SCREW SOCKET STEP M6X1

J900000603400

$1.49

21

Spark plug connector

96239090001

Unavailable

22

plug spark

96239093000

$28.23

23

Screw plug, OT marking

93839010100

$1.49

24

O-RING 15,8X2,4

J770015824

$1.49
