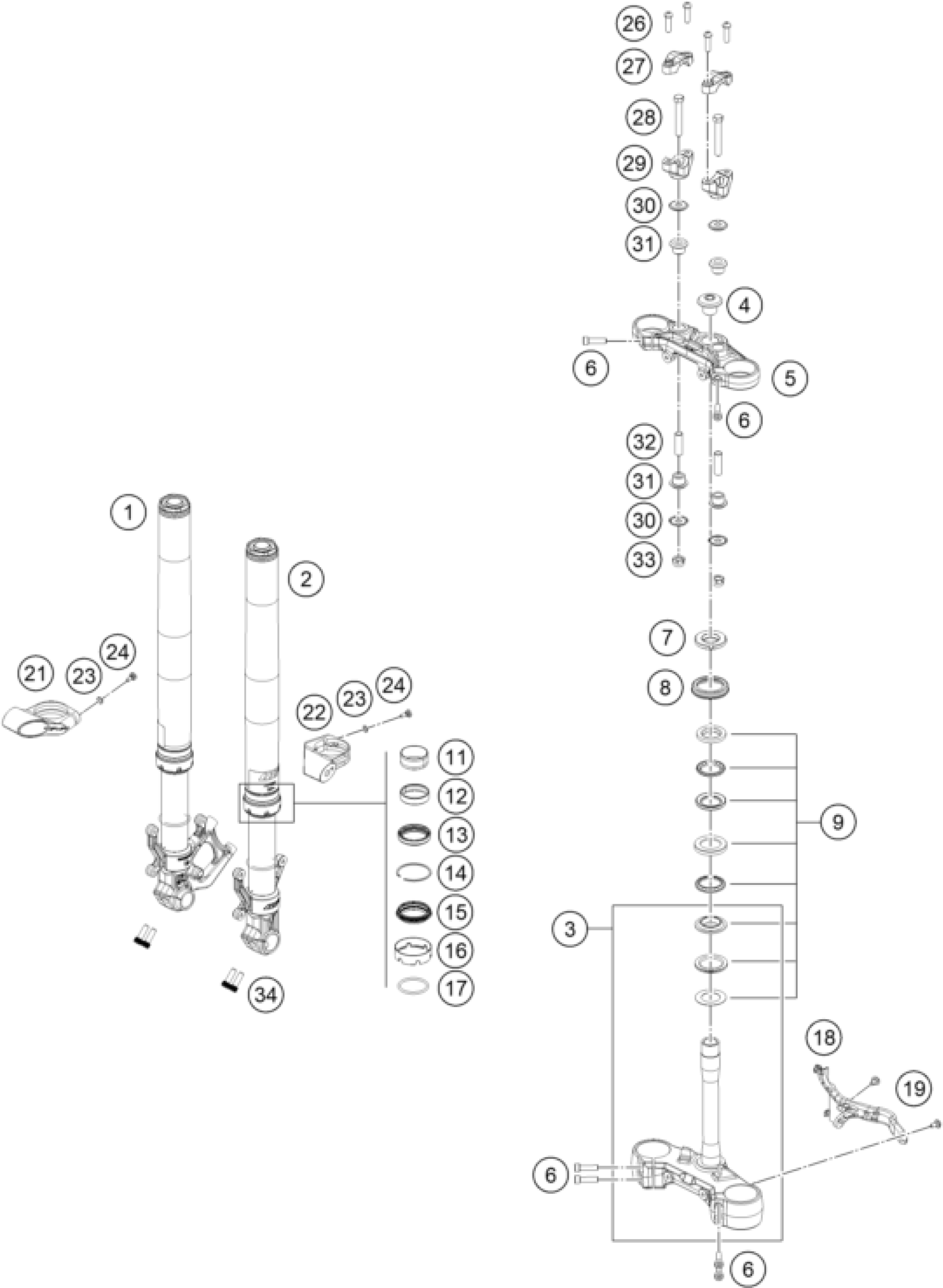

KTM 125 DUKE, blue 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork leg right

96001002000

Unavailable

2

Fork leg left

96001001000

Unavailable

3

BRACKET ASSEMBLY UNDER

96301031032C1

Unavailable

4

screw socket M22x1.5

J900002202000

Unavailable

5

BRACKET UPPER JP151052 BLCK MT

96301034032C1

Unavailable

6

AH SCREW M8X1.25X30

90501045000

$1.49

7

Adjusting ring steering head

90101036100

$5.23

8

protection cap

90101086000

$3.08

9

STEERING HEAD BEARING-KIT

90101080044

$33.65

11

GUIDE BUSH UPPER

43578016

$16.35

12

GUIDE BUSH LOWER

43578014

$16.45

13

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

14

CIRCLIP

43578044

$4.11

15

Dirt scarper SKF 43mm red

43570723

Unavailable

16

Fork protection ring d43

43578206

$2.05

17

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

18

Brake hose guide

96313025000

Unavailable

19

Screw M6X1X9

93008020060

$2.05

21

indicator holder front right

96314033000

Unavailable

22

indicator holder front left

96314034000

Unavailable

23

WASHER PLAIN-ID7.5XOD11.5XT1XB

J125070002

Unavailable

24

screw button head step M5x0.8

J900000501500

Unavailable

26

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

27

HANDLE HOLDR UPPR JG151043 PC

95801038000C1

Unavailable

28

Hexagon screw M10x1.25x70

J900001007000

Unavailable

29

HB HOLDR DUKE JP151073 BLK MT

96301039000C1

Unavailable

30

WASHER 10,5X32X2

90101042000

$1.49

31

RUBBER BUSHING

90101040000

$2.05

32

SPACER TUBE

90101041000

$4.11

33

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

34

bolt socket M8x1.25

J900000802503

Unavailable
