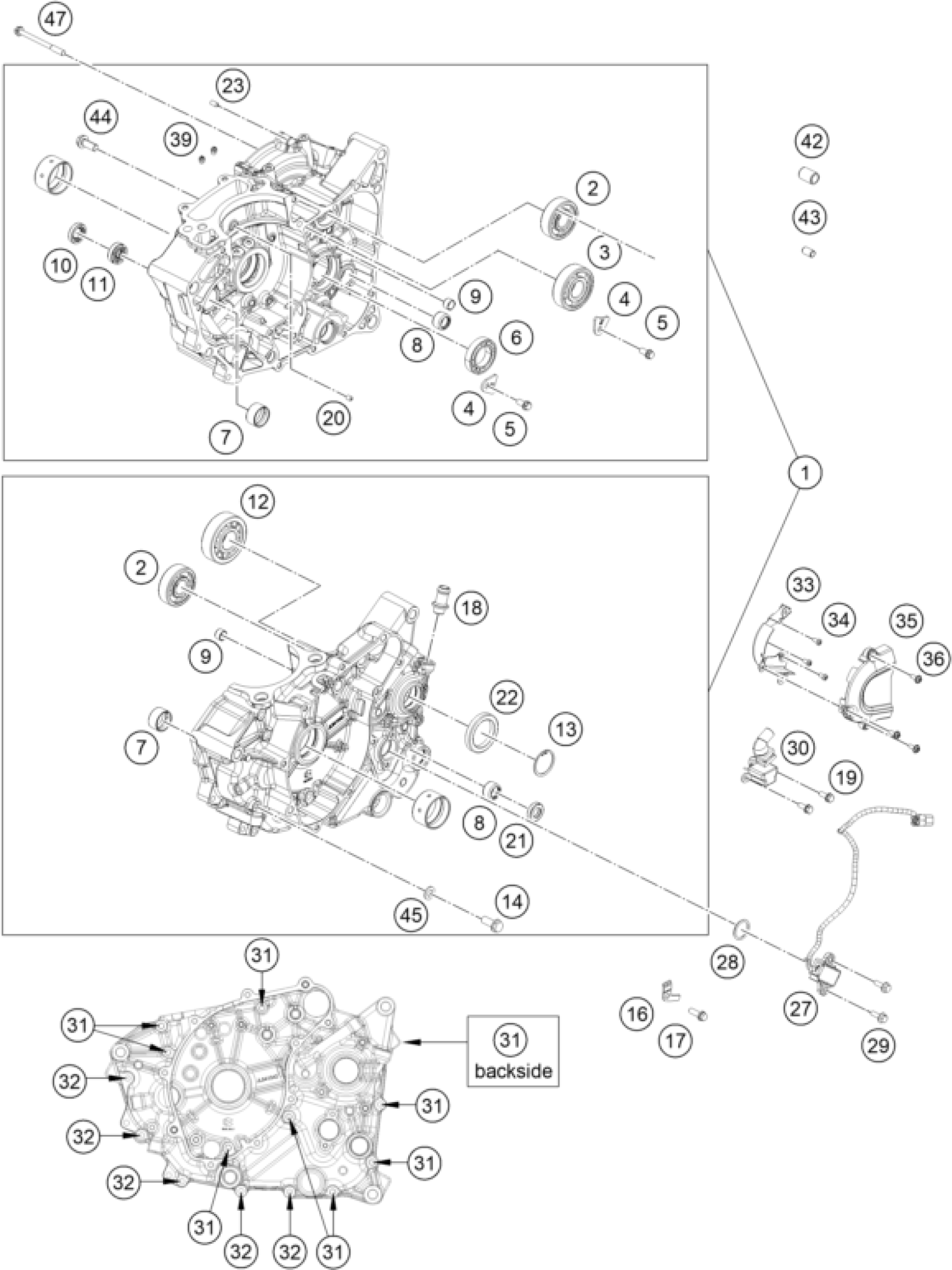

KTM 125 DUKE, blue 2025 ENGINE CASE Diagram

#

Description

Price

1

Crankcase CPL

9623000004424

Unavailable

2

BALL BEARING 15X35X11-C3-1

J625062122

Unavailable

3

bearing ball-id 20xod 47xthk 1

J410002001400

Unavailable

4

STOPPER BALANCER SHAFT BEARING

90230079000

Unavailable

5

Hex collar screw, M6x12

J01665060123S

Unavailable

6

Bearing ball

90130004004

Unavailable

7

bush bimetallic

J440002201300

Unavailable

8

NEEDLE ROLLER BEARING HK1312

J618131912

Unavailable

9

BUSH SHIFT RAIL

90234030000

Unavailable

10

SHAFT SEALING RING 12X24X5,5

J760122455

Unavailable

11

Shaft seal ring 12x24x6

0760122406

Unavailable

12

BALL BEARING 6204-Z/HN3

J625062041

Unavailable

13

CIRCLIP INTERNAL

J710003012001

Unavailable

14

Hex collar screw M6X10

J025060104

Unavailable

16

BRACKET F. FREE WHEEL GEAR

90140020002

Unavailable

17

Hex collar screw M6X14

J025060141

Unavailable

18

Pipe breather

90230022000

Unavailable

19

BOLT FLANGED M5X0.8

J900000501604

Unavailable

20

OIL NOZZLE

90238029003

Unavailable

21

Seal - oil

90130003004

Unavailable

22

Seal Oil

J790001903000

Unavailable

23

OIL NOZZLE

90230066300

Unavailable

27

sensor indicator gear

96211023100

Unavailable

28

O RING

J770002024001

Unavailable

29

FLANGED BOLT M5X16

J025050163S

Unavailable

30

Crankshaft position sensor

96239034000

Unavailable

31

bolt flanged M6x1

J900000607001

Unavailable

32

FLANGED BOLT M6X35 WS8

J025060350

Unavailable

33

GUARD CHAIN

96204060000

Unavailable

34

SCREW PAN CROSS M6X12 PH SS

J005060123S

Unavailable

35

COVER REAR LH

96203096000

Unavailable

36

SCREW SOCKET M6X1

J900000601607

Unavailable

39

OIL NOZZLE

90130164000

Unavailable

42

DOWEL D14

90130003007

Unavailable

43

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

44

FLANGED BOLT M8X20

J011080203S

Unavailable

45

COPPER GASKET

J603061001

Unavailable

47

bolt flanged M6x1

J900000608500

Unavailable
