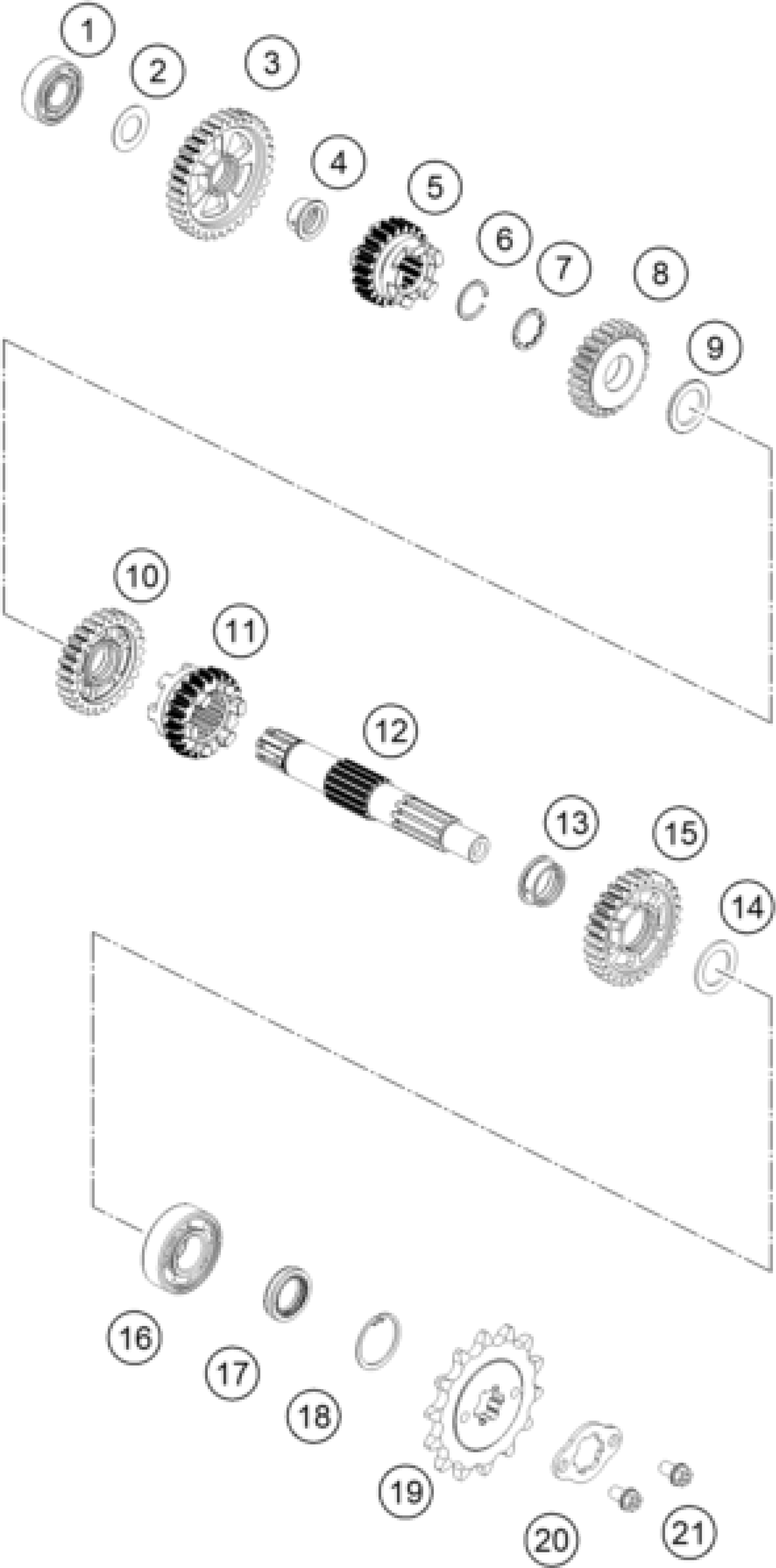

KTM 125 DUKE, blue 2024 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

BALL BEARING 15X35X11-C3-1

J625062122

Unavailable

2

Washer 15X26X0,8

J125150006

Unavailable

3

gear first driven

96233011000

Unavailable

4

bush first driven

96233001001

Unavailable

5

gear sixth driven

96233016000

Unavailable

6

CIRCLIP 20X1,2

J471020122

Unavailable

7

Profile disc 17.5x1.3

J690001813000

Unavailable

8

gear fourth driven

96233014000

Unavailable

9

THRUST WASHER

90633001007

Unavailable

10

gear third driven

96233013000

Unavailable

11

gear fifth driven

96233015000

Unavailable

12

shaft assembly output

96233010033

Unavailable

13

bush second driven

96233012001

Unavailable

14

Washer plain

J690002000201

Unavailable

15

gear second driven

96233012000

Unavailable

16

BALL BEARING 6204-Z/HN3

J625062041

Unavailable

17

Seal Oil

J790001903000

Unavailable

18

Lock ring for hubs

J710003012000

Unavailable

19

SPROCKET

96233029014

Unavailable

20

plate drive sprocket

90110049000

Unavailable

21

BOLT M6X10

90110057000

Unavailable
