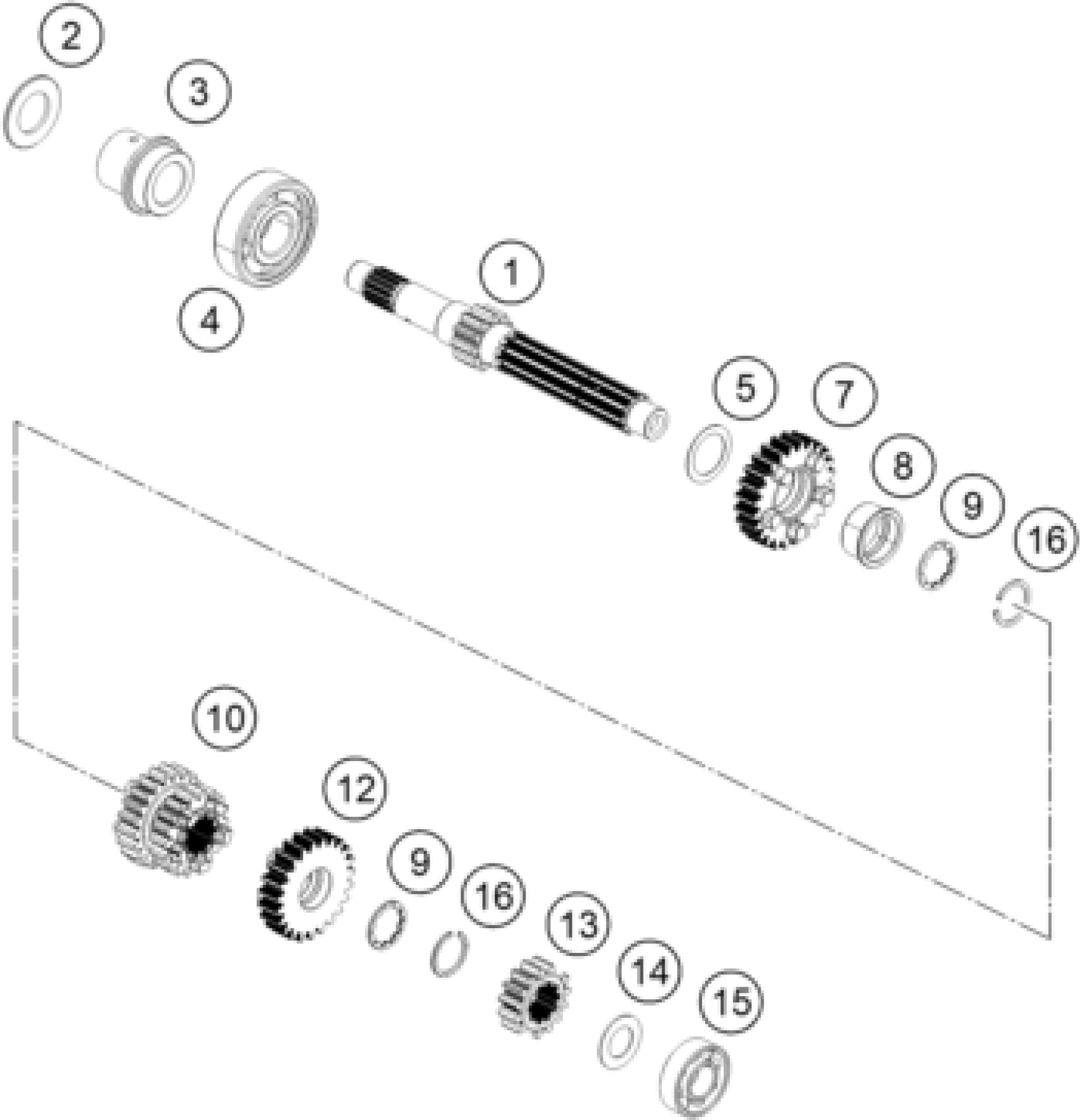

KTM 125 DUKE, blue 2024 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

shaft input

96233001000

Unavailable

5

Washer

J690002000100

Unavailable

8

bush sixth drive

96233006001

Unavailable

7

gear sixth drive

96233006000

Unavailable

9

Profile disc 17.5x1.3

J690001813000

Unavailable

16

CIRCLIP 20X1,2

J471020122

Unavailable

10

gear third-fourth drive

96233003000

Unavailable

12

gear fifth drive

96233005000

Unavailable

13

gear second drive

96233002000

Unavailable

14

WASHER TRUST 2ND DRIVE

90233036000

Unavailable

4

bearing ball-id 20xod 47xthk 1

J410002001400

Unavailable

3

bush

J440001702900

Unavailable

2

STOP DISK

90132020000

Unavailable

15

BALL BEARING 15X35X11-C3-1

J625062122

Unavailable
