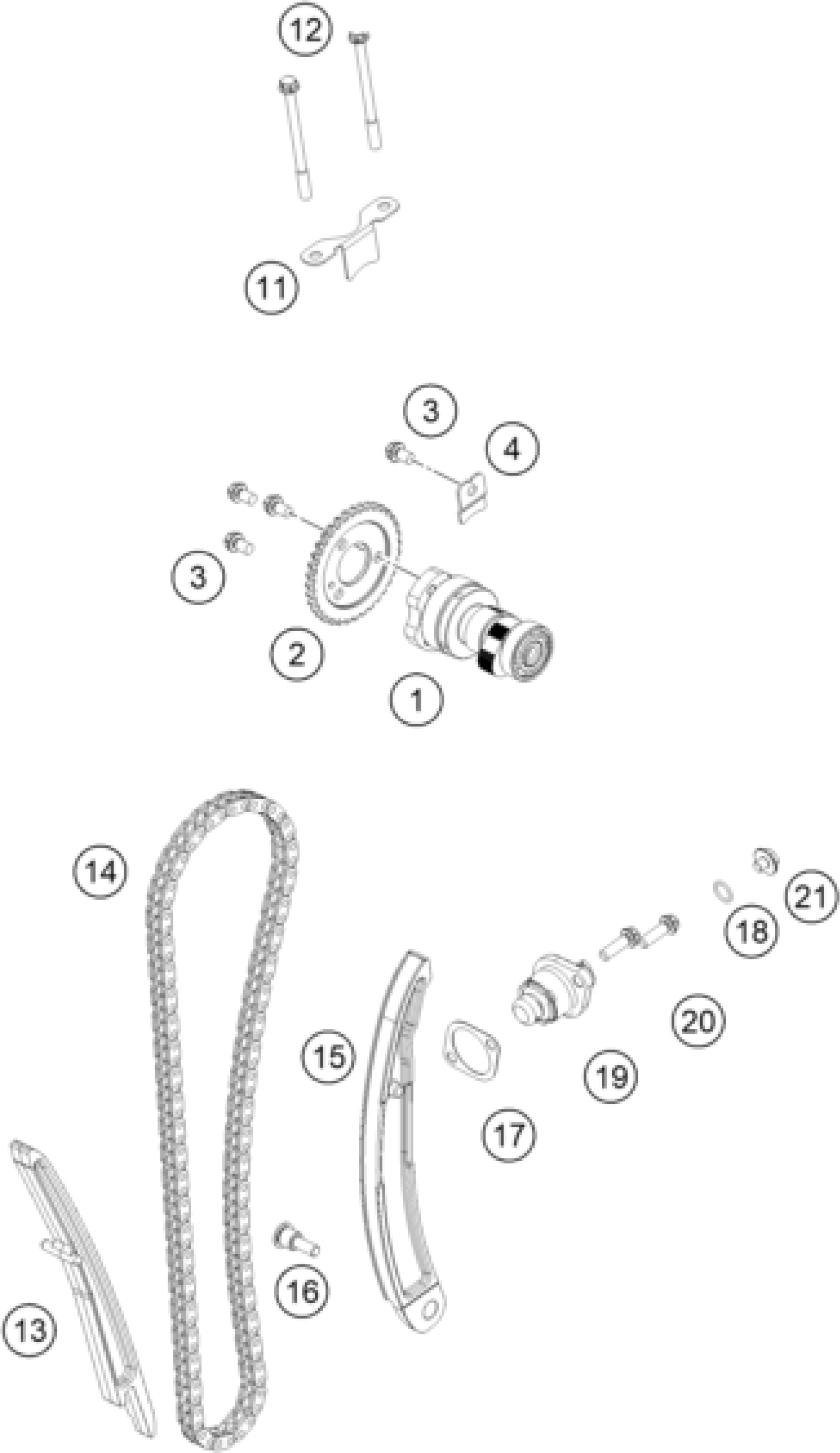

KTM 125 DUKE, blue 2024 TIMING DRIVE Diagram

#

Description

Price

1

camshaft assembly

96036009033

Unavailable

2

sprocket camshaft

96236011000

Unavailable

3

BOLT M6X10

90110057000

Unavailable

4

plate stopper bearing

96036020050

Unavailable

11

plate breather

96036052020

Unavailable

12

bolt flanged step M6x1

J900000607600

Unavailable

13

guide chain tight side

96036001000

Unavailable

14

Chain

96036013000

Unavailable

15

guide chain slack side

96036002000

Unavailable

16

SPECIAL SCREW 6X14,9

90130004007

Unavailable

17

GASKET CHAIN ADJUSTER

90136003003

Unavailable

18

O-RING 10,15X1,5

J770010015

Unavailable

19

tensioner chain

9633600304424

Unavailable

20

Hex collar screw M6X20

J025060204

Unavailable

21

SPECIAL SCREW 6X6

90136003002

Unavailable
