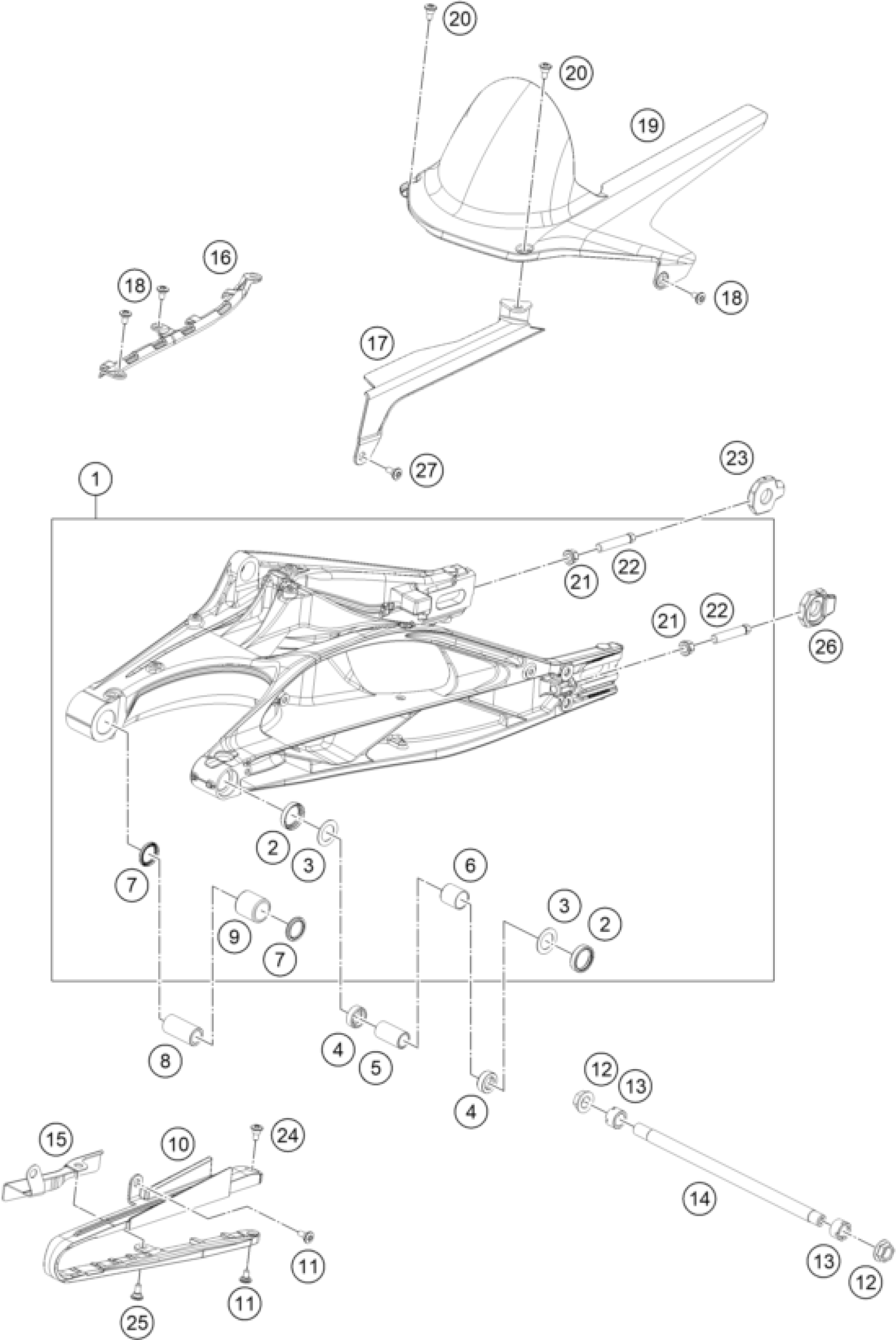

KTM 125 DUKE, blue 2024 SWING ARM Diagram

#

Description

Price

1

KIT SWING ARM ASSLY D-390 EL O

96304030000C1

Unavailable

2

OIL SEAL RING 25X32X7

90104034001

$3.08

3

Thrust washer 22.2x31.7x1

90104036000

$1.49

4

cup for radial shaft seal

90104034000

$4.11

5

sleeve bushing 15.1x20x38

90104032000

$6.63

6

BUSH

96304031000

Unavailable

7

Seal oil

96304034001

Unavailable

8

swingarm bush

96304032000

Unavailable

9

swingarm needle bearing

96304033000

Unavailable

10

SLIDER CHAIN

96304066000

Unavailable

11

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

12

nut swingarm axle

J910001401000

Unavailable

13

swingarm adjusting ring

90104046000

$5.88

14

Swingarm axle

96304037000

Unavailable

15

SHIELD SLIDER CHAIN

96304066010

Unavailable

16

GUIDE CABLE

96313026000

Unavailable

17

COVER CHAIN OUTER

96304060000

Unavailable

18

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

19

COVER CHAIN

96304050000

Unavailable

20

special screw M6x15-8.8-hexago

J900000600904

Unavailable

21

flanged hex nut M10x1.25 WS13

90104010002

$2.05

22

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

23

chain tensioner right

96310084000

Unavailable

24

special screw M6x15-8.8-hexago

J900000600904

Unavailable

25

SCREW SOCKET STEP M6X1

J900000601502

Unavailable

26

chain tensioner left

96310083000

Unavailable

27

SCREW SOCKET STEP M6X1

J900000601502

Unavailable
