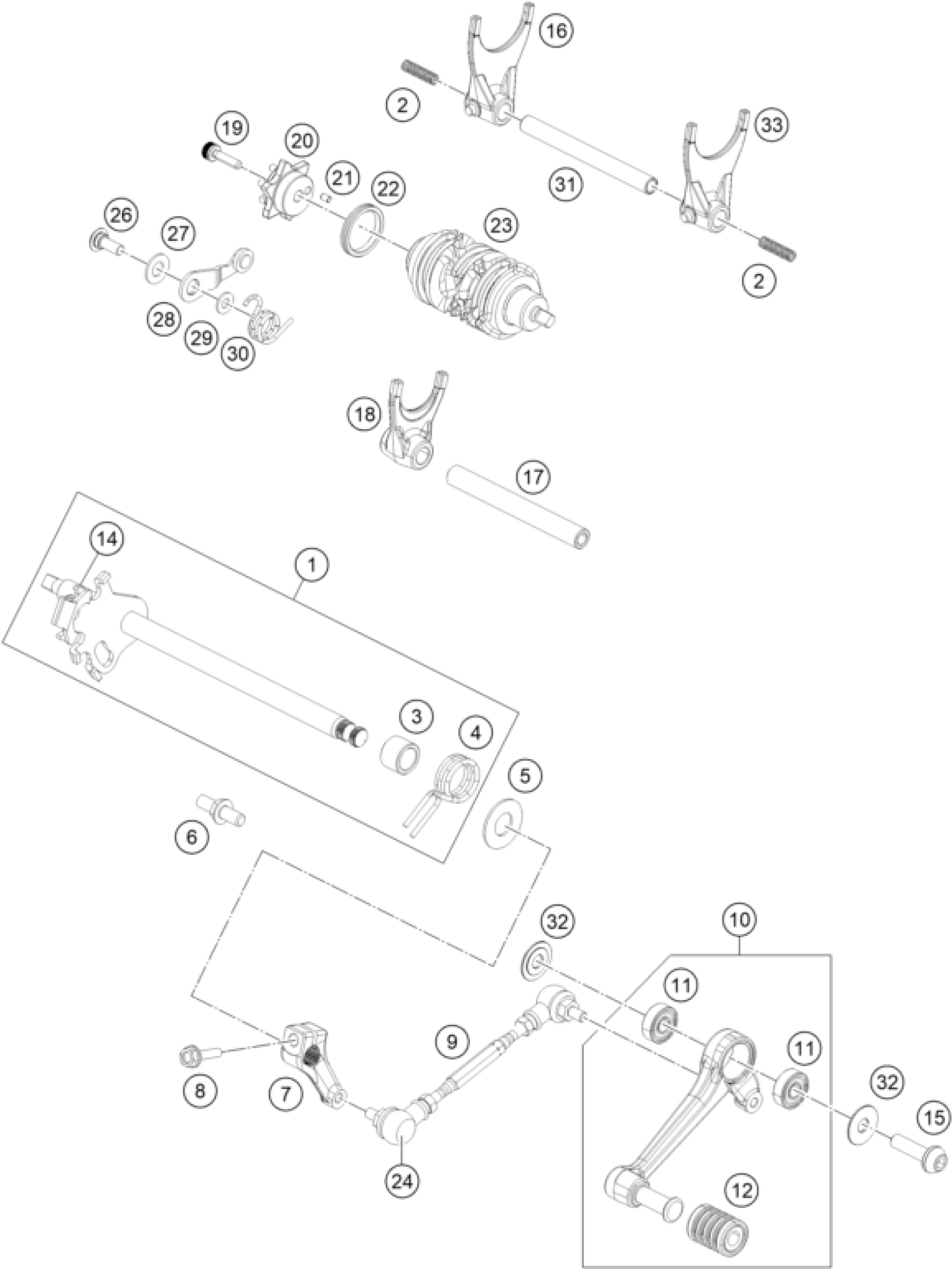

KTM 125 DUKE, blue 2024 SHIFTING MECHANISM Diagram

#

Description

Price

1

assembly lever gear shift

96234005033

Unavailable

3

Bush

J440001301500

Unavailable

4

spring torsion

96034014000

Unavailable

14

Spring Tension

J520000700100

Unavailable

23

drum gear shift

96234012000

Unavailable

20

guide gear shift

96034015000

Unavailable

21

Cylinder pin 4x8

J940000400800

Unavailable

22

SPACER

90134012002

Unavailable

19

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

17

SHIFT RAIL

90234019000

Unavailable

18

fork gear shift input

96234001000

Unavailable

31

Gear shift rail

93834020000

Unavailable

16

fork gear shift output 1

96234001001

Unavailable

33

fork gear shift output 2

96234001002

Unavailable

2

SPRING SHIFT RAIL

90234039000

Unavailable

28

stopper assembly drum

96234013033

Unavailable

27

washer plain-id10xod18.5xthk1.

J690001013500

Unavailable

26

bolt socket-M6x1xl 14xprecoat

J900000601804

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

spring torsion

96034023000

Unavailable

5

washer plain-id 13xod 28xthk 1

J690001315000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

10

gear lever assembly

96334031033

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

GEAR SHIFT LEVER RUBBER

90134035000

Unavailable

7

linkage gear shift lever

96034031010

Unavailable

9

ROD ASSEMBLY TIE

96334036133

Unavailable

8

BOLT FLANGED M6X1

J900000602200

Unavailable

24

cover dust tie rod

93003044000

Unavailable

32

WASHER SHIFTING LEVER

90534031020

Unavailable

15

BOLT SHIFT LEVER

90534034300

Unavailable
