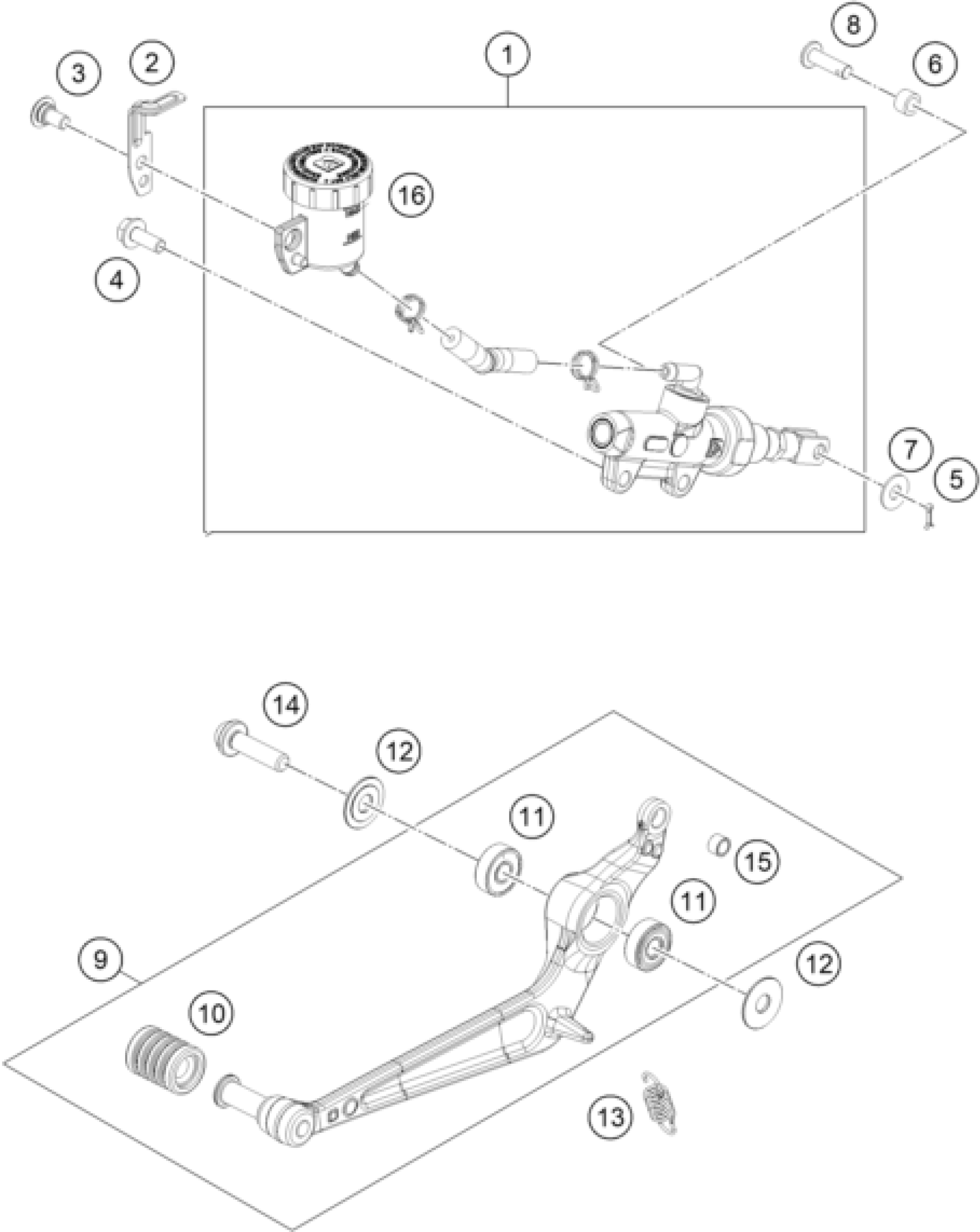

KTM 125 DUKE, blue 2024 REAR BRAKE CONTROL Diagram

#

Description

Price

1

Rear Master Cylinder Assembly

96313060033

Unavailable

2

Retaining bracket brake reserv

96313068000

Unavailable

3

BOLT SOCKET STEP M6X1

J900000601403

Unavailable

4

HH COLLAR SCREW M6X16

90130059000

Unavailable

5

splint pin 2x15mm

J094020153

Unavailable

6

grommet

J650001000700

Unavailable

7

Washer nylon 6.5X16X1

J125070001

Unavailable

8

pin clevis dia 6

J920000602100

Unavailable

9

Lever Assembly Brake

96313050033

Unavailable

10

GEAR SHIFT LEVER RUBBER

90134035000

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

WASHER SHIFTING LEVER

90534031020

Unavailable

14

BOLT SHIFT LEVER

90534034300

Unavailable

15

Spacer bushing

93035065020

Unavailable

13

Spring

J520000900100

Unavailable

16

Kit Rear Reservoir

96313029005

Unavailable
