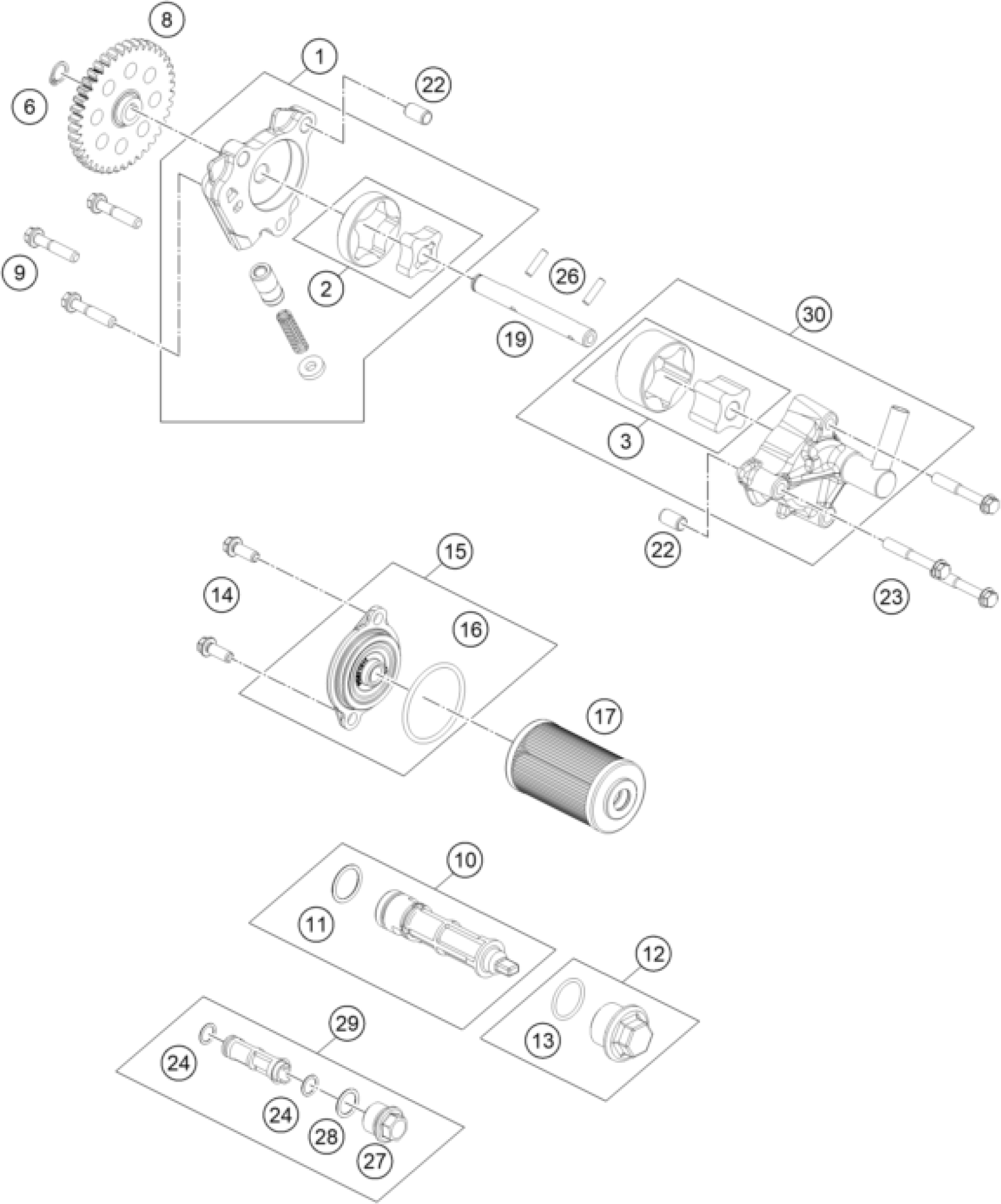

KTM 125 DUKE, blue 2024 LUBRICATING SYSTEM Diagram

#

Description

Price

29

MESH STRAINER CPL.

90238016044

$13.46

24

O-RING 9X1,5

J7700090151

$2.05

27

CAP STRAINER

90238017000

$5.98

28

O-RING 12,5X2

J770012520

$2.05

10

MESH STRAINER CPL.

90238015033

$6.72

11

O-RING 17,7X2,1 MM

J770017721

$1.49

12

CLOSURE CAP OIL SCREEN

90138015050

$4.11

13

O-RING

90138015052

$2.05

17

OIL FILTER

90138015000

$9.81

15

CAP FILTER OIL KT23,KT25 (PD57

9623800603324

Unavailable

16

Ring O

J770004126200

$1.49

14

BOLT FLANGED M6X16

J025060166

$1.49

1

Pump Oil

96238007033

$19.53

26

PARALLEL PIN

90238003000

$1.49

19

shaft pump oil

96238002000

$6.54

8

Gear Pump Oil Drive

96038001000

$4.76

6

Seeger ring 10X1,0

J471010100

$1.49

22

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

9

HH COLLAR SCREW M6X30 WS8

J028060303S

$1.49

2

KT26 Oil Pump Inner/Outer asse

96338011000

Unavailable

3

KT26 Evacuation Inner/Outer as

96338009000

Unavailable

30

Pump Evacuation

96238008044

$23.74

23

HH COLLAR SCREW M6X40

J025060401

$1.49
