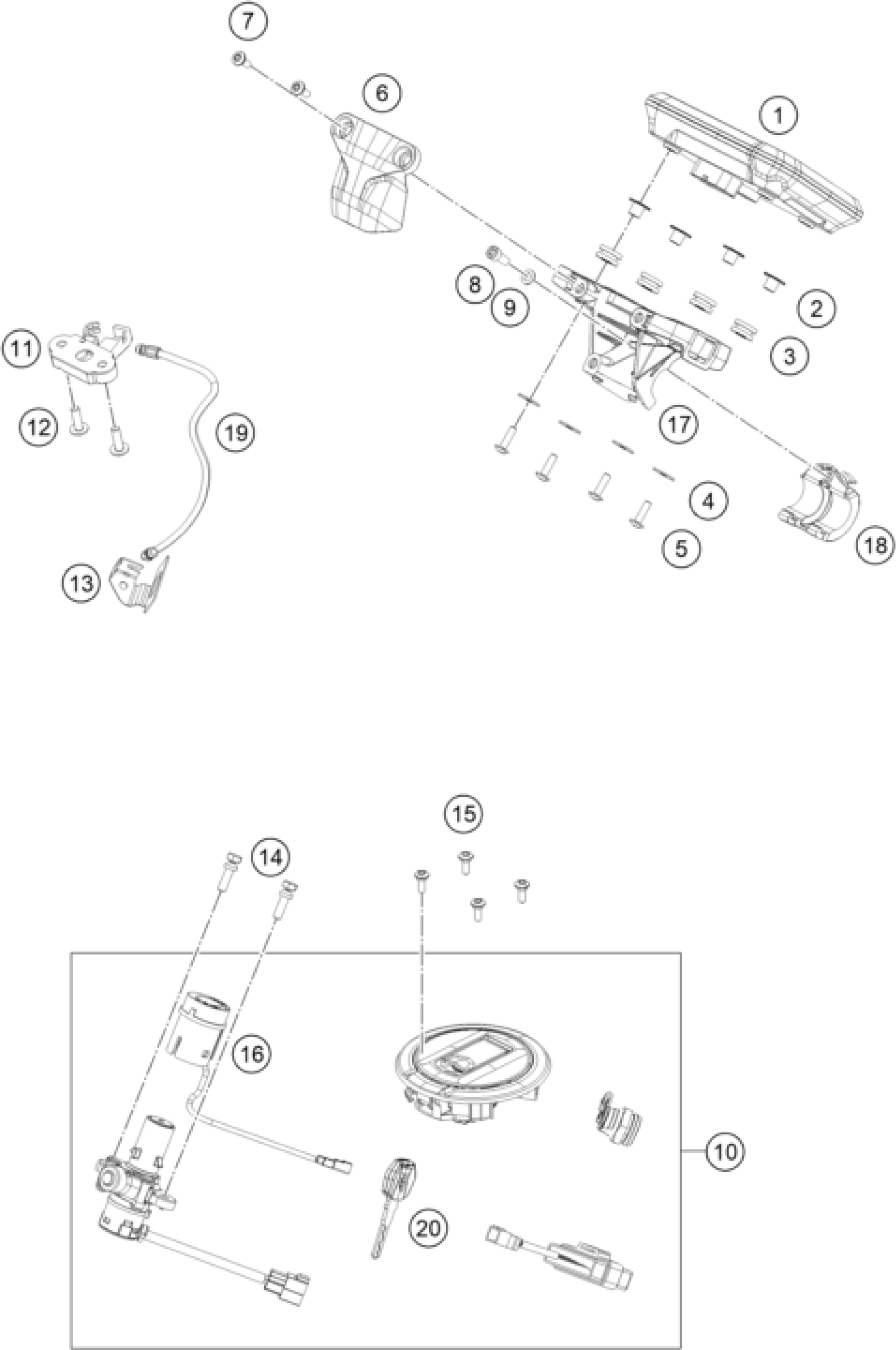

KTM 125 DUKE, blue 2024 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

SPEEDOMETER

96314069000

Unavailable

3

RUBBER SLEEVE

90507040001

$1.49

2

Collar TFT speedo small

93014062010

$2.05

4

Washer, license plate holder s

93308015010

$1.49

5

Roundhead screw M5X18

J031060183

$1.49

17

holder speedometer lower

96314060000

Unavailable

18

holder speedometer upper

96314060010

Unavailable

9

WASHER PLAIN SMALL-6.5X11.5XT0

J690000600100

$1.49

8

ISK-Schraube M6x16

J900000601603

Unavailable

6

instruments cover

96014061000

Unavailable

7

screw button head step M5x0.8

J900000501204

Unavailable

15

Linsenkopf-Schraube M5x14

J900000501404

Unavailable

14

bolt shear M6x1

J9000006020U0

Unavailable

10

lock set

96311066044

Unavailable

13

seat lock bracket

96307051000

Unavailable

11

LOCK ASSY. SEAT

90507050000

Unavailable

19

cable latch seat

94507050190

Unavailable

12

AH SCREW M6X1X20

90508006003

$4.11

20

KTM Blank key

96312026000

Unavailable

16

ANTENNA

64111066020

Unavailable

20

KTM CUT Key

96312026010

Unavailable
