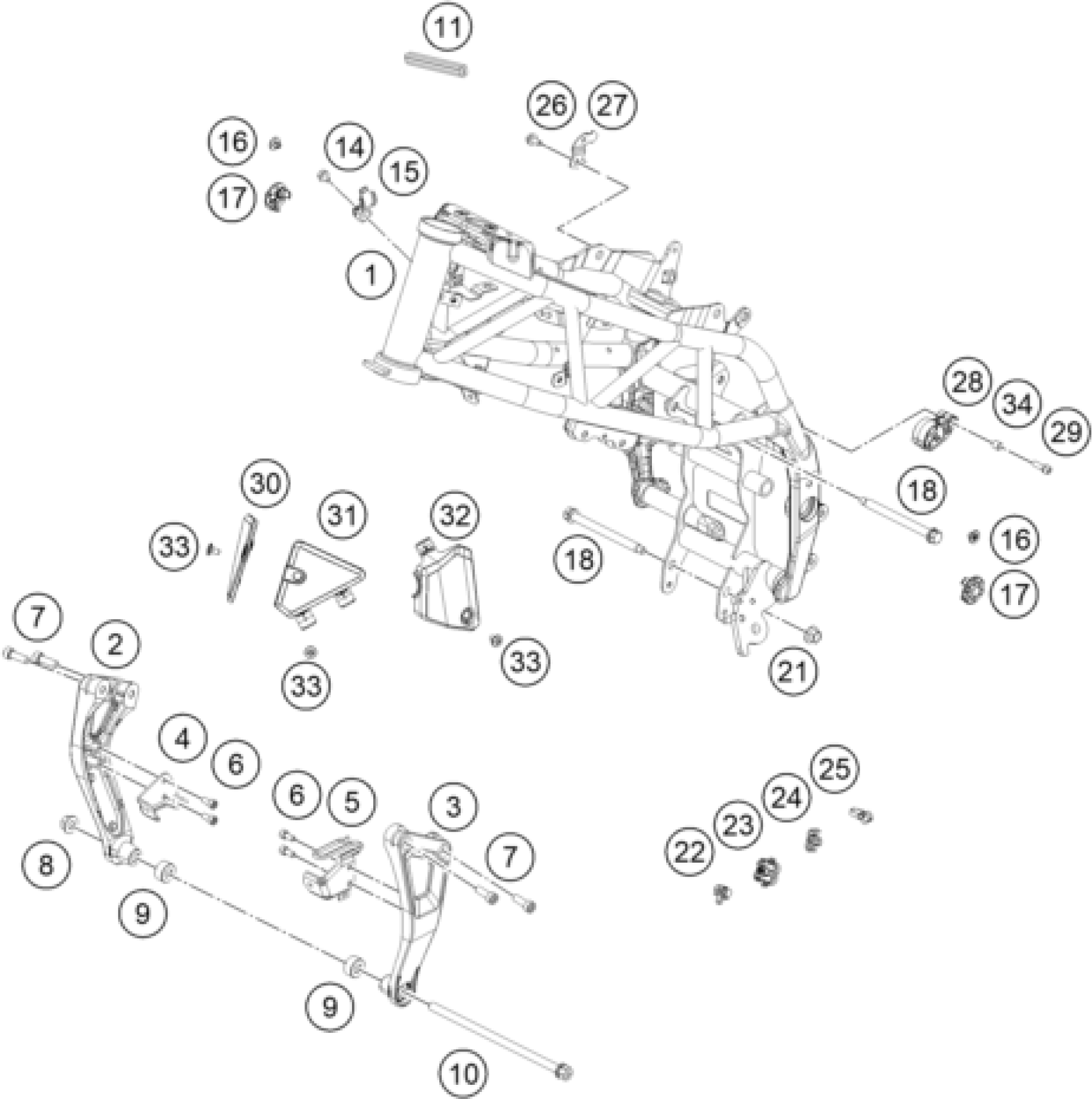

KTM 125 DUKE, blue 2024 FRAME Diagram

#

Description

Price

1

FRAME ASLY FRONT JP111113 BLAC

96303001000C1

Unavailable

2

ENGINE HANGER RH JP113410 BLK

96303006000C1

Unavailable

3

ENGINE HANGER LH JP113409 BLK

96303005000C1

Unavailable

4

Radiator bracket right

96335001011

Unavailable

5

Radiator bracket left

96335001010

Unavailable

6

Hexagon socket screw, M6X14

J912060146

Unavailable

7

bolt socket M8x1.25

J900000802503

Unavailable

8

nut hex flanged M10x1.25

J910001001001

Unavailable

9

Spacer

J800001001200

Unavailable

10

bolt flanged M10x224

J900001022400

Unavailable

14

bolt flanged M6x1

J900000600802

Unavailable

15

hose bracket

96303099000

Unavailable

16

Clip

90108023100

$1.49

17

Plug

96303088000

Unavailable

18

bolt flanged M10x112

J900001011000

Unavailable

21

NUT-U-M10X1,25XA/F 17

90803009000

Unavailable

22

plastic cable clip 2x6,5

J340001000700

Unavailable

23

Hose guide

95813046000

$4.11

24

Brake hose bracket

94513026000

$2.05

25

Cable tie

93803001022

Unavailable

26

bolt flanged M6x12

J900000601205

Unavailable

27

BRACKET COVER SIDE RH

96303001030

Unavailable

28

GUARD CHAIN

96303070000

Unavailable

29

screw button head M6x1

J900000602100

Unavailable

30

frame cover right front

96303083020

Unavailable

31

frame cover left front

96303083010

Unavailable

32

Frame cover left

96303083030

Unavailable

33

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

34

Sleeve

J800000601200

Unavailable

11

Beading

96303001020

Unavailable
