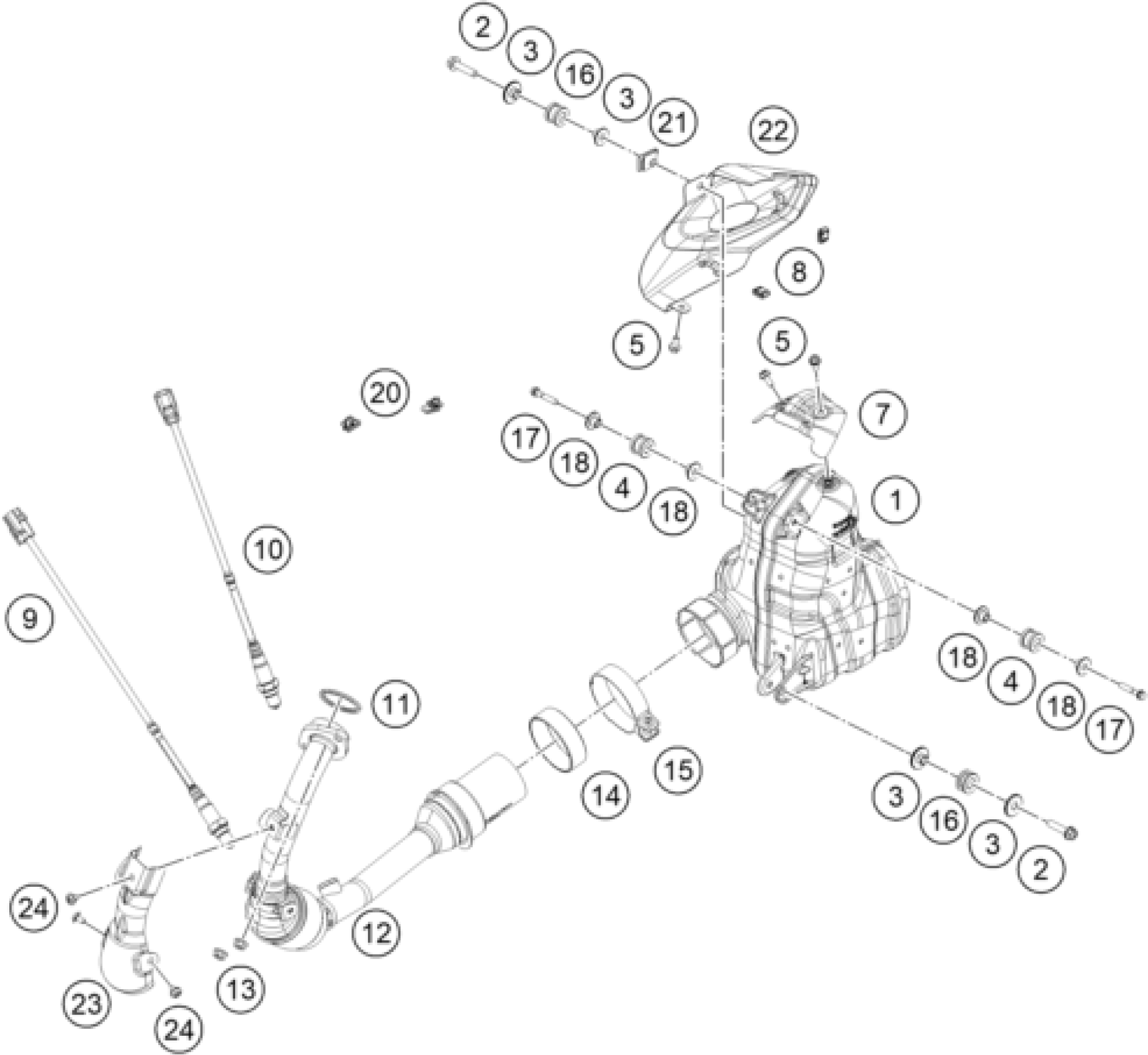

KTM 125 DUKE, blue 2024 EXHAUST SYSTEM Diagram

#

Description

Price

1

premuffler assembly

96305050000

Unavailable

2

BOLT FLANGED M8X35

J025080353

$1.49

3

COLLAR

J800000901001

Unavailable

4

damper, bottom

90205068000

$2.05

5

Hex collar screw M6X14

J025060147

Unavailable

7

SHIELD MUFFLER

96305090000

Unavailable

8

GROMMET MUFFLER SHIELD

93805011003

$1.49

9

Oxygen sensor

96341190000

Unavailable

10

Oxygen sensor

96341090000

Unavailable

11

GASKET EXHAUST

90105004100

$5.98

12

PIPE ASSEMBLY A

96005007000

Unavailable

13

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

14

GASKET EXHAUST

94305050172

$6.82

15

muffler clamp

96305051000

Unavailable

16

DAMPER MUFFLER

93805096000

$1.49

17

BOLT SILENCER MTG

90105000002

$1.49

18

muffler mounting spacer bushin

90205086001

$2.05

20

CLAMP

J340000600700

Unavailable

21

clip nut M8

96305097000

Unavailable

22

SHIELD ASSEMBLY MUFFLER

96305032033

Unavailable

23

SHIELD

96005011000

Unavailable

24

SCREW BUTTON HEAD M6X1

J900000601005

Unavailable
