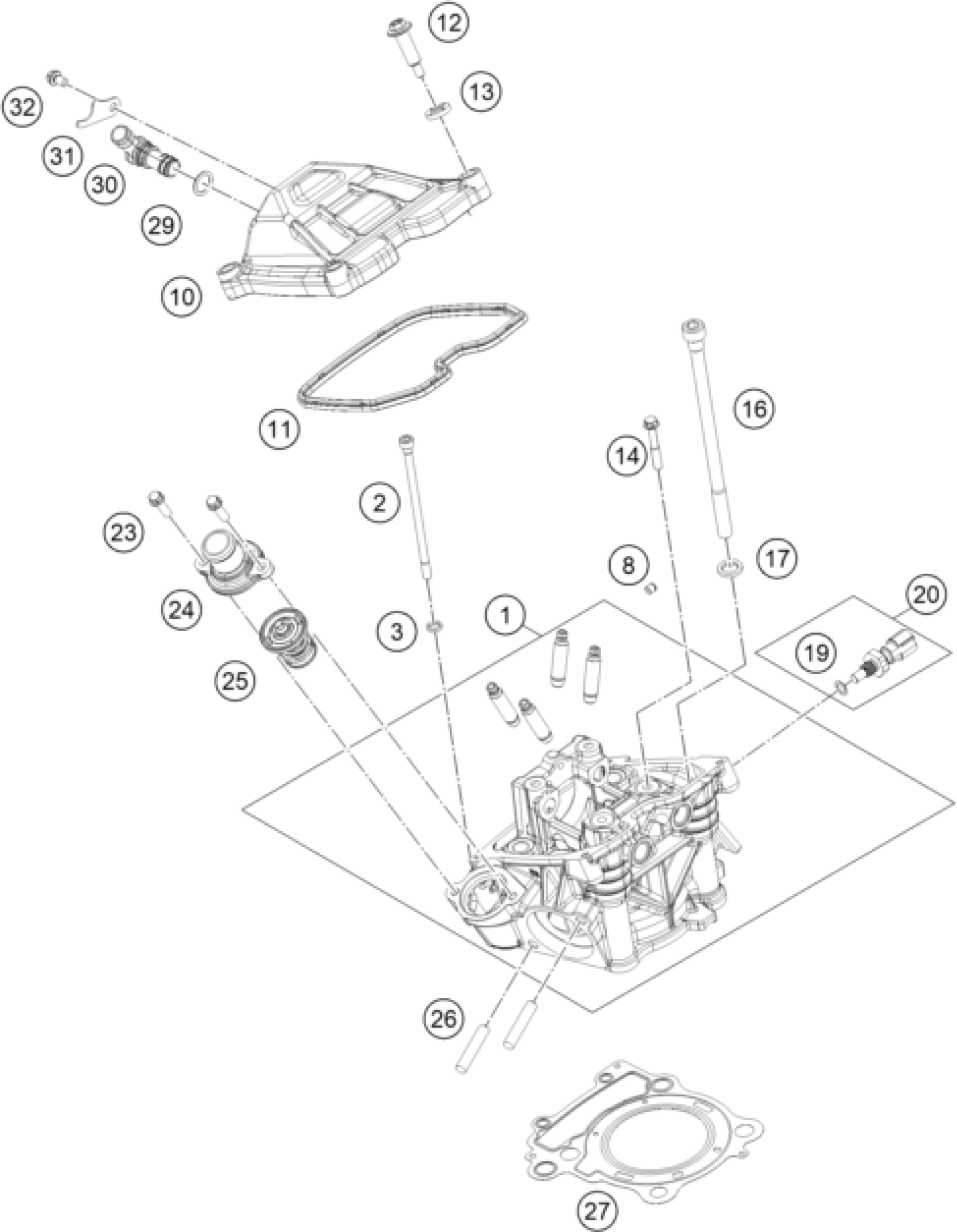

KTM 125 DUKE, blue 2024 CYLINDER HEAD Diagram

#

Description

Price

1

CYL HEAD COMPLETE (JP511029) -

9603602003324

Unavailable

3

WASHER 7X11X2

J125070003

Unavailable

10

COVER HEAD CYL HSQ125 JP511040

96036052000C1

Unavailable

11

gasket cover head cylinder

96036053000

Unavailable

12

bolt flanged step M6x1

J900000603800

Unavailable

13

Decoupling element

96236052010

Unavailable

19

O-ring 7.65x1.78

J770000817800

Unavailable

20

TEMPERATURE SENSOR

90135047000

Unavailable

23

Hex collar screw M6X20

J025060204

Unavailable

24

COVER THERMOSTAT KT23.25.26 (J

9623501900024

Unavailable

25

UNIT THERMOSTAT

96335017000

Unavailable

26

STUD M8

90136020001

Unavailable

27

gasket head cylinder

96030036000

Unavailable

29

O-ring 13.6x2.4

J770001424001

Unavailable

30

pipe breather

96230022000

Unavailable

31

PLATE STOPPER

96236052020

Unavailable

32

BOLT FLANGE SMALL-M6X1XL10XDAC

J900000601004

Unavailable

14

bolt

J025060304

Unavailable

2

SOCKET HEAD SCREW M6X102

J912061023

Unavailable

16

bolt socket M10x1.25

J900001017200

Unavailable

17

WASHER 11,2X18X2

J125110003

Unavailable

8

Jet

96230066100

Unavailable
