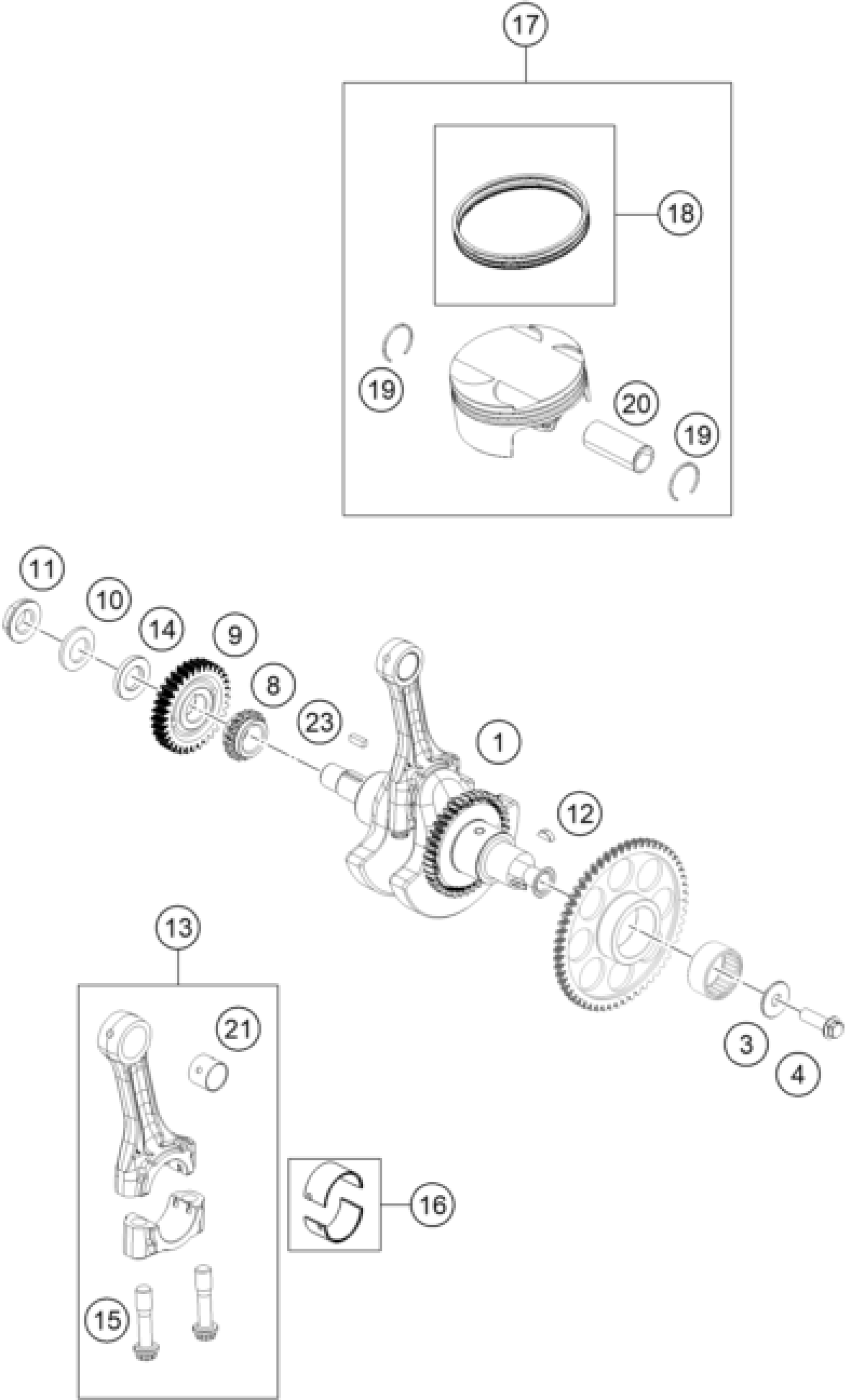

KTM 125 DUKE, blue 2024 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

assembly crankshaft

96030018033

Unavailable

3

WASHER PLAIN-ID 12.3XOD 31XT 6

J690001260000

Unavailable

4

BOLT ASSEMBLY

J900001205000

Unavailable

8

sprocket crankshaft

96236014000

Unavailable

9

gear primary drive

96232023030

Unavailable

10

SPECIAL WASHER

90236015001

Unavailable

11

NUT M16X1,5

90230029000

Unavailable

12

KEY WOODRUFF

J950001300400

Unavailable

13

conrod assembly

96030015033

Unavailable

14

WASHER PLAIN

90236015000

Unavailable

15

CONROD BOLT

90630015001

Unavailable

16

CON ROD BEARING SHELL

90130015010

Unavailable

16

CON ROD BEARING SHELL GREEN

90130015011

Unavailable

16

CON ROD BEARING SHELL BLUE

90130015012

Unavailable

17

piston assembly

96030007033

Unavailable

18

PISTON RING CPL.

90130030010

Unavailable

19

CIRCLIP

90130074000

Unavailable

20

PISTON BOLT

90130033000

Unavailable

21

Conrod bearing shell

93730014000

Unavailable

23

Woodruff key 4X4X12

J888040150

Unavailable
