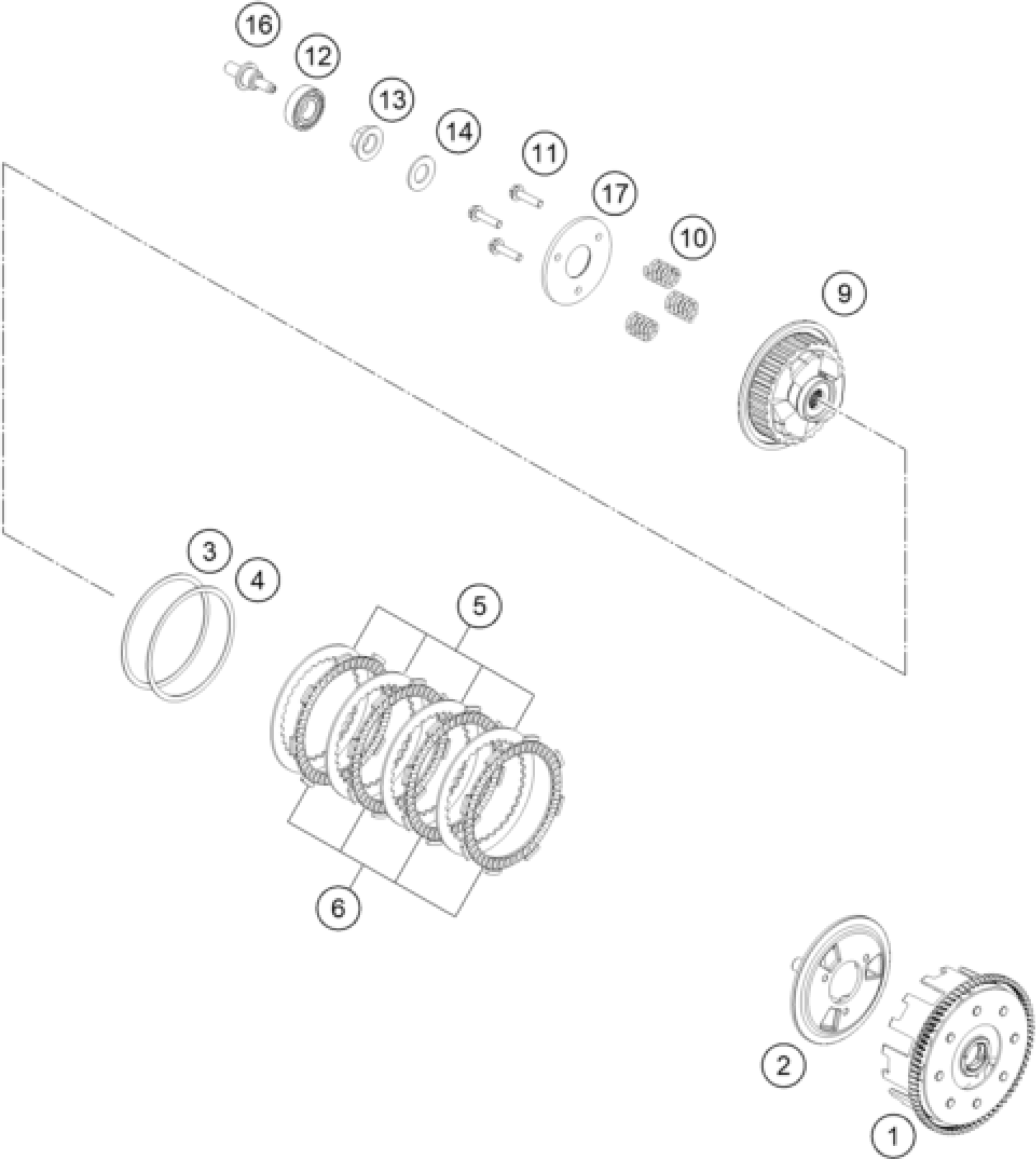

KTM 125 DUKE, blue 2024 CLUTCH Diagram

#

Description

Price

1

HOUSING ASSEMBLY CLUTCH

96032024033

Unavailable

12

Grooved ball bearing 6002

J410001500900

Unavailable

13

Collar nut M14x1 LH

J910001400900

Unavailable

14

BELLEVILLE SPRING

90632038000

Unavailable

16

ROD

96232057000

Unavailable

11

Bolt Flange, 6X25

96232006010

Unavailable

17

PLATE, CLUTCH LIFTER

96232006100

Unavailable

10

Spring, Clutch

96032005000

Unavailable

3

SEAT JUDDER SPRING

96232035100

Unavailable

4

SPRING, JUDDER

96232034100

Unavailable

6

KIT FRICTION PLATE 250

96232011044

Unavailable

9

Plate, clutch pressure

96032002100

Unavailable

2

center, clutch

96032003100

Unavailable

5

PLATE CLUTCH

96232010200

Unavailable
