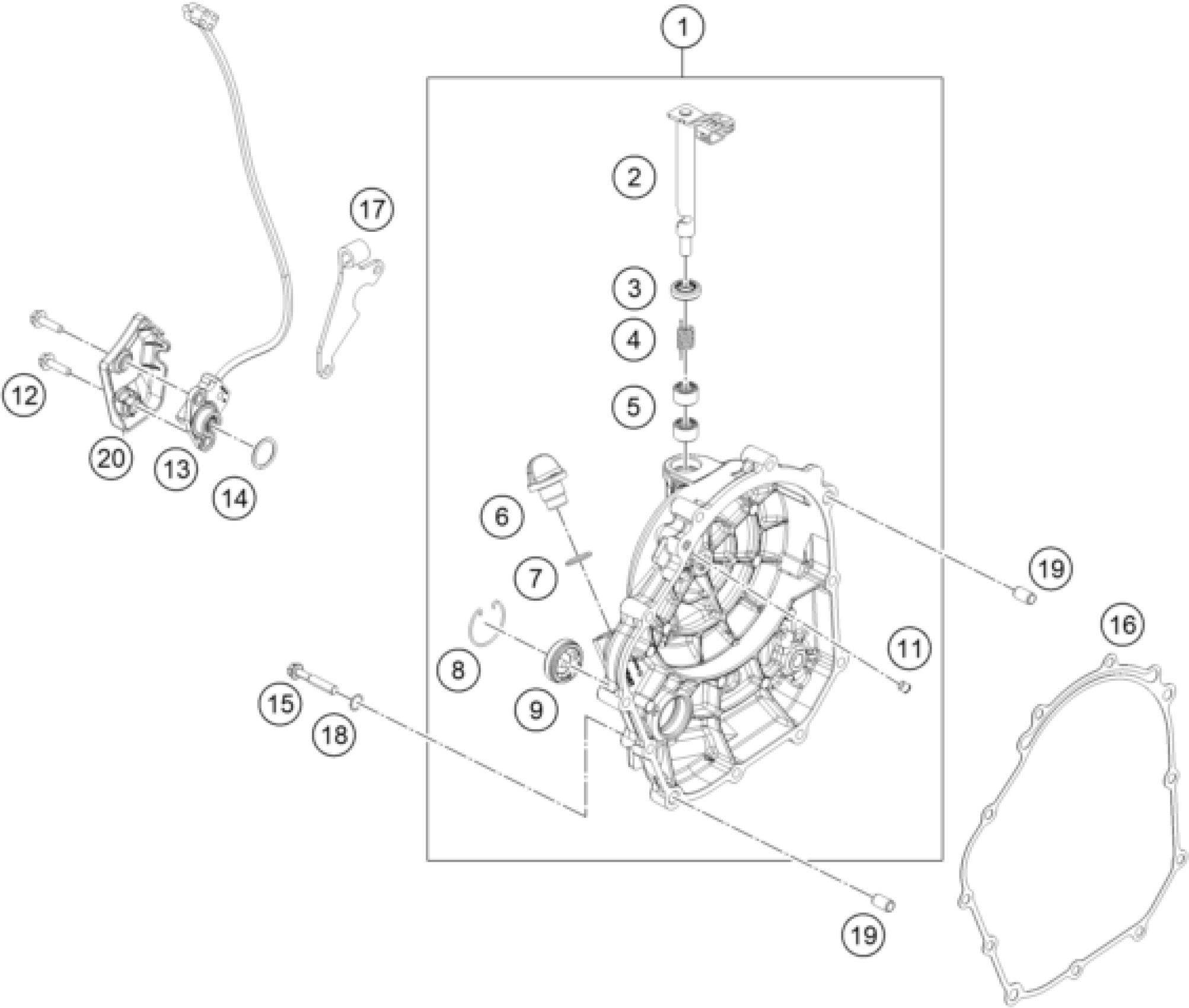

KTM 125 DUKE, blue 2024 CLUTCH COVER Diagram

#

Description

Price

1

COVER CLUTCH CPL

96230026033C1

Unavailable

2

Shaft Assembly Clutch

96032048133

$7.94

3

OIL SEAL RING

90132051000

$3.08

4

SPRING TORSION

J520000800100

$1.49

5

needle bearing

90132050000

$5.23

6

CAP FILLER OIL

96330020000

Unavailable

7

O-ring 14x2,4

J770001424000

$1.49

8

CIRCLIP

J710003315000

$1.49

9

WINDOW GAUGE OIL

96330095000

$3.26

11

Jet Oil Cover Clutch

96230064000

$1.49

12

bolt flanged-m5x0.8

J000150502000

$1.49

13

Shift shaft sensor

94334051000

$95.36

14

O-RING 17,7X2,1 MM

J770017721

$1.49

15

FLANGED BOLT M6X35 WS8

J025060350

$1.49

16

gasket cover clutch

96230027000

$5.23

17

bracket cable clutch

96202090010

$1.86

18

COPPER GASKET

J603061001

$1.49

19

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

20

COVER SENSOR

96334051010

Unavailable
