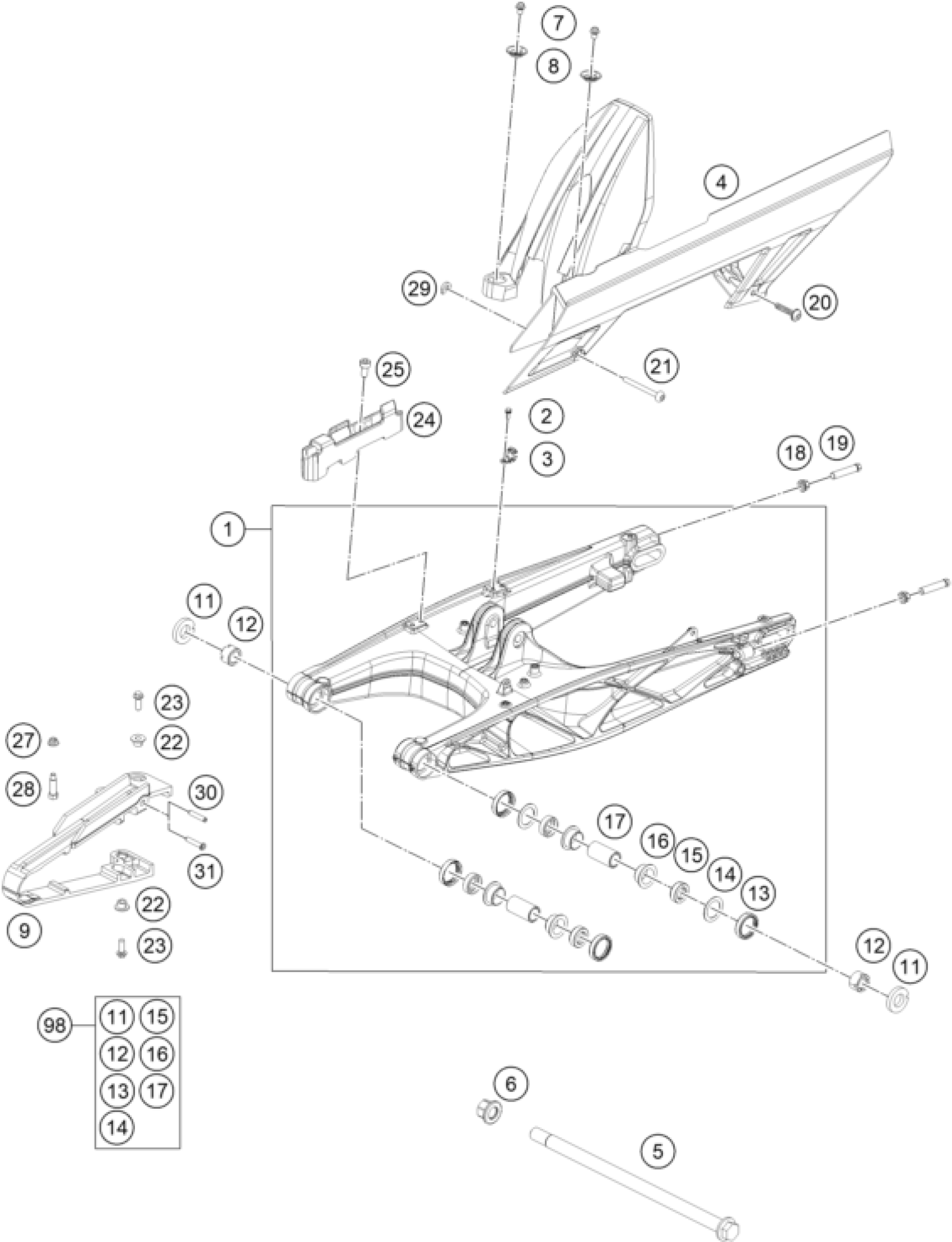

KTM 125 DUKE, black 2022 SWING ARM Diagram

#

Description

Price

1

Swing Arm Sub Assy Duke 390 MY

28104030044BA

$437.20

2

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

3

brake hose guide

90113047000

$1.49

4

Chain cover

93004060100

$27.48

5

Shaft swing arm L=299mm

90104037000

$17.76

6

FLANGED NUT M14X1.5

90104038000

$3.08

7

Hex collar screw M6X8

J025060081

$1.49

8

Supporting shell

93004051000

$1.49

11

Special wahser

93004042000

$2.05

12

swingarm adjusting ring

90104046000

$5.88

13

OIL SEAL RING 25X32X7

90104034001

$3.08

14

Thrust washer 22.2x31.7x1

90104036000

$1.49

15

cup for radial shaft seal

90104034000

$4.11

16

Igus plain bearing

90104031000

$5.23

17

sleeve bushing 15.1x20x38

90104032000

$6.63

18

flanged hex nut M10x1.25 WS13

90104010002

$2.05

19

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

20

Plastic screw 6x30

93004064000

$1.49

21

hexagon socket screw M5X0.8X55

93004065000

$1.49

22

chain slider bushing

90604062000

$1.49

23

HH COLLAR SCREW M6X16 SW8

J025060169

$1.49

24

Support

93013047000

$2.05

25

bolt soket-m5x0.8xl10xcl10.9xb

J912050102

$1.49

27

HH COLLAR NUT

90204060001

$1.49

28

screw M5x0.8x30

90104040100

$1.49

29

WASHER CHAIN SLIDING GUARD

90504067000

$1.49

30

SLEEVE CHAIN GUARD

90104070020

$3.08

31

SLEEVE CHAIN GUARD

90904070020

$2.05

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

9

chain slider

90804066000

$15.79
