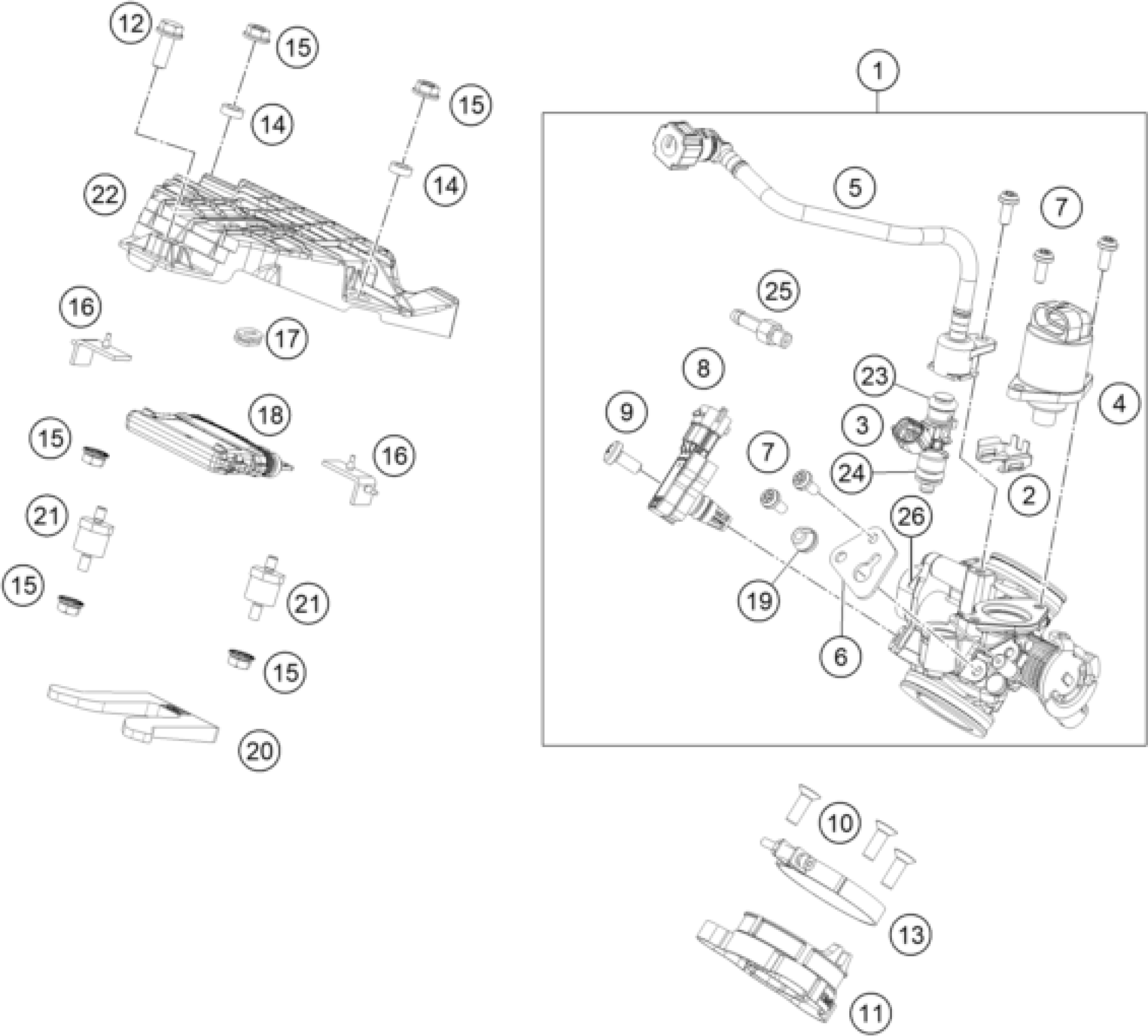

KTM 125 DUKE, black 2021 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body cmpl.

28241001133

Unavailable

2

INJECTOR CLIP

90141001001

$3.08

3

Injector

93541023000

Unavailable

4

IDLE ADJUSTER

90641072000

$80.31

5

Injector upper part with hose

93141013000

$25.24

6

Cable bracket

93241023002

Unavailable

7

SPECIAL SCREW M5X12

90141023005

$1.49

8

Pressure sensor

93041085000

$65.16

9

SPECIAL SCREW M6X14

90141071001

$5.41

10

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

11

CONN. FLANGE CYLINDER-THR.BODY

90141002000

Unavailable

12

Hexagonal bolt M6x14

J933060146

$1.49

13

CLAMP

90641002010

$4.11

14

Sleeve

93041029020

$1.49

15

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

16

rubber band, ECU

93841036000

$22.99

17

DAMPER ECU

93541034000

$11.49

18

ECU

28141031000R

$213.92

19

GROMMET

90141023003

$1.49

20

Rubber cowl pad

93041030100

$2.05

21

Bump rubber ECU support

93011038000

$4.11

22

Control unit bracket

93041029000

$7.38

23

O-ring

55641023020

$10.56

24

O-ring

55641023010

$7.66

25

NOZZLE EVAP

28241038000

Unavailable

26

Throttle position sensor

90641002000

Unavailable
