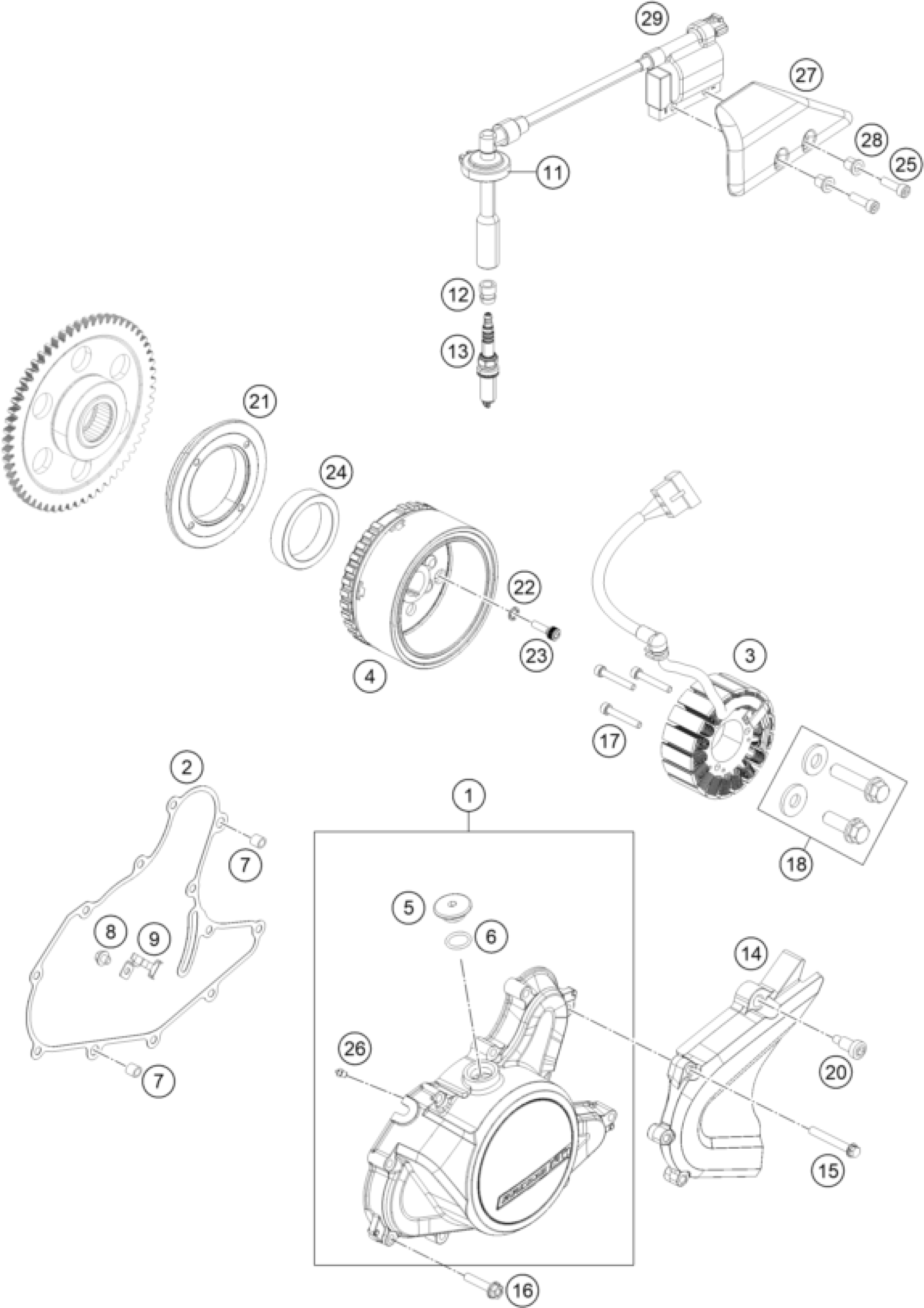

KTM 125 DUKE, black 2021 IGNITION SYSTEM Diagram

#

Description

Price

1

COVER ASSEMBLY MAGNETO

94130002233

$62.73

2

Ignition cover gasket

93530040100

$4.24

3

Stator lose

93639004000

$117.02

4

rotor assembly

94539005000

Unavailable

5

Screw plug, OT marking

93839010100

$1.69

6

O-RING 15,8X2,4

J770015824

$1.69

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.69

8

Hex collar screw M5X8

J025050081

$1.69

9

BRACKET F. STATORCABLE

90139004002

$1.69

11

GASKET SPARK PLUG CONNECT.

90139090001

$2.54

12

Sealing boot spark plug

93839091000

$1.69

13

Spark plug BOSCH VR6NEU M12X1.

93839093000

$8.63

14

CHAIN SPROCKET GUARD

90103096000

$8.73

15

HH COLLAR SCREW M6X45

J025060451

$1.69

16

HH COLLAR SCREW M6X30

J025060301

$1.69

17

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.69

18

SCREW DRIVE GEAR KIT

90130018044

Unavailable

20

special screw M6x24 WS6

90104060010

$1.69

21

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

22

TOOTHED WASHER M6

J797060003

$1.69

23

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

24

FREEWHEEL CLUTCH

90140026000

$102.29

25

Hexagon screw M6X35

J912060353

$1.69

26

OIL NOZZLE

90130164000

$27.57

27

cover ingition coil

93039010000

$2.54

28

sleeve cover ignition coil

93039011000

$1.69

29

coil assembly ignition

93039006033

$39.85
