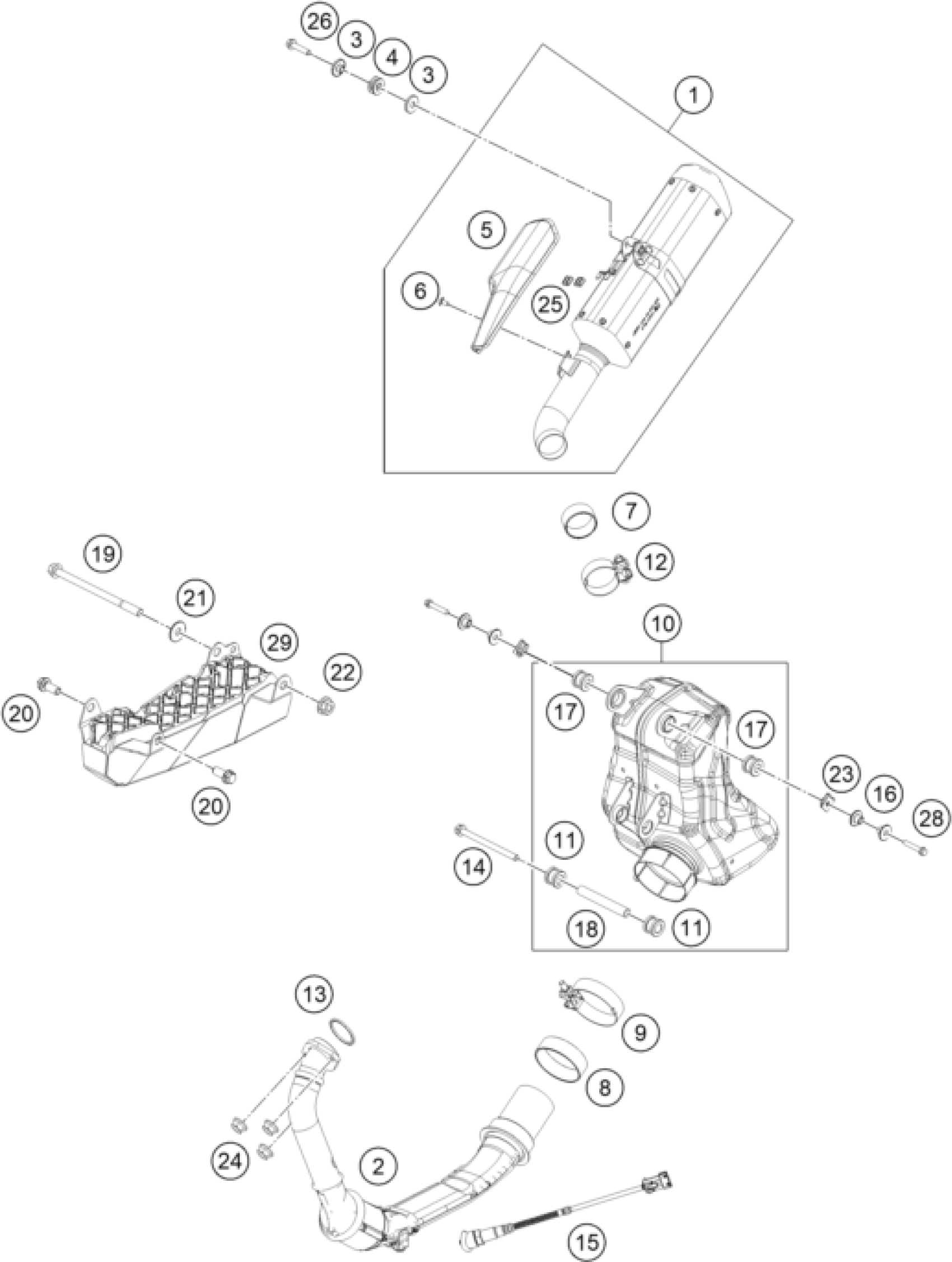

KTM 125 DUKE, black 2021 EXHAUST SYSTEM Diagram

#

Description

Price

1

MUFFLER ASSEMBLY SECONDARY

94305083000

Unavailable

2

PIPE ASSEMBLY A

94005007000

Unavailable

3

BUSH MUFFLER

93805095000

$4.11

4

DAMPER MUFFLER

93805096000

$1.49

5

MUFFLER SHIELD

93805011000

$23.18

6

Lens head screw M6X10

J031060103

$1.49

7

Exhaust flange gasket, muffler

94305050071

$8.31

8

Exhaust flange gasket, premuff

94305050072

$8.59

9

Exhaust clamp

94305051000

$14.30

10

ASSEMBLY PREMUFFLER

28105050044

$369.13

11

damper, bottom

90105068100

$1.49

12

Exhaust clamp

94305051045

$11.30

13

exhaust flange gasket

90105004000

$5.23

14

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

15

Oxygen sensor

94341090000

$100.69

16

muffler mounting spacer bushin

90205086001

$2.05

17

damper, bottom

90205068000

$2.05

18

muffler mounting tube

90105084000

$4.11

23

clip nut

90103097000

$4.11

26

BOLT FLANGED M8X35

J025080353

$1.49

28

BOLT SILENCER MTG

90105000002

$1.49

24

Hex collar nut M6

J926080003

$1.49

29

Heat protection, cmpl.

94005065033

$63.76

19

HH COLLAR SCREW M6X90

J026060903

$2.05

21

WASHER 6,5X2 MM

J126061252

$1.49

22

Hexagon nut M6

J926060001

$1.49

20

BOLT FLANGED M6X14

J028060143

$1.49

25

GROMMET MUFFLER SHIELD

93805011003

$1.49
