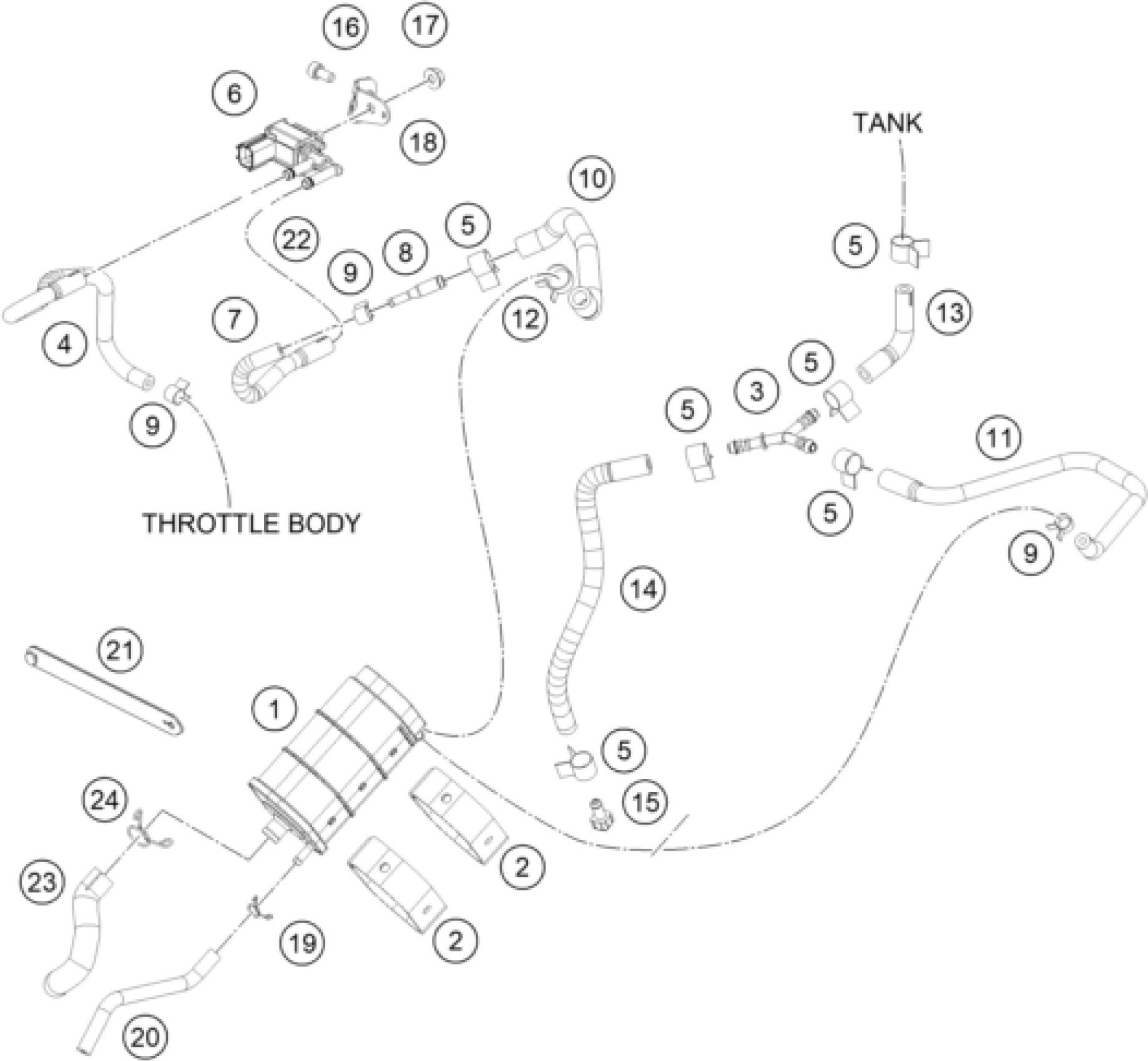

KTM 125 DUKE, black 2021 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Activated carbon filter

93015001000

Unavailable

19

CLAMP

90107013008

Unavailable

20

Hose active carbon filter

93015029000

Unavailable

2

Rubber band

93015003000

Unavailable

10

Hose ACF-Y

J600000813700

Unavailable

8

CONNECTOR TUBE EVAP

90207016004

Unavailable

6

Valve purge

90607830000

Unavailable

18

BRACKET VALVE PURGE

94115032050

Unavailable

17

nut hex flanged

J926060006

Unavailable

16

hexagon socket screw M6X12

J912060123

Unavailable

7

Hose Y-PV

J600000412000

Unavailable

14

TUBE CONNECTOR TO PLUG

90515023000

Unavailable

11

Y connection

93015017000

Unavailable

13

Pre-formed hose

93015026000

Unavailable

3

CONNECTOR Y SHAPE

90507015000

Unavailable

5

SPRING BAND CLAMP D13

90607017003

Unavailable

9

CLAMP D9

90607017002

Unavailable

12

SPRING BAND CLAMP 15X10

90607017001

Unavailable

15

PLUG FUEL DRAIN

90515011000

Unavailable

4

Hose PV-DKK

J600000414000

Unavailable

22

Hose clamp 12.5 x 8 SW

J310000801300

Unavailable

21

Cable ties

J330000514900

Unavailable

23

Drain hose

J600001108800

Unavailable

24

clamp

J310000201300

Unavailable
