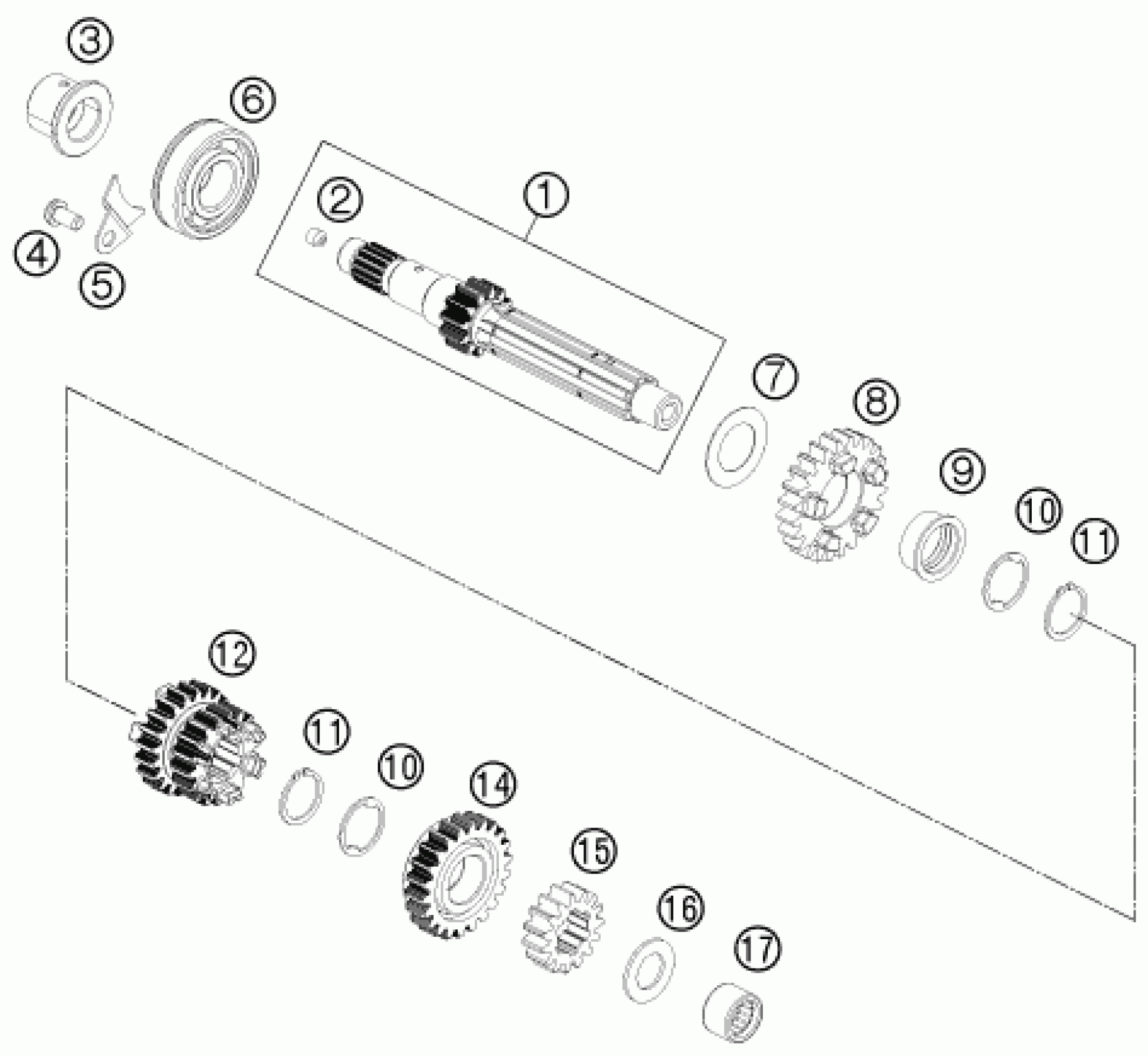

KTM 125 DUKE 2011 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT CPL.

90133001000

Unavailable

2

JET MAIN SHAFT

90133001001

Unavailable

3

COLLAR BUSHING MAIN SHAFT

90133001011

Unavailable

4

FLAT HEAD SCREW M6X12 PH

J005060123

$1.49

5

LOCK WASHER F.BEARING DRIVE

90130004002

$1.49

6

GROOVED BALL BEARING 6204

J625062040

$10.56

7

WASHER 20X33X0,5

90133032000

$1.49

8

DRIVE WHEEL 6. GEAR

90133006000

$16.07

9

BUSHING

90133001003

$4.11

10

SHIM WASHER

90133001004

Unavailable

11

CIRCLIP 20X1,2

J471020120

Unavailable

12

DRIVE WHEEL 3. G./4.G.

90133003000

$32.72

14

DRIVE WHEEL 5. GEAR

90133005000

$22.06

15

DRIVE WHEEL 2. GEAR

90133002000

Unavailable

16

WASHER 15X26X1,5

90133033000

Unavailable

17

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

$6.07
