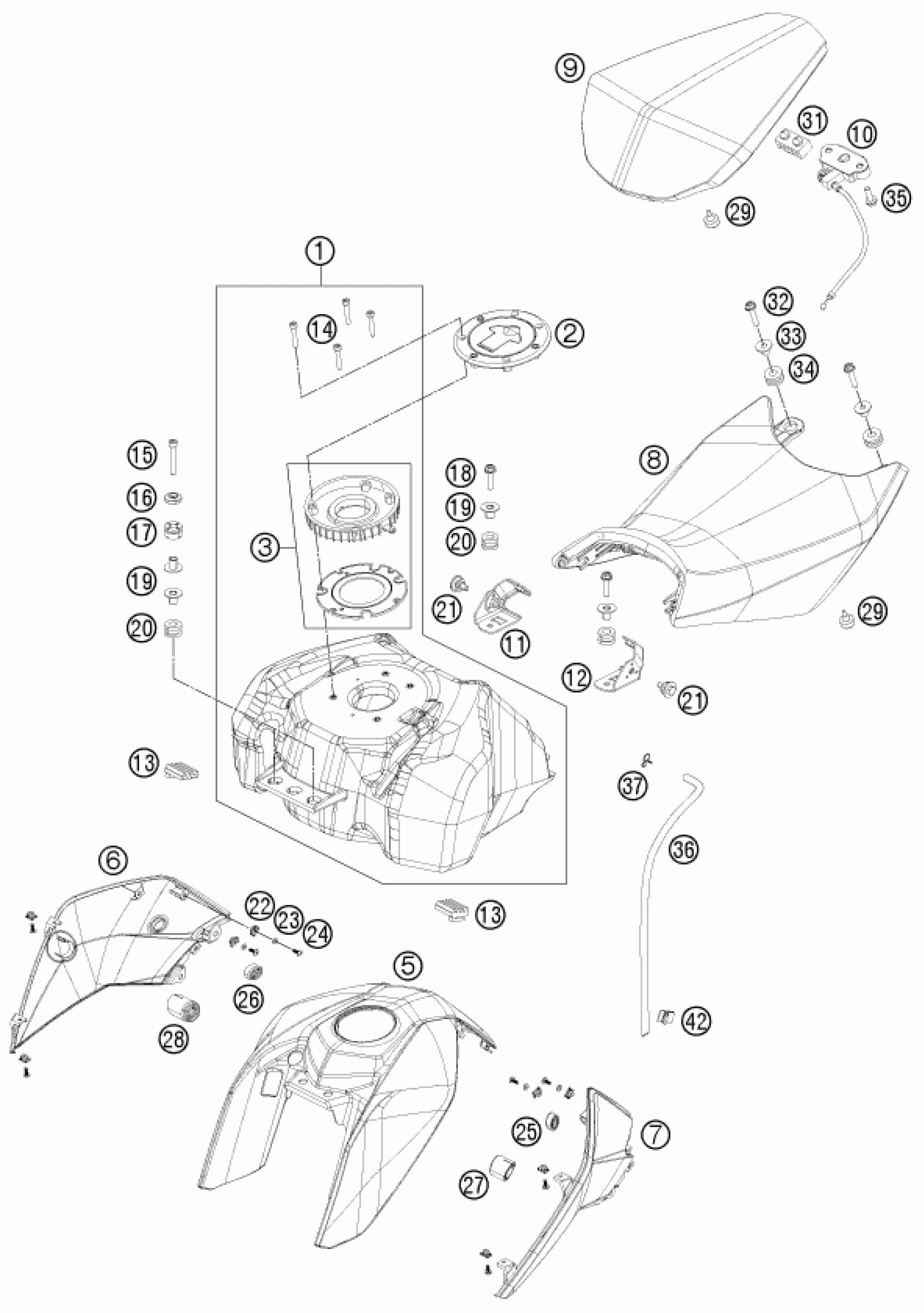

KTM 125 DUKE 2011 TANK, SEAT Diagram

#

Description

Price

1

FUELTANK CPL.

90107013044

Unavailable

2

TANK CAP

90107008000

Unavailable

3

CUP CAP WITH GASKET

90107008044

Unavailable

21

SPECIAL SCREW

90107040003

Unavailable

5

COVER FUEL TANK TOP ORANGE

9010804900004

Unavailable

6

COVER FUEL TANK R/S BLACK MAT

9010805100047

Unavailable

7

COVER FUEL TANK L/S BLACK MAT

9010805000047

Unavailable

8

SEAT

90107040000

Unavailable

9

PASSENGER SEAT

90107047000

Unavailable

10

SEAT UNLOCK SOZIUS

90107050000

Unavailable

11

MOUNTING BRACKET R/S -SEAT

90107040020

Unavailable

12

MOUNTING BRACKET L/S -SEAT

90107040010

Unavailable

13

TANK REST RUBBER

90107013003

Unavailable

14

AH SCREW M5X28

J912050283

Unavailable

15

AH SCREW M6X40

90107036000

Unavailable

16

SPECIAL WASHER F. M6 D=20MM

90108045000

Unavailable

17

GROMMET TOP COVER

90107013004

Unavailable

18

bolt flanged M6X25

J025060253

Unavailable

19

SLEEVE TANK MOUNTING

90107013005

Unavailable

20

GROMMET TANK MOUNTING

90107013006

Unavailable

22

CLIP NUT M5

90108050001

Unavailable

23

SHIM PVC 5,3X11,5X1,5

J125050001

Unavailable

24

CHEESE-HEAD SCREW M5X15

J031050153

Unavailable

25

TANK RUBBER PAD SMALL L/S

90107070000

Unavailable

26

TANK RUBBER PAD SMALL R/S

90107071000

Unavailable

27

TANK RUBBER PAD LARGE L/S

90107072000

Unavailable

28

TANK RUBBER PAD LARGE R/S

90107073000

Unavailable

29

SEAT RUBBER

90107046000

Unavailable

31

SEATRUBBER REAR

90107046050

Unavailable

32

SPECIAL SCREW M6X25

90107040004

Unavailable

33

COLLAR BUSHING SEAT BRACKET

90107040002

Unavailable

34

RUBBER SLEEVE

90107040001

Unavailable

35

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

36

Tube drain cup cap

90107013007

Unavailable

37

CLAMP

90107013008

Unavailable

42

BRACKET DRAIN TUBE CPL.

90107029000

Unavailable
