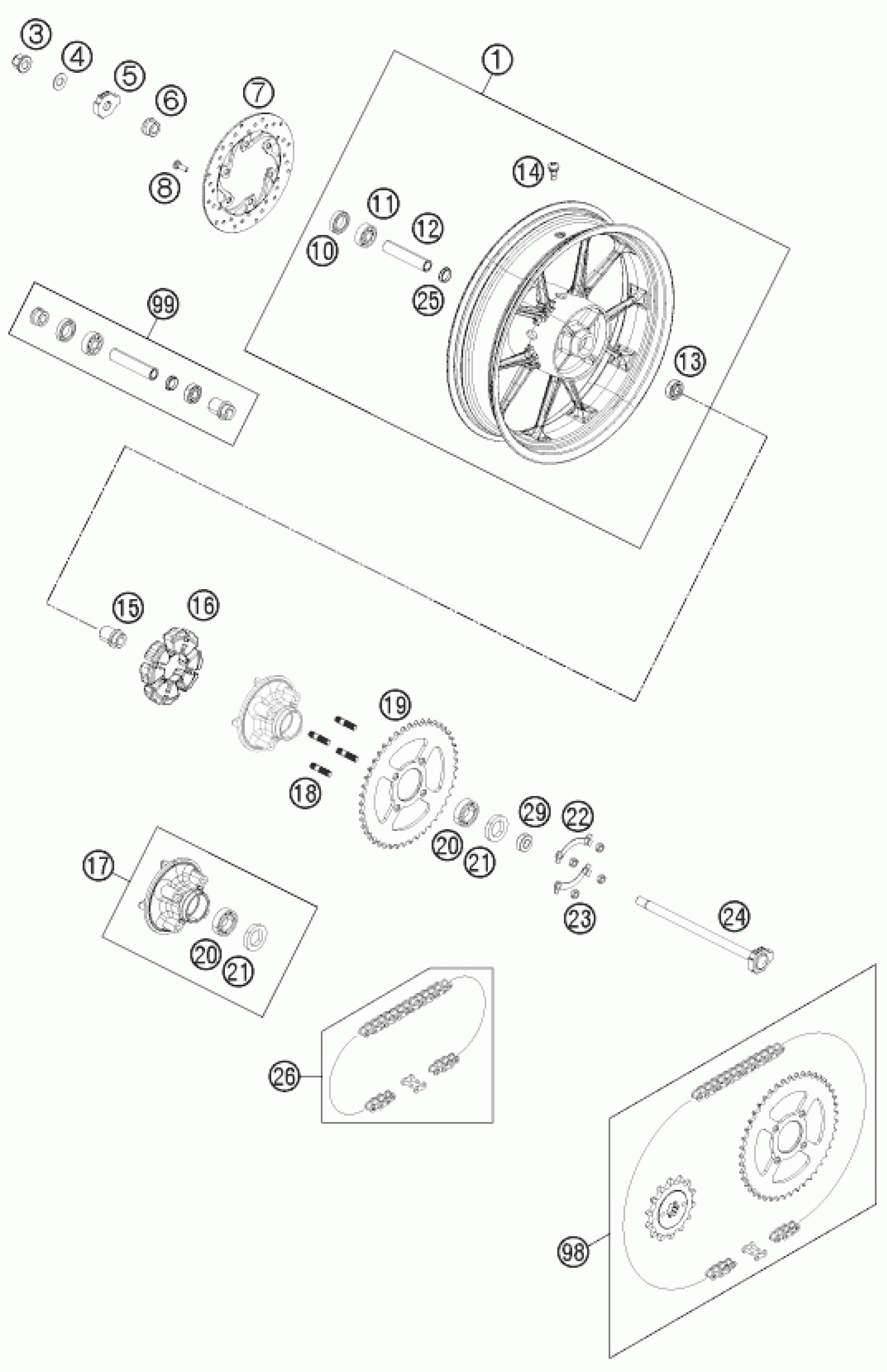

KTM 125 DUKE 2011 REAR WHEEL Diagram

#

Description

Price

14

VALVE CPL.

90109076000

$7.10

1

REAR WHEEL CPL. 4.00X17

90110001044

Unavailable

3

COLLAR NUT WHEEL SPINDLE REAR

90110086000

Unavailable

4

WASHER 15,2X30X2MM

90110087000

Unavailable

5

chain tension adjuster, right

90110084000

$7.10

6

SPACER BUSHING REAR WHEEL R/S

90110013000

$6.54

7

rear brake disk D=230mm

90110060000

$76.94

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 26X42X8

J760264208

$3.08

11

BALL BEARING 6302

J625063020

$13.64

12

BEARING SPACER TUBE REAR

90110011000

$12.61

13

BALL BEARING 6202

J625062021

$11.40

15

SPACER BUSHING KRT INSIDE

90110054000

Unavailable

16

DAMPING RUBBER

90110059000

Unavailable

17

SPROCKET SUPPORT

90110050000

Unavailable

18

STUD M10

90110052050

Unavailable

19

SPROCKET 45 T.

90110051045

Unavailable

20

BALL BEARING 6005 RS

J625060050

Unavailable

21

SHAFT SEAL RING 30X47X8

J760304708

Unavailable

22

TWIST LOCK WASHER

90110051002

Unavailable

23

FLANGED NUT M10X1,25 H6 WS14

90110052000

Unavailable

24

AXLE REAR CPL.

90110085033

Unavailable

98

DRIVETRAIN KIT 125 DUKE14T/45T

00050002017

Unavailable

99

REAR WHEEL REP. KIT

90110015000

Unavailable

25

Fixation bearing spacer tube

90109011001

$1.49

26

chain DID 118 roll

76910065118

$128.83

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23
