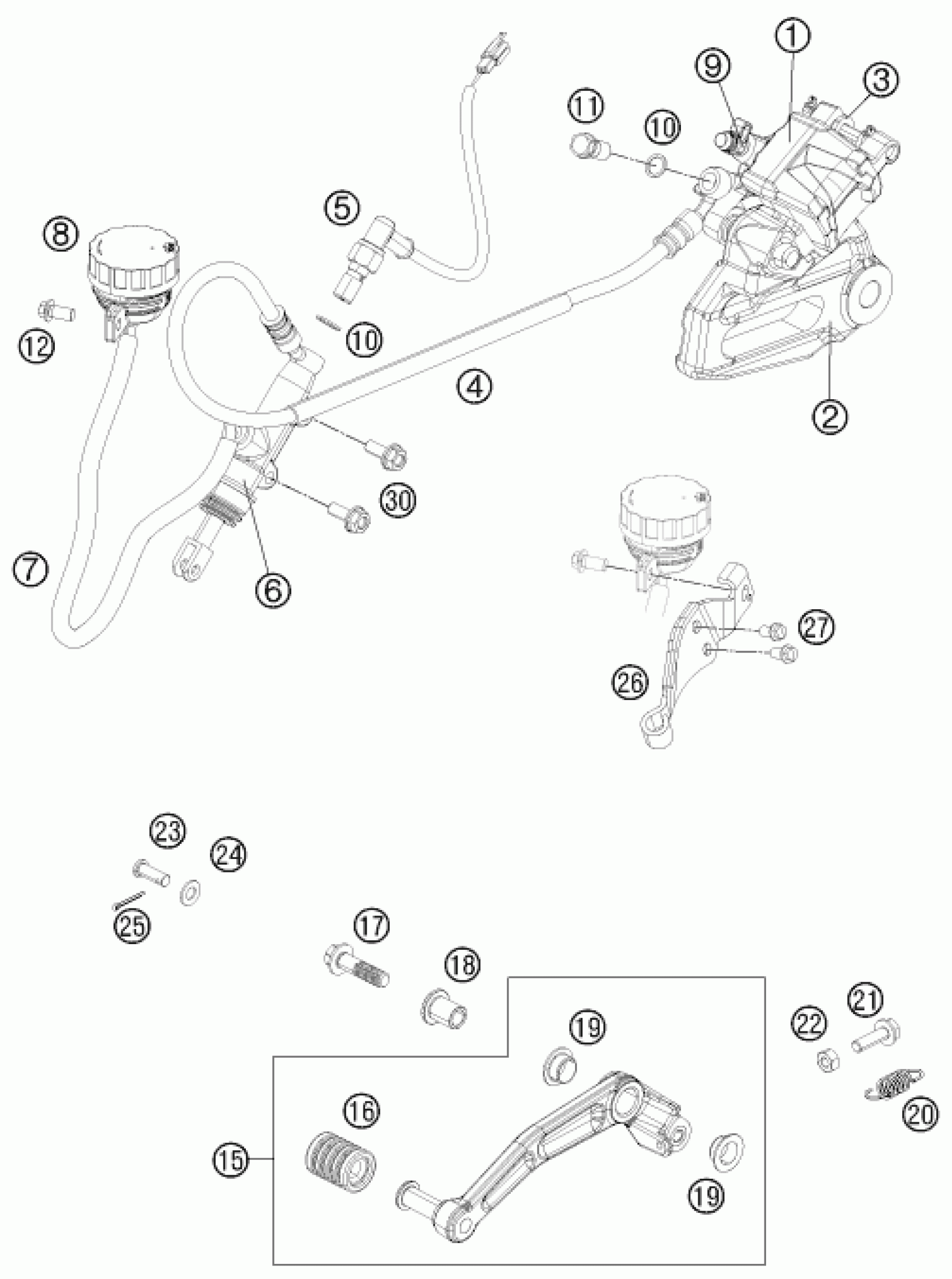

KTM 125 DUKE 2011 REAR BRAKE CALIPER Diagram

#

Description

Price

2

BRAKE CALIPER SUPPORT REAR

90113075000

Unavailable

3

REAR BRAKE PADS - SET

90113090000

Unavailable

4

BRAKE HOSE REAR

90113072000

Unavailable

5

brake light switch, rear

90111051000

Unavailable

6

footbrake zylinder cpl.

90113060000

Unavailable

7

HOSE F. RESERVOIR

90113069000

Unavailable

8

BRAKE FLUID RESERVOIR CPL.

90113009000

Unavailable

9

BLEEDER SCREW

90113121000

Unavailable

10

COPPER GASKET

90113026000

Unavailable

11

BANJO SCREW

90113013000

Unavailable

12

HH COLLAR SCREW M6X12 SW8

J025060123

Unavailable

15

FOOT BRAKE LEVER CPL

90113050033

Unavailable

16

GEAR SHIFT LEVER RUBBER

90134035000

Unavailable

17

HH COLLAR SCREW M8X30 SS SW10

J025080303S

Unavailable

18

SPACER SLEEVE

90134031003

Unavailable

19

IGUS BUSH BEARING

90134036000

Unavailable

20

brake pedal spring

90113052000

Unavailable

21

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

22

HEXAGON NUT M6

J934060003

Unavailable

23

pin for fork end

90113057000

Unavailable

24

PLAIN WASHER 6,5X13X1

J125060003

Unavailable

25

splint pin 2x15mm

J094020153

Unavailable

1

brake caliper, rear cpl.

90113080000

Unavailable

26

RETAIN.PLATE EXPAN. RESERVOIR

90113074000

Unavailable

30

HH COLLAR SCREW M6X16 SW10

J025060163

Unavailable

27

HH-COLLAR SCREW M5X10

J025050103

Unavailable
