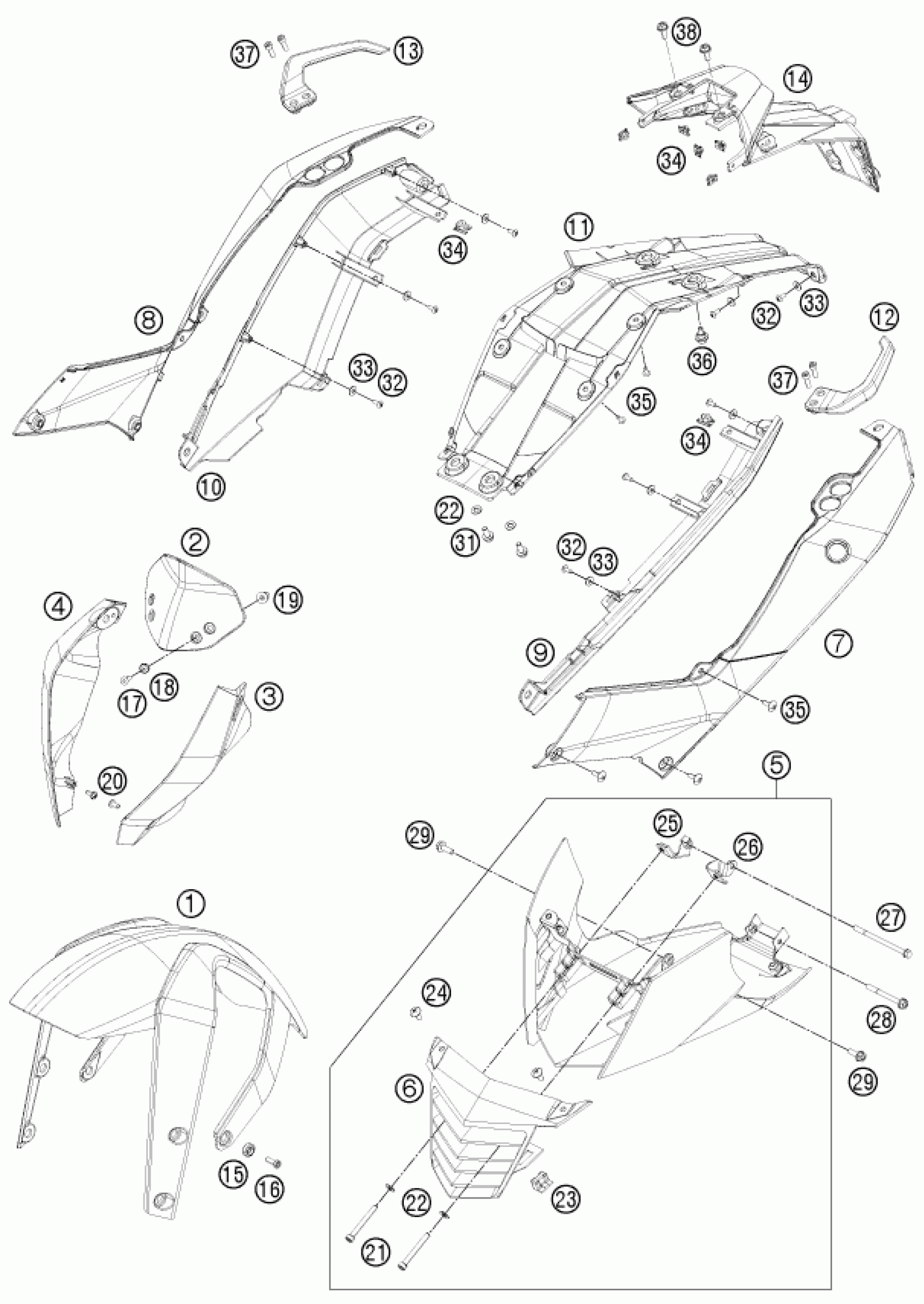

KTM 125 DUKE 2011 MASK, FENDERS Diagram

#

Description

Price

1

FRONT FENDER BLACK

9010801000033

Unavailable

2

WIND SHIELD

90108008000

Unavailable

3

MASK SPOILER L/S ORANGE

9010800200004

Unavailable

4

MASK SPOILER R/S ORANGE

9010800300004

Unavailable

5

FRONTSPOILER LOWER PART CPL.

90108020044

Unavailable

6

FRONT SPOILER TOP PART

90108021000

Unavailable

7

SIDE COVER L/S TOP

9010804100004

Unavailable

8

SIDE COVER R/S TOP

9010804200004

Unavailable

9

SIDE COVER BOTTOM L/S

90108043000

Unavailable

10

SIDE COVER BOTTOM R/S

90108044000

Unavailable

11

REAR END LOWER PART

90108015010

Unavailable

12

GRIP L/S CPL.

90112008033

Unavailable

13

GRIP R/S CPL.

90112009033

Unavailable

14

NUMBER PLATE SUPPORT

90108015000

Unavailable

15

BUSHING FRONT FENDER

90108010050

Unavailable

16

AH SCREW M6X16

J912060163

Unavailable

17

AH SCREW M5X20

J019050201

Unavailable

18

WASHER FOR WINDSHIELD

90108008050

Unavailable

19

WELL NUT M5 L16

90108008060

Unavailable

20

SELF TAPPING SCREW K50X12 T20

J081050121

Unavailable

21

AH SCREW M6X50

J912060503

Unavailable

22

PLAIN WASHER 6,5X13X1

J125060003

Unavailable

23

GROMMET BELLY PAN

90108020001

Unavailable

24

SPECIAL SCREW BELLY PAN

90108020050

Unavailable

25

BRACKET R/S BELLY PAN

90108025000

Unavailable

26

BRACKET L/S BELLY PAN

90108026000

Unavailable

27

HH COLLAR SCREW M6X90

J026060903

Unavailable

28

HH COLLAR SCREW M6X60 SW10

J025060603

Unavailable

29

HH COLLAR SCREW M6X18 SW10

J025060183

Unavailable

31

HH COLLAR SCREW M6X14 SW8

J025060143

Unavailable

32

CROSS PAN SCREW 4X12 PH

J081040121

Unavailable

33

WASHER 4,5X12X1MM

J021040003

Unavailable

34

CLIP NUT M5

90108050001

Unavailable

35

CHEESE-HEAD SCREW M5X16

J031050163

Unavailable

36

SPECIAL SCREW M6X12,5 WS8

90108015050

Unavailable

37

AH SCREW M8X27

J020080273

Unavailable

38

HH COLLAR SCREW M6X14 WS10

J025060149

Unavailable
