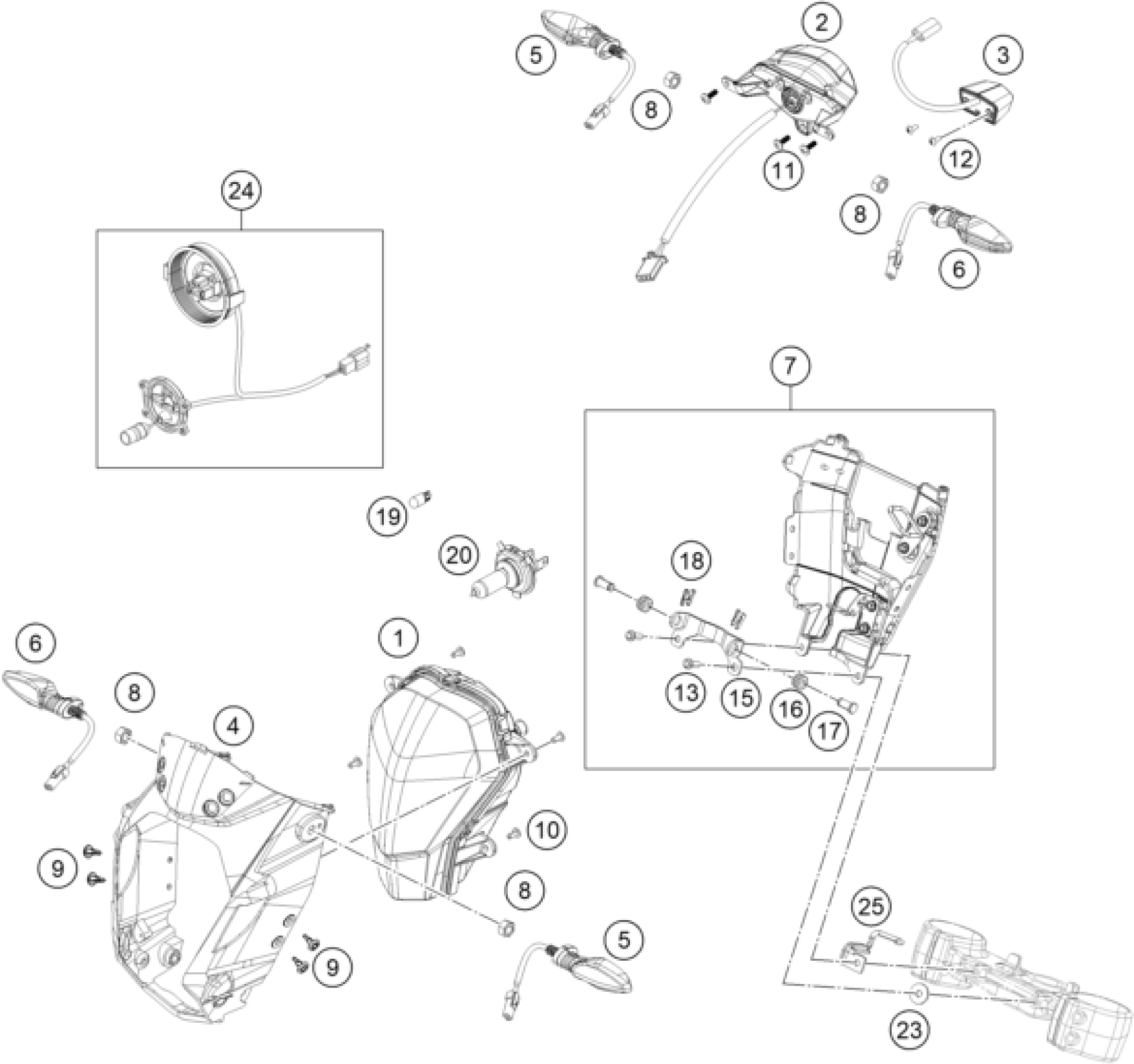

KTM 125 DUKE 2011 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT CPL.

90114001000

Unavailable

2

REAR LIGHT LED

90114040000

Unavailable

3

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

4

MASK BRACKET

90114062000

Unavailable

9

EXPANDING RIVET CPL.

76503075100

Unavailable

10

EJOT PT screw K50x12

0081050121

Unavailable

11

CHEESE-HEAD SCREW M5X15

J031050153

Unavailable

12

CROSS PAN SCREW 4X12 PH

J081040121

Unavailable

13

HH COLLAR SCREW M6X16 SW10

J025060163

Unavailable

15

HINGE JOINT HEADL.-COVER

90114064010

Unavailable

16

GROMMET MASK CARR. PIVOT BKT

90114064011

Unavailable

17

SAFETY BOLT 8X1,5

J070080150

Unavailable

18

SEC. CLIP MASK CARR. PIVOT BKT

90114064012

Unavailable

8

HEX NUT M10X1,25

90114030000

Unavailable

24

HARNESS F. HEADLAMP

90111079000

Unavailable

7

HEAD LIGHT COVER REAR CPL.

90114064044

Unavailable

5

FLASHER CPL. FR. L/S

90114126000

Unavailable

6

FLASHER CPL. FR. R/S

90114125000

Unavailable

19

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

20

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

25

HOOK BRACKET ABS HOSE

90103001036

Unavailable

23

WASHER 6,5X2 MM

J126061252

Unavailable
