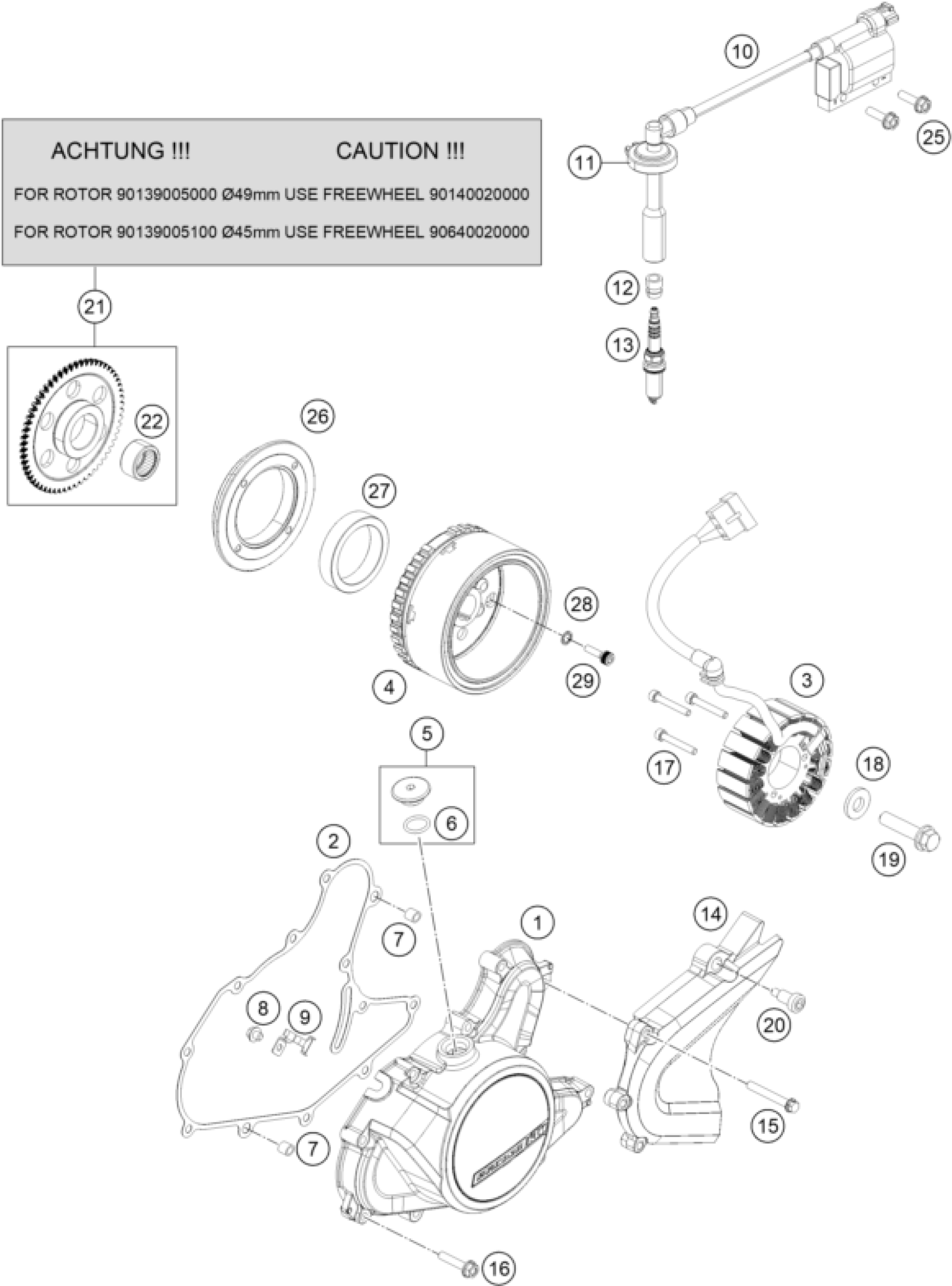

KTM 125 DUKE 2011 IGNITION SYSTEM Diagram

#

Description

Price

18

WASHER

90130028050

Unavailable

19

FLANGED BOLT M10X1,25X30

90130028000

Unavailable

1

IGNITION COVER

90130002000

Unavailable

2

IGNITION COVER GASKET

90130040000

Unavailable

3

STATOR CPL.

90139004000

Unavailable

4

ROTOR CPL.

90139005100

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

HH COLLAR SCREW M5X6

J025060083S

Unavailable

9

BRACKET F. STATORCABLE

90139004002

Unavailable

10

coil assembly ignition

90139090033

Unavailable

11

GASKET SPARK PLUG CONNECT.

90139090001

Unavailable

12

RUBBER GASKET SPARK PLUG

90139093001

Unavailable

13

SPARK PLUG VR5NE

90139093100

Unavailable

14

CHAIN SPROCKET GUARD

90103096000

Unavailable

15

HH COLLAR SCREW M6X45 SW10

J025060456

Unavailable

16

HH COLLAR SCREW M6X30 SW10

J025060306

Unavailable

17

AH SCREW M5X35 SELF LOCKING

J912050353S

Unavailable

5

PLUG INCL. O-RING

90130002010

Unavailable

20

special screw M6x24 WS6

90104060010

Unavailable

25

HH COLLAR SCREW M6X20

J025060209

Unavailable

21

FREEWHEEL GEAR CPL.

90140020000

Unavailable

22

NEEDLE ROLLER BEARING HK2516

J618253216

Unavailable

26

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

27

FREEWHEEL CLUTCH

90140026000

Unavailable

28

TOOTHED LOCK WASHER

90130001002

Unavailable

29

SOCKET HEAD SCREW M6X20

90130001001

Unavailable
