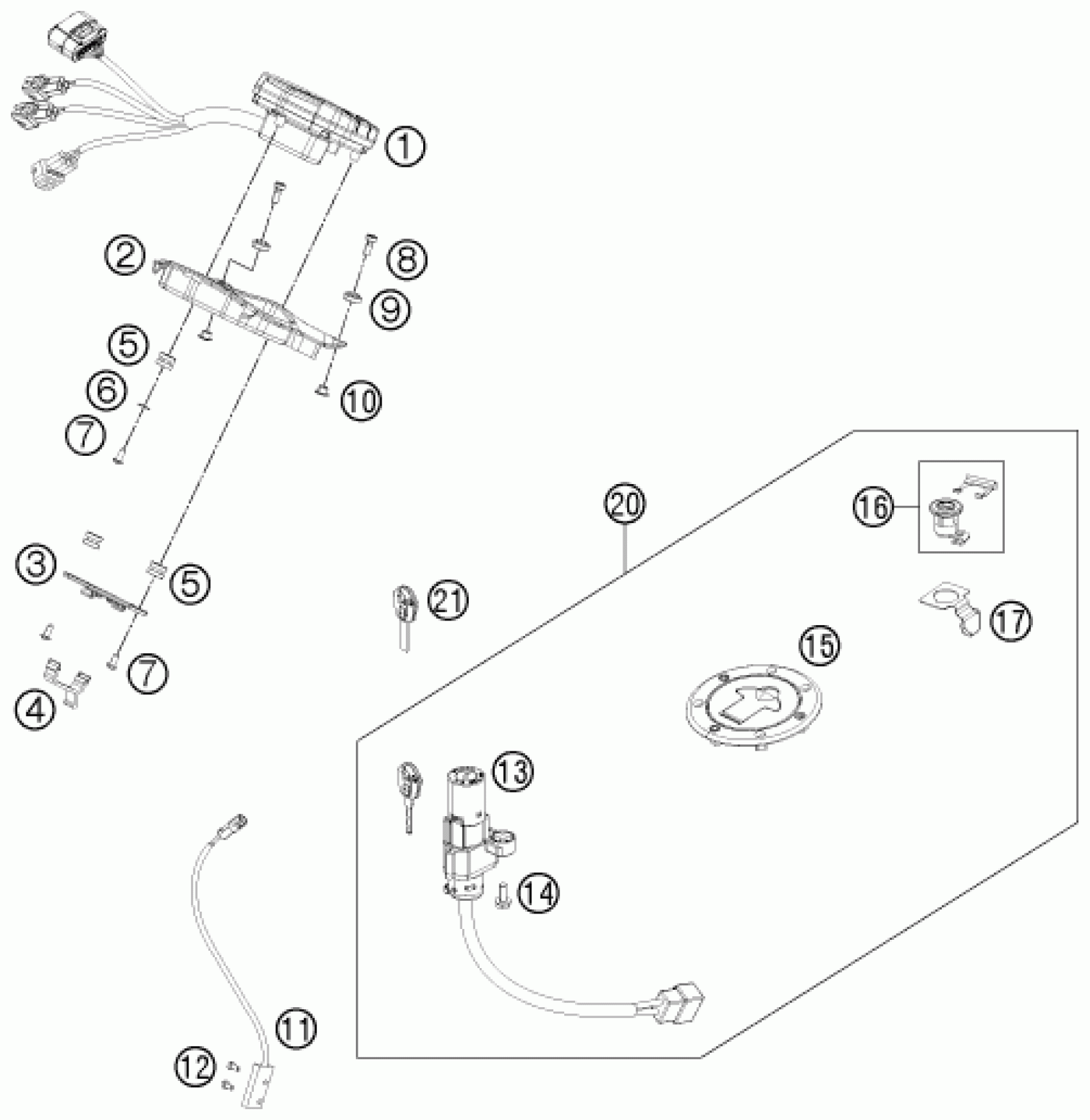

KTM 125 DUKE 2011 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

20

LOCK SET 3-PART

90111066044

Unavailable

1

SPEEDOMETER

90114069000

Unavailable

2

SPEEDOMETER SUPPORT

90114060000

$11.96

3

BRACKET F. SPEEDOM.CONN.

90114063000

$6.54

4

RUB. STRAP F. BKT SPEEDOM.CONN

90114063050

$5.23

5

GROMMET DASHBOARD

90114060050

$1.49

6

PLAIN WASHER

90114064013

$1.49

7

SELF TAPPING SCREW K50X12 T20

J081050121

$2.05

8

AH SCREW M6X15 10.9

J021060156

$1.49

9

SPECIAL WASHER

90114060002

$4.11

10

COLLAR BUSHING

90114060003

$2.05

11

SPEEDOMETER SENSOR

90114068000

Unavailable

12

PAN CROSS SCREW M4

90114068001

Unavailable

13

IGNITION LOCK

90111066000

$47.49

14

HH COLLAR SCREW M6X16 SW10

J025060163

$1.49

15

TANK CAP

90107008000

Unavailable

16

SEAT LOCK

90107050050

$34.12

17

seat lock mounting plate

90107050051

$2.05

21

BLANK KEY 125/200 DUKE

90111067100

Unavailable

21

KEY

90111067000

$130.05
