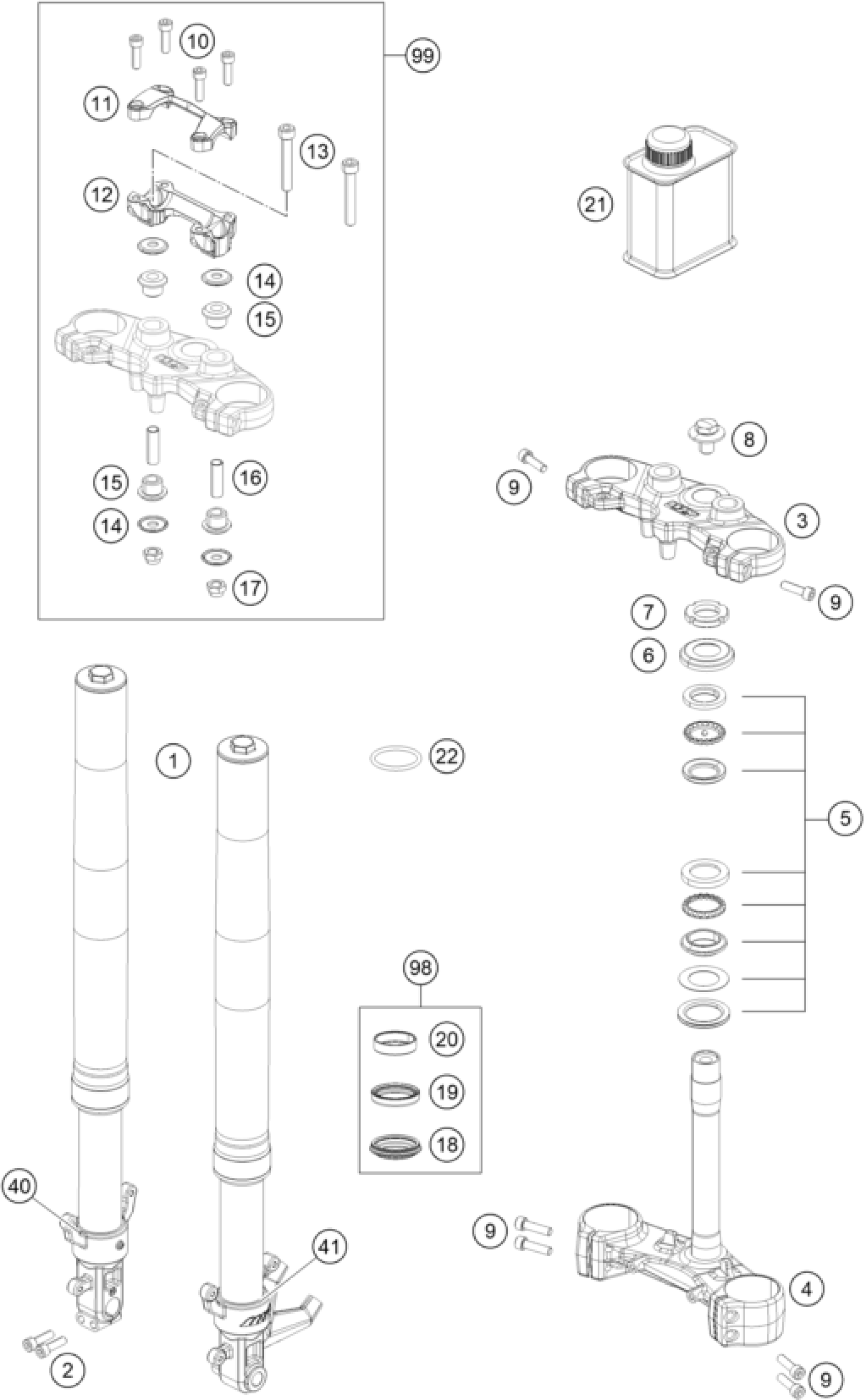

KTM 125 DUKE 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK LEG L/S CPL.

90101001000

Unavailable

2

AH SCREW M8X27

J020080273

$2.05

3

TOP TRIPLE CLAMP

90101034035

$240.38

4

BOT. TRIPLE CLAMP CPL.

90101032000

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

CLAMP SCREW STEERING HEAD

90101136000

$12.80

9

AH SCREW M8X30

90101031001

Unavailable

11

HANDLEBAR CLAMP

90101038000

$9.15

12

HANDLEBAR SUPPORT D=26MM

90101039000

$13.64

13

AH SCREW M10X1,25X64

J022100643

$3.08

14

WASHER 10,5X32X2

90101042000

$1.49

15

RUBBER BUSHING

90101040000

$2.05

16

SPACER TUBE

90101041000

$4.11

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

pilot bushing 43x47x12

43570204

$11.68

21

FORK OIL SAE5 5L 2008

48600765S1

$149.59

99

HANDLEBAR SUPPORT KIT

90101039010

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

1

FORK LEG R/S CPL.

90101002000

Unavailable

10

SPECIAL SCREW M8X29 SS

90101044000

$2.05

22

O-ring 43x2 NBR70 siliconized

40140024

$4.11

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

41

AXLE CLAMP CPL. W. PIPE L/S

90101006044

Unavailable
