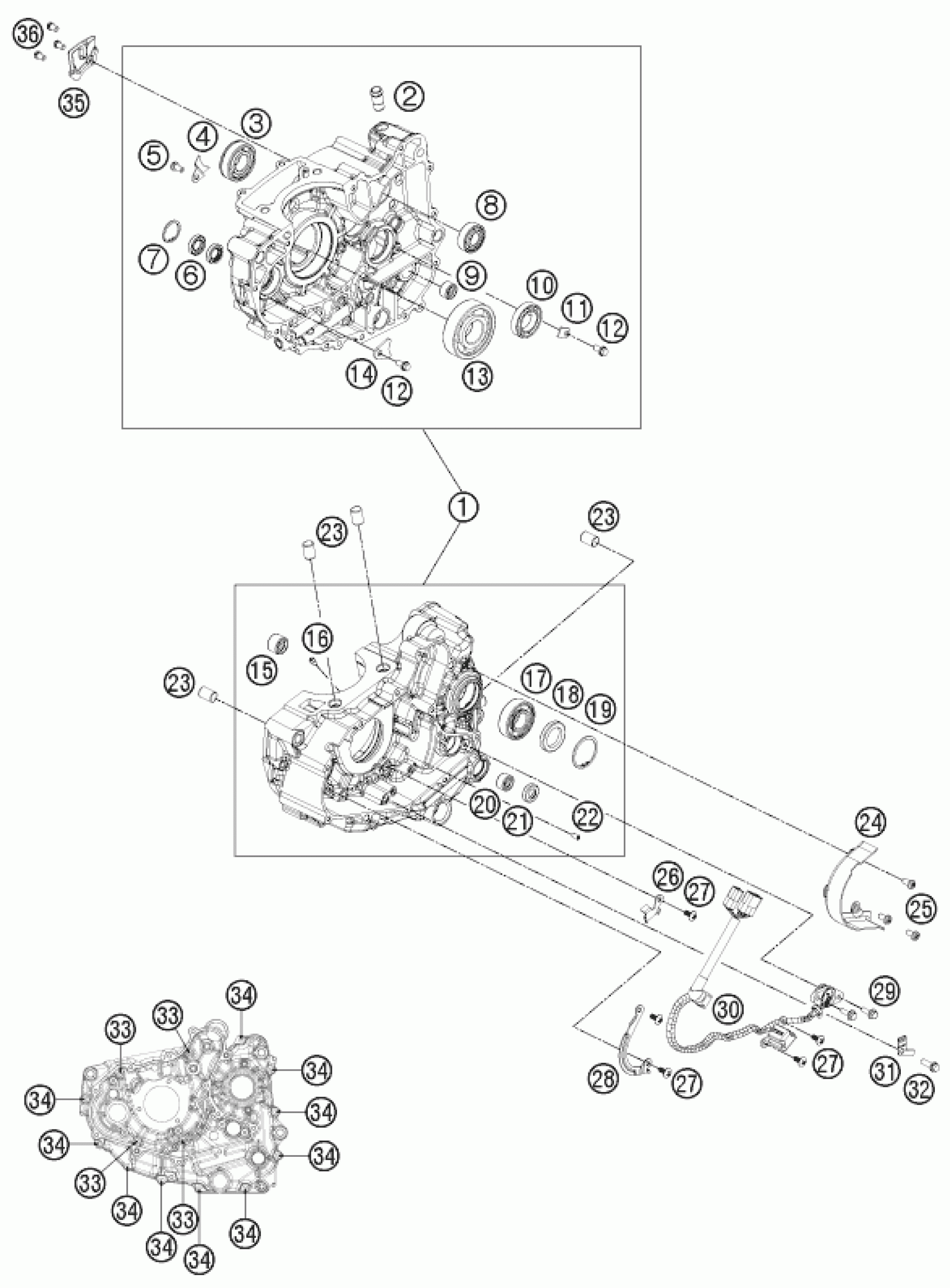

KTM 125 DUKE 2011 ENGINE CASE Diagram

#

Description

Price

17

BALL BEARING 6204-Z/HN3

J625062041

Unavailable

18

SHAFT SEAL RING 25X37X6

J760253706

Unavailable

19

CIRCLIP 37X1,5

J472037150

Unavailable

1

ENGINE CASE CPL.

90130000044

Unavailable

2

VENTILATION CONNECTOR

90130022000

Unavailable

3

GROOVED BALL BEARING 6204

J625062040

Unavailable

4

LOCK WASHER F.BEARING DRIVE

90130004002

Unavailable

5

FLAT HEAD SCREW M6X12 PH

J005160123

Unavailable

6

SHAFT SEALING RING 12X24X5,5

J760122455

Unavailable

7

CIRCLIP 25X1,2

J472025120

Unavailable

8

BALL BEARING 15X35X11

90130004003

Unavailable

9

NEEDLE ROLLER BEARING HK1312

J618131912

Unavailable

20

NEEDLE ROLLER BEARING HK1312

J618131912

Unavailable

21

Seal - oil

90130003004

Unavailable

22

OILJET

90130058000

Unavailable

23

DOWEL D14

90130003007

Unavailable

24

CHAIN GUARD

90130047000

Unavailable

25

FLAT HEAD SCREW M6X12 PH

J005060123

Unavailable

26

CABLE SUPPORT BELOW

90130003005

Unavailable

27

FLAT HEAD SCREW M5X1 SS

J005050106S

Unavailable

28

CABLE SUPPORT ABOVE

90130003006

Unavailable

29

HH-COLLAR SCREW M5X16 WS8

J025050163

Unavailable

30

GEAR-POS.SENSOR INL.PULS. COIL

90111023000

Unavailable

31

BRACKET F. FREE WHEEL GEAR

90140020002

Unavailable

32

HH-COLLAR SCREW M6X16 WS8

J028060163

Unavailable

33

HH COLLAR SCREW M6X60 SW10

J025060606

Unavailable

34

HH COLLAR SCREW M6X40 SW10

J025060406

Unavailable

35

VENTILATIONBRACKET

90130042000

Unavailable

36

PAN CROSS SCREW M5X10 PH

J985050103

Unavailable

10

Bearing ball

90130004004

Unavailable

11

LOCK WASHER

90130078000

Unavailable

12

FLANGED BOLT 6X12

90130078001

Unavailable

13

BALL BEARING 63/2/8 HN3CNP

90130082000

Unavailable

14

LOCK WASHER F.BEARING AGW

90130079000

Unavailable

15

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

Unavailable

16

OIL JET

90130064000

Unavailable
