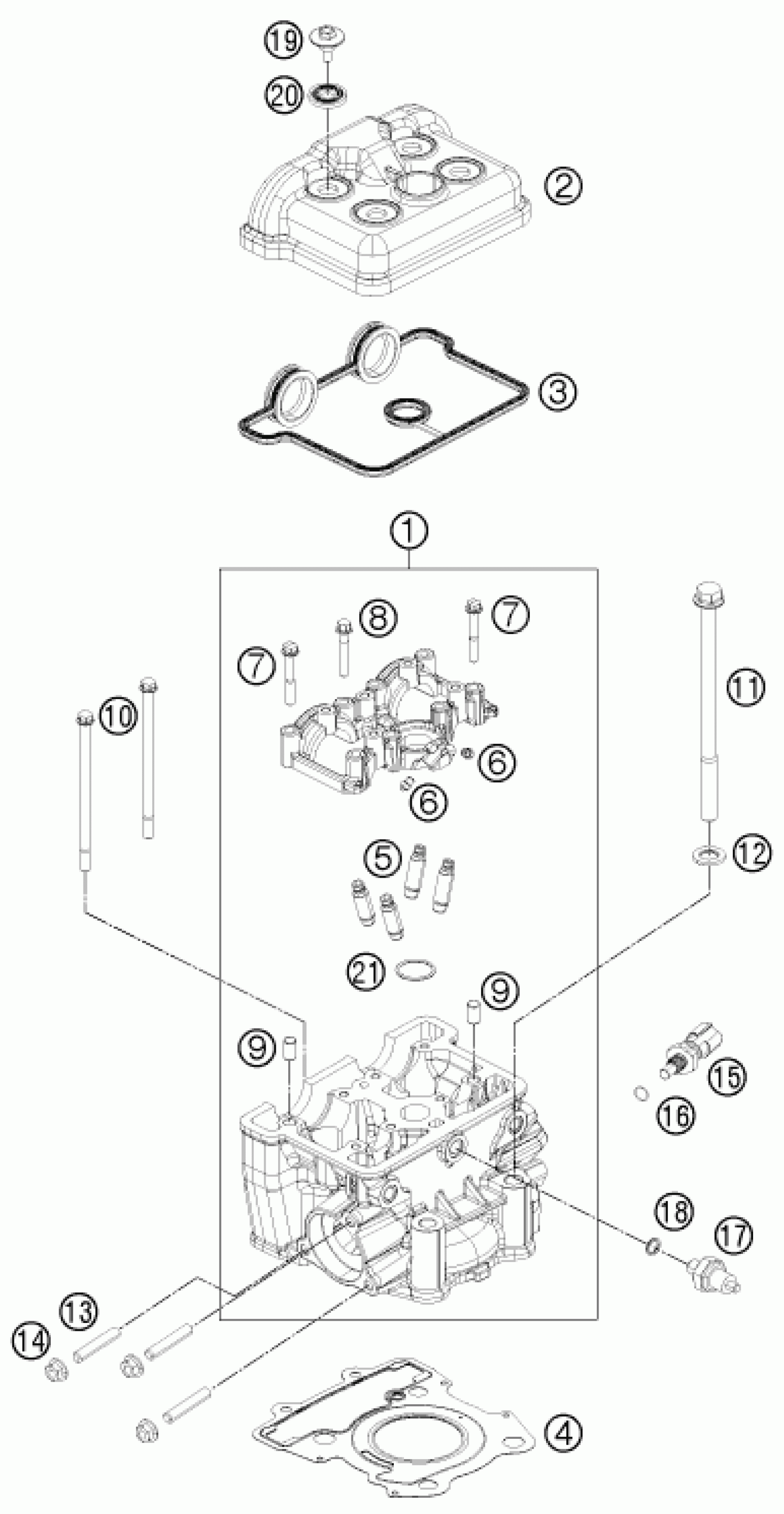

KTM 125 DUKE 2011 CYLINDER HEAD Diagram

#

Description

Price

1

CYLINDER HEAD WITH CAMHOLDER

90136020090

Unavailable

2

VALVE COVER

90136052000

Unavailable

3

VALVE COVER GASKET

90136053000

Unavailable

4

CYLINDER HEAD GASKET

90130036000

Unavailable

5

VALVE GUIDE

90136025000

Unavailable

6

OIL JET

90130064000

Unavailable

7

HH-COLLAR SCREW M6X40 WS10

J025060402

Unavailable

8

HH-COLLAR SCREW M6X35 WS8

J025060356

Unavailable

9

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

10

COLLAR SCREW M6

90136020005

Unavailable

11

HH COLLAR SCREW 10X147,5

90136020003

Unavailable

12

WASHER 11,2X20X2

90130080000

Unavailable

13

STUD M8

90136020001

Unavailable

14

FLANGED NUT M8 H7,5 WS12

90136038000

Unavailable

15

TEMPERATURE SENSOR

90135047000

Unavailable

16

O-ring 7.65x1.78

J770000817800

Unavailable

17

OIL PRESSURE SENSOR

90138091000

Unavailable

18

O-RING

90138091001

Unavailable

19

VALVE COVER SCREW

90136052020

Unavailable

20

DECOUPLING ELEMENT

90136052010

Unavailable

21

O-RING 23,7X1,9

J770023019

Unavailable
