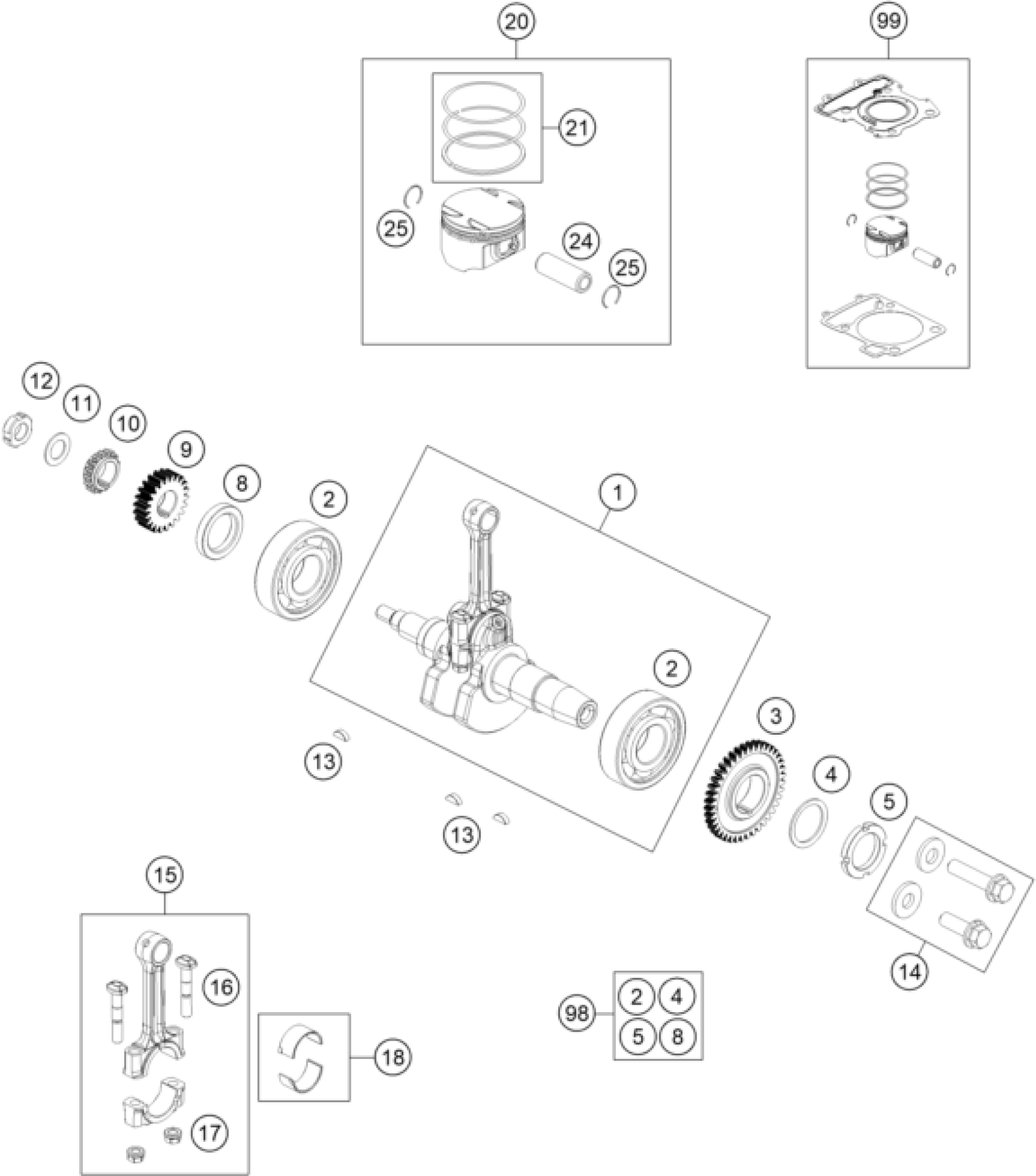

KTM 125 DUKE 2011 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

90130018000

Unavailable

2

BALL BEARING 63/2/8 HN3CNP

90130082000

$22.99

3

DRIVE WHEEL CRANKSH. F. AGW

90130018006

$38.79

4

BELLEVILLE SPRING

90130018007

Unavailable

5

NUT FOR DRIVE WHEEL AGW

90130018008

$6.35

8

SPACER SHIM

90130018003

$4.11

9

PRIMARY GEAR 22T.

90132024000

$28.23

10

TIMING GEAR 17 T.

90136014017

$10.37

11

WASHER PRIMARY DRIVE GEAR

90130029050

$1.49

12

SLOTTED NUT M14X1 H=7

J080414107

Unavailable

13

WOODRUFF KEY 4X5X13

J888040050

$2.05

15

CONNECTING ROD CPL.

90130015000

Unavailable

16

CONNECTING-ROD BOLT

90130015001

Unavailable

21

PISTON RING CPL.

90130030010

Unavailable

18

CON ROD BEARING SHELL GREEN

90130015011

Unavailable

18

CON ROD BEARING SHELL BLUE

90130015012

Unavailable

17

NUT F. CONNECTING-ROD BOLT

90130015002

Unavailable

18

CON ROD BEARING SHELL

90130015010

Unavailable

20

PISTON CPL.

90130007000

Unavailable

24

PISTON BOLT

90130033000

Unavailable

25

CIRCLIP

90130074000

Unavailable

98

CRANKSHAFT REP. KIT DUKE

00050002314

Unavailable

14

SCREW DRIVE GEAR KIT

90130018044

$9.20

99

PISTON KIT 125 DUKE 11-13

00050000210

Unavailable
