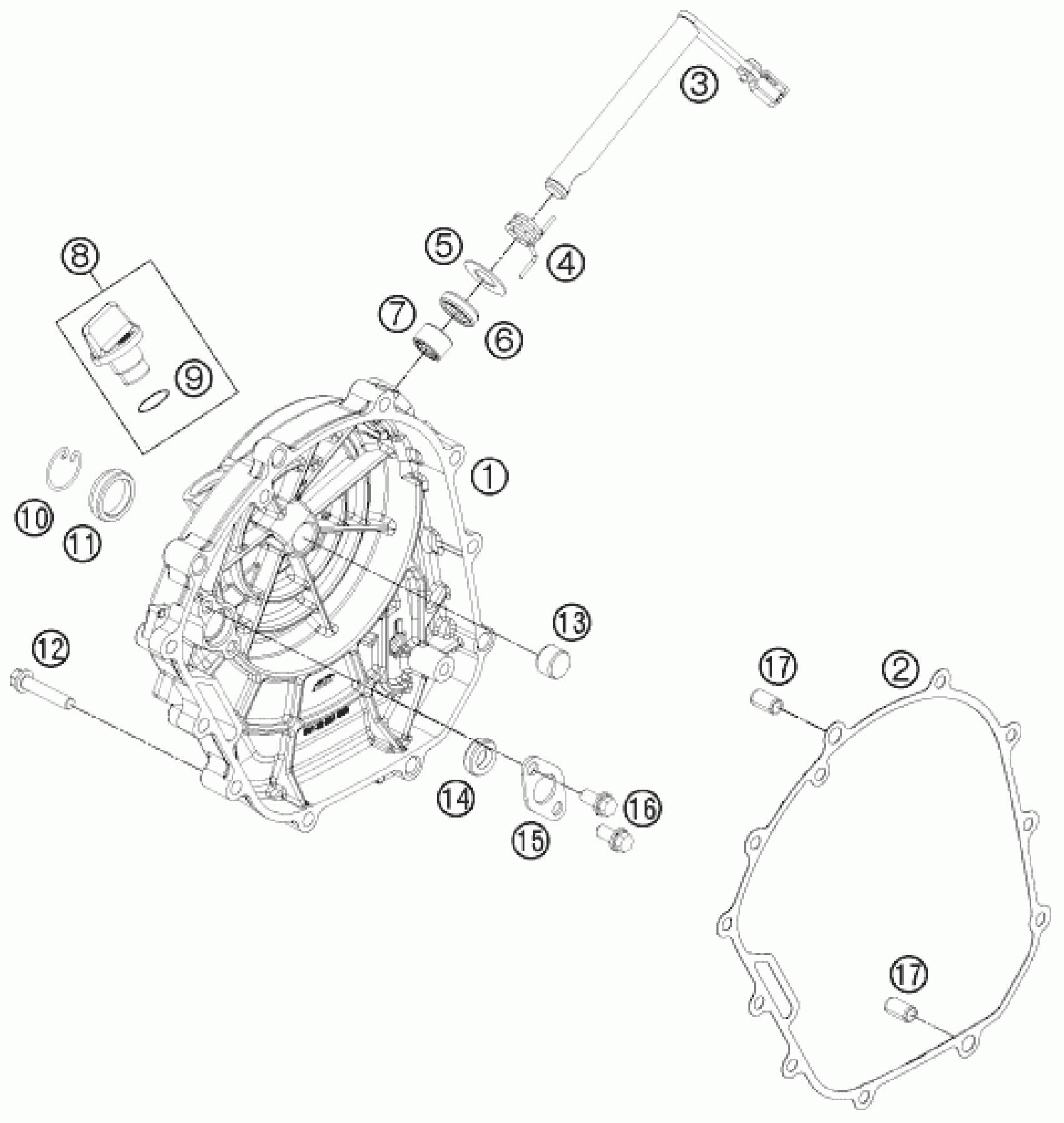

KTM 125 DUKE 2011 CLUTCH COVER Diagram

#

Description

Price

1

CLUTCH COVER CPL.

90130026044

Unavailable

2

GASKET CLUTCH COVER

90130027000

Unavailable

3

CLUTCH RELEASE LEVER CPL.

90132048033

Unavailable

4

SPRING F. RELEASE LEVER

90132048004

Unavailable

5

WASHER 12,5X24X0,8MM

90132048005

Unavailable

6

OIL SEAL RING

90132051000

Unavailable

7

needle bearing

90132050000

Unavailable

8

OIL PLUG CPL.

90130020000

Unavailable

9

O-RING 13,8X2,4

J770013824

Unavailable

10

WIRE CIRCLIP 28X1,5

90130095001

Unavailable

11

OIL GAUGE GLASS

90130095000

Unavailable

12

HH COLLAR SCREW M6X30 SW10

J025060306

Unavailable

13

PUSH ROD

90132054000

Unavailable

14

Seal - Oil

90134027000

Unavailable

15

COVER PLATE

90130026002

Unavailable

16

FLANGED BOLT 6X12

90130078001

Unavailable

17

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable
