Partiron

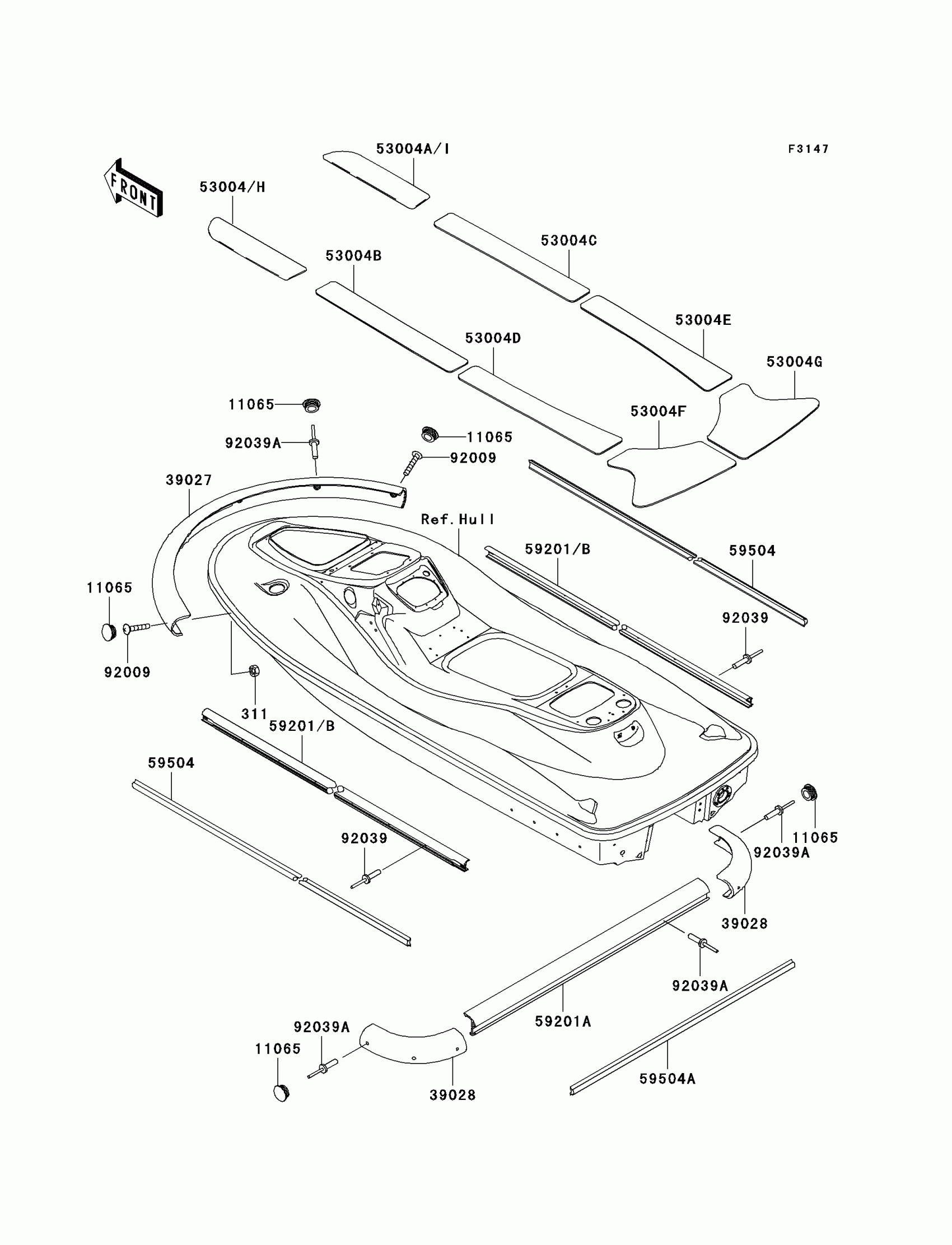

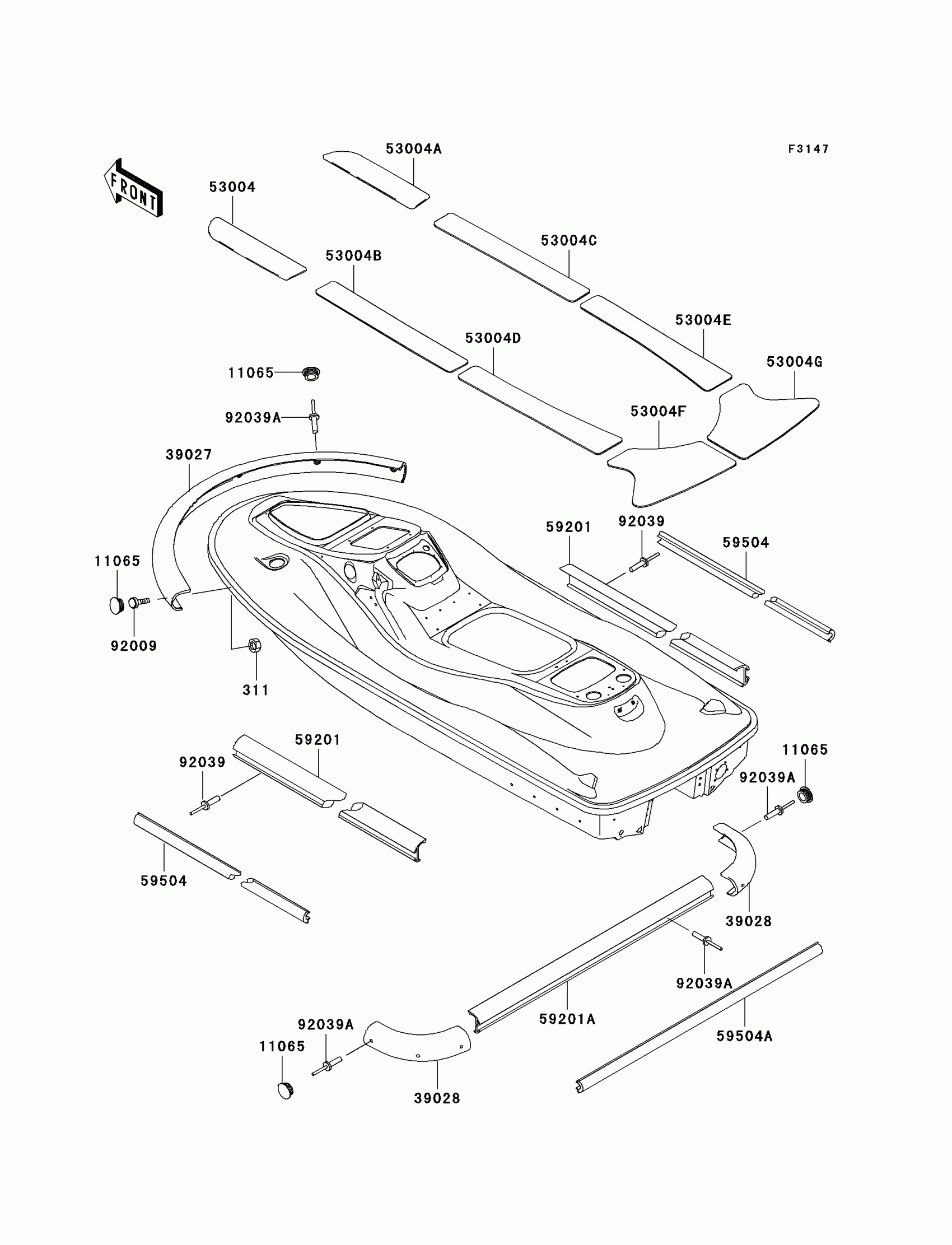

Kawasaki 1200 STX-R Pads Diagram

#

Description
Price

311

NUT-HEX,5MM

311R0500

$1.44

11065

CAP,F.BLACK

11065-3707-6Z

$4.12

39027

BUMPER-FRONT,F.BLACK

39027-3741-6Z

$225.95

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$52.36

53004

MAT,DECK,FR,LH,S.GRAY

53004-3783-RG

Unavailable

53004A

MAT,DECK,FR,RH,S.GRAY

53004-3784-RG

Unavailable

53004B

MAT,DECK,FR,LH

53004-3852

Unavailable

53004C

MAT,DECK,FR,RH

53004-3853

Unavailable

53004D

MAT,DECK,MIDDLE,LH

53004-3854

Unavailable

53004E

MAT,DECK,MIDDLE,RH

53004-3855

$70.28

53004F

MAT,DECK,RR,LH

53004-3856

Unavailable

53004G

MAT,DECK,RR,RH

53004-3857

Unavailable

59201

BUMPER,SIDE,F.BLACK

59201-3787-6Z

Unavailable

59201A

BUMPER,RR,F.BLACK

59201-3788-6Z

$49.23

59504

INSERT-BOAT FENDER,SIDE,F.BLACK

59504-3729-6Z

$90.36

59504A

INSERT-BOAT FENDER,RR,F.BLACK

59504-3730-6Z

$37.44

92009

SCREW,5X30

92009-3834

$7.18

92039

RIVET

92039-3771

$0.92

92039A

RIVET

92039-3773

$1.02
