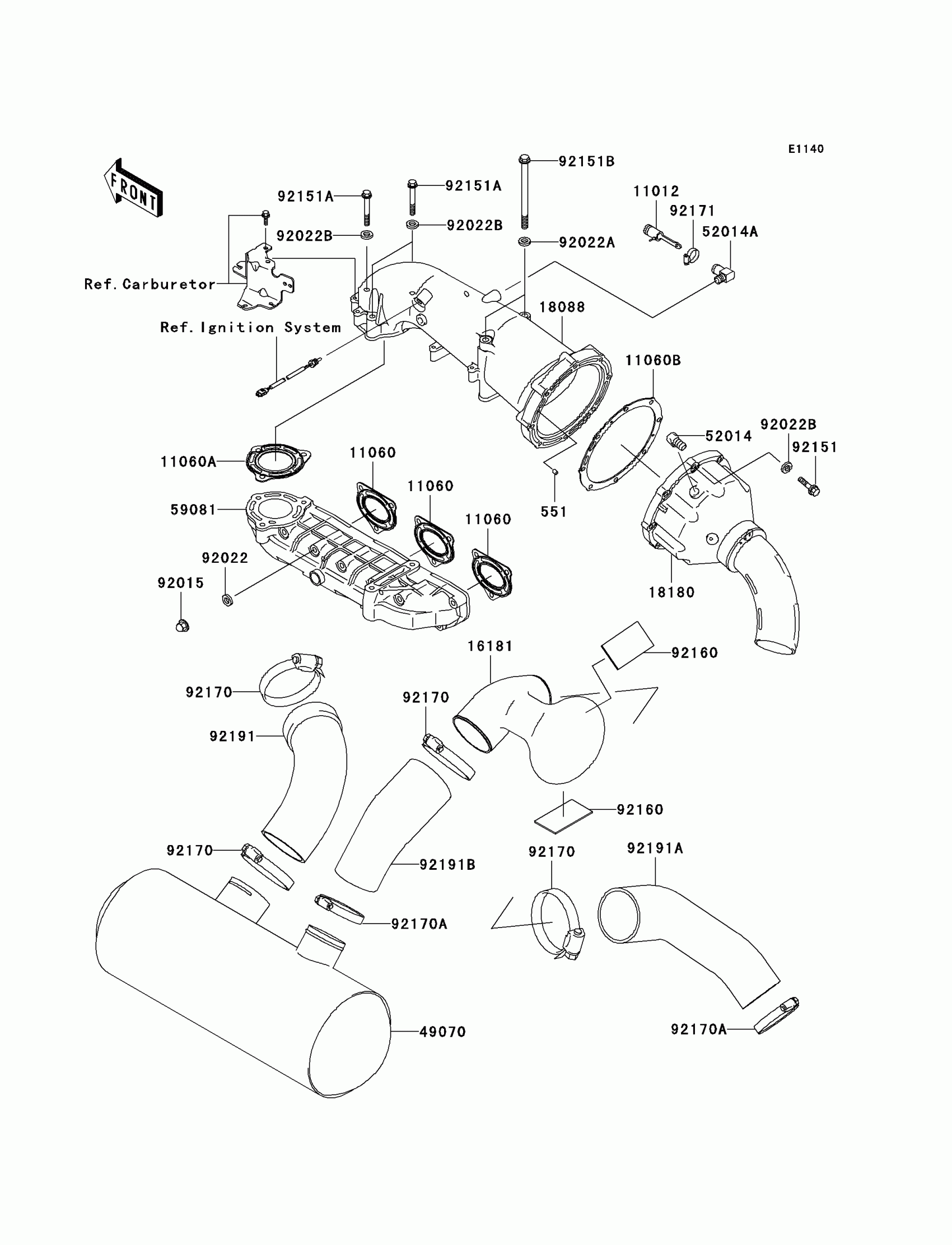

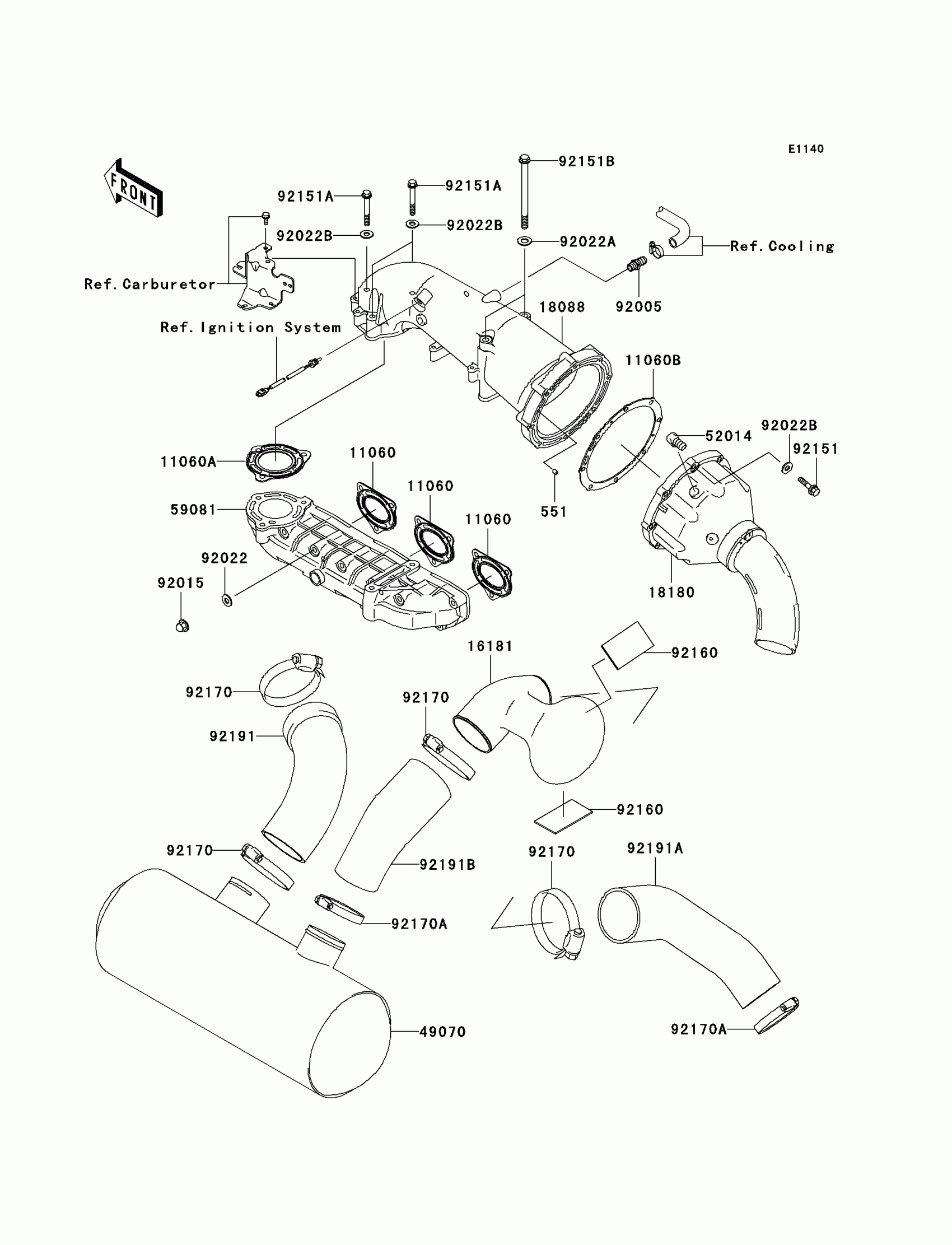

Kawasaki 1200 STX-R Muffler(s) Diagram

#

Description
Price

551

PIN-DOWEL

551R0408

$5.38

11012

CAP

11012-3757

$10.97

11060

GASKET,EXHAUST MANIFOLD

11060-3785

$14.38

11060A

GASKET,EXHAUST PIPE

11060-3786

$38.89

11060B

GASKET,MUFFLER BODY

11060-3807

$23.41

16181

TANK-RESONATOR

16181-3702

$98.41

18088

PIPE-EXHAUST

18088-3713

$642.40

18180

BODY-MUFFLER

18180-3722

$400.78

49070

MUFFLER-COMP

49070-3733

$363.16

52014

ELBOW

52014-3711

$30.12

52014A

ELBOW

52014-3717

$33.08

59081

MANIFOLD-EXHAUST

59081-3735

$703.69

92015

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,10.2X20X1.5

92022-3742

$4.18

92022B

WASHER,8.2X18X1.5

92022-3743

$4.22

92151

BOLT,8X35

92151-3729

$4.78

92151A

BOLT,8X60

92151-3730

$7.27

92151B

BOLT,10X140

92151-3804

$16.48

92160

DAMPER

92160-3913

$6.69

92170

CLAMP

92170-3760

$11.56

92170A

CLAMP

92170-3764

$10.35

92171

CLAMP

92171-3701

$7.43

92191

TUBE

92191-3835

$132.86

92191A

TUBE,RESONATOR-TAILPIPE

92191-3942

$125.43

92191B

TUBE,RESONATOR-TAILPIPE

92191-3945

$107.03
