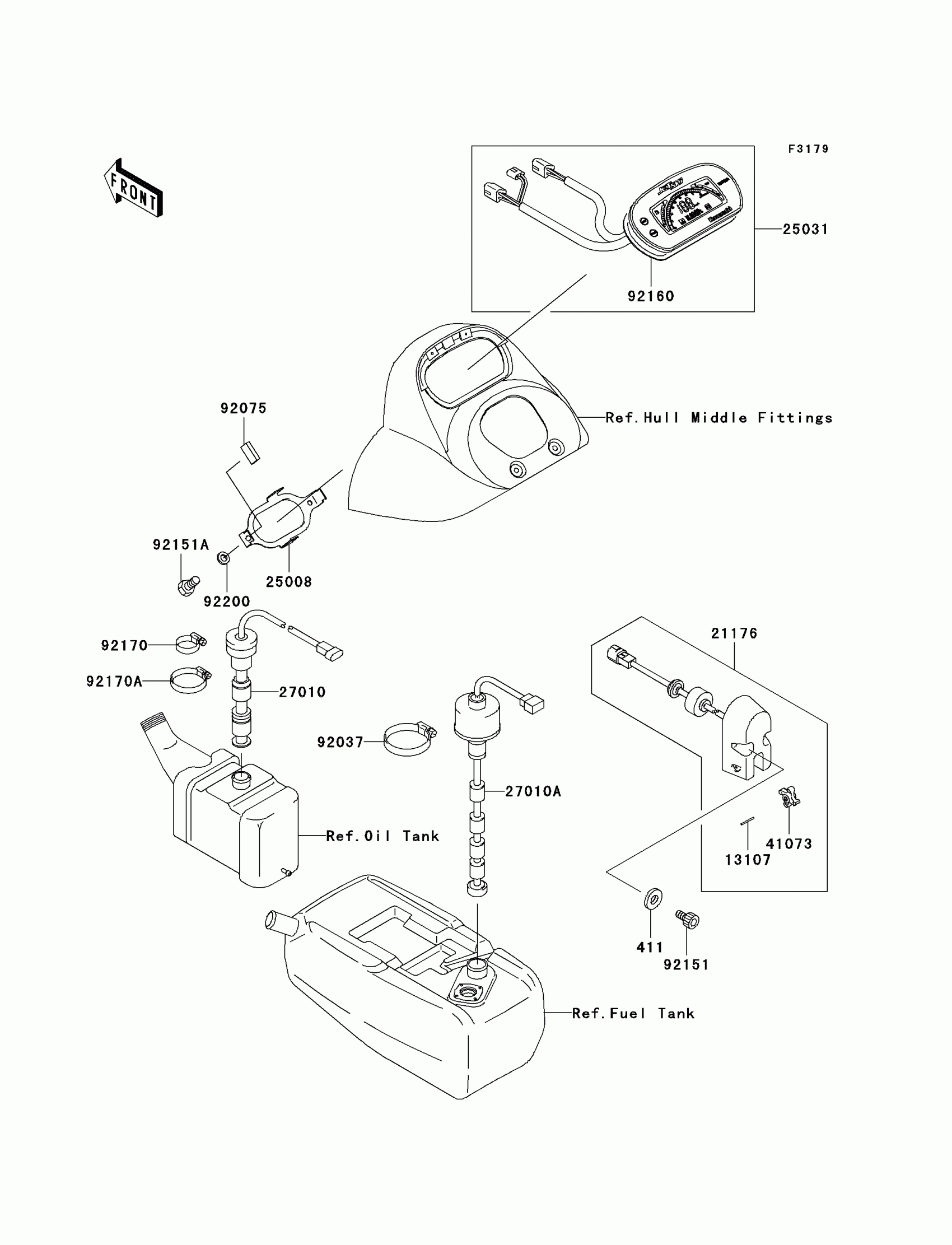

Kawasaki 1200 STX-R Meters Diagram

Description

Price

411

WASHER-PLAIN,6MM

411S0600

$2.06

13107

SHAFT

13107-3754

$6.11

21176

SENSOR,SPEEDOMETER,F.BLACK

21176-3749-6Z

$218.20

25008

BRACKET-METER

25008-3709

$50.01

27010

SWITCH,OIL LEVEL

27010-3753

$159.07

27010A

SWITCH,FUEL LEVEL

27010-3770

Unavailable

41073

WHEEL-ASSY,PADDLE

41073-3701

$16.84

92037

CLAMP

92037-3009

$3.70

92075

DAMPER

92075-1446

$4.69

92151

BOLT,6X10

92151-3704

$4.20

92151A

BOLT,5X10

92151-3707

$3.32

92160

DAMPER,METER

92160-3881

$13.66

92170

CLAMP

92170-3718

$13.67

92170A

CLAMP

92170-3734

$15.26

92200

WASHER,5.9X16X1.5

92200-3714

$2.14

25031

METER-ASSY,MILE

25031-3747

$1,425.12

25031A

METER-ASSY,KM

25031-3748

Unavailable
