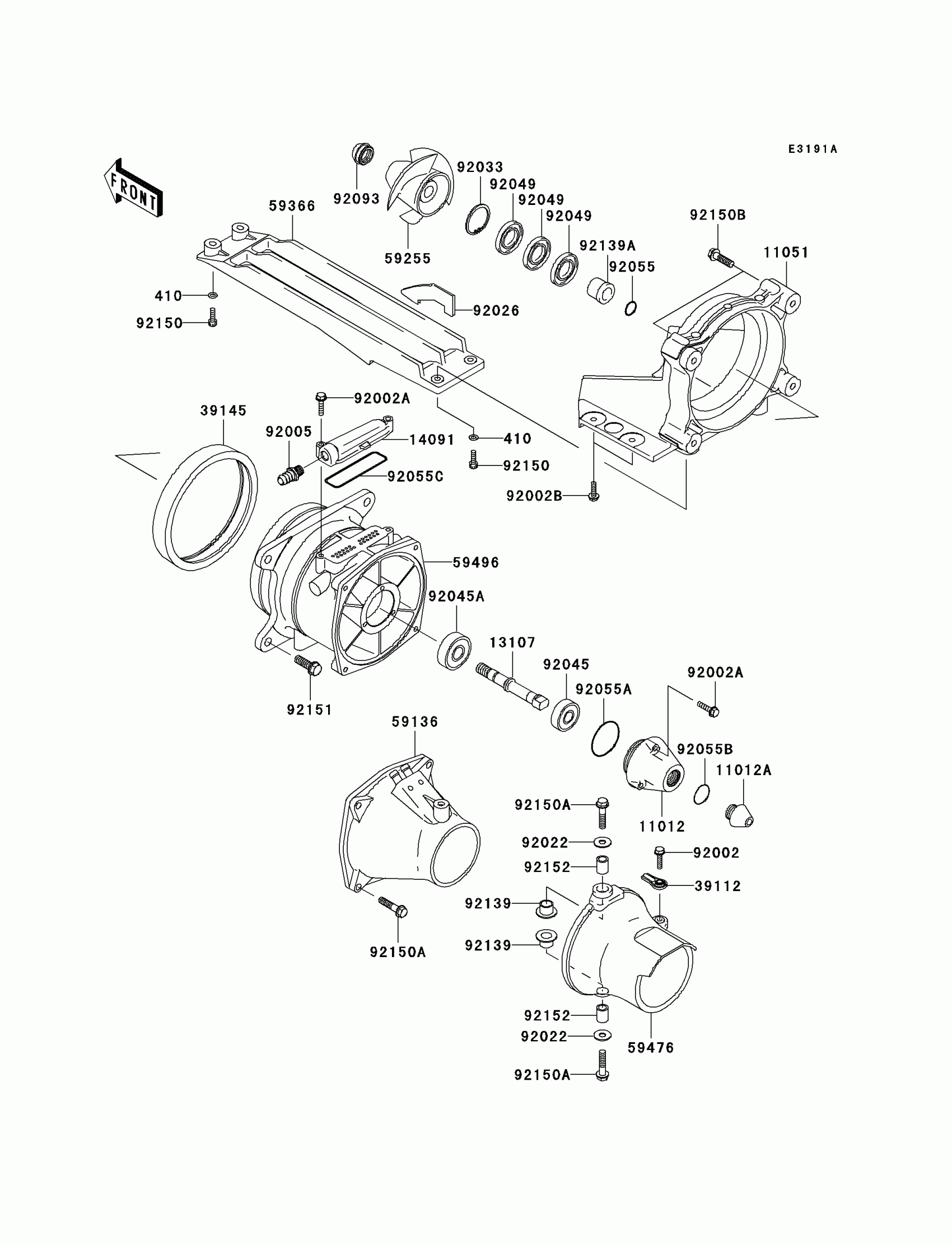

Kawasaki 1200 STX-R Jet Pump(C2) Diagram

#

Description
Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

11012

CAP

11012-3785

$49.96

11012A

CAP

11012-3786

Unavailable

11051

BRACKET

11051-3763

$516.54

13107

SHAFT,JETPUMP

13107-3752

$77.79

14091

COVER,VANE GUIDE

14091-3751

$30.84

39112

RODEND-TIE

39112-3703

$22.16

39145

TRIM-SEAL

39145-3742

$45.60

59136

NOZZLE-PUMP

59136-3761

$149.90

59255

IMPELLER-COMP

59255-3721

$519.54

59366

GRATE

59366-3719

$191.46

59476

NOZZLE-STRG

59476-3742

$294.69

59496

VANE-GUIDE

59496-3756

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92005

FITTING

92005-3714

$18.72

92022

WASHER,PLAIN

92022-3026

$3.60

92026

SPACER

92026-3742

$14.36

92033

RING-SNAP

92033-3730

$9.11

92045

BEARING-BALL,62022RD

92045-3721

$19.27

92045A

BEARING-BALL,6303R-6

92045-3740

$40.75

92049

SEAL-OIL

92049-3739

$28.94

92055

RING-O,13.0X1.9

92055-1011

$7.62

92055A

RING-O

92055-3741

$3.32

92055B

RING-O

92055-3744

$2.91

92055C

RING-O,70.2X74.0X1.90

92055-3765

Unavailable

92093

SEAL

92093-3749

$4.96

92139

BUSHING

92139-3701

Unavailable

92139A

BUSHING

92139-3715

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,8X35

92150-3792

$7.34

92150B

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

92152

COLLAR,8.2X11.8X15

92152-3703

$7.68
