Description

Price

11012

CAP

11012-3005

$5.54

11012A

CAP

11012-3791

$12.48

11053

BRACKET

11053-3721

$31.93

11060

GASKET

11060-3709

$13.41

11060A

GASKET,ELECTRIC CASE

11060-3805

$42.07

13091

HOLDER

13091-3785

$18.22

13271

PLATE

13271-3707

$14.60

13271A

PLATE

13271-3842

$6.82

13280

HOLDER

13280-3706

$3.77

13280A

HOLDER

13280-3711

$7.55

13280B

HOLDER

13280-3712

$19.72

21066

REGULATOR-VOLTAGE

21066-3716

$173.33

21119

IGNITER

21119-3757

$768.21

21121

COIL-IGNITION,#1

21121-3714

$136.52

21121A

COIL-IGNITION,#2

21121-3715

$130.31

21121B

COIL-IGNITION,#3

21121-3716

$130.31

21130

CAP-SPARK PLUG

21130-3706

$52.27

21176

SENSOR,INTAKE AIR TEMP

21176-3730

$82.80

21176A

SENSOR,COOLING WATER TEMP

21176-3731

$139.74

26004

FUSE-ASSY

26004-3726

$138.90

26006

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006A

FUSE,3A-P

26006-1060

$5.56

26011

WIRE-LEAD

26011-3857

$99.54

26011A

WIRE-LEAD

26011-3880

$232.93

27010

SWITCH

27010-3777

$164.03

59416

CASE-ELECTRIC

59416-3710

$57.71

59416A

CASE-ELECTRIC

59416-3711

$64.25

59416B

CASE-ELECTRIC,UPP

59416-3749

$89.42

59416C

CASE-ELECTRIC,LWR

59416-3750

$96.03

92009

SCREW,TAPPING,6X25

92009-1640

$5.23

92009A

SCREW,6X15

92009-3830

$3.32

92009B

SCREW,6X14

92009-3845

$1.06

92009C

SCREW,6X18

92009-3846

$1.86

92022

WASHER

92022-3035

$3.52

92022A

WASHER

92022-567

$2.67

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92043

PIN

92043-3715

$7.34

92055

RING-O

92055-1292

$8.42

110

BOLT,6X20

110R0620

$5.31

156

BOLT-WP,6X20

156R0620

$3.65

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER PLAIN 10MM

410B1000

$0.58

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

92066

PLUG

92066-1347

$7.55

92070

PLUG-SPARK,BR9ES(NGK),SOLID

92070-1157

$3.62

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3837

$3.23

92071B

GROMMET

92071-527

$6.68

92093

SEAL

92093-3754

$30.51

92150

BOLT,6X80

92150-3711

$13.04

92170

CLAMP

92170-3765

$8.50

92191

TUBE,8X10X690

92191-3847

$5.54

92191A

TUBE,8X10X570

92191-3848

$7.55

92191B

TUBE,8X10X500

92191-3849

$6.89

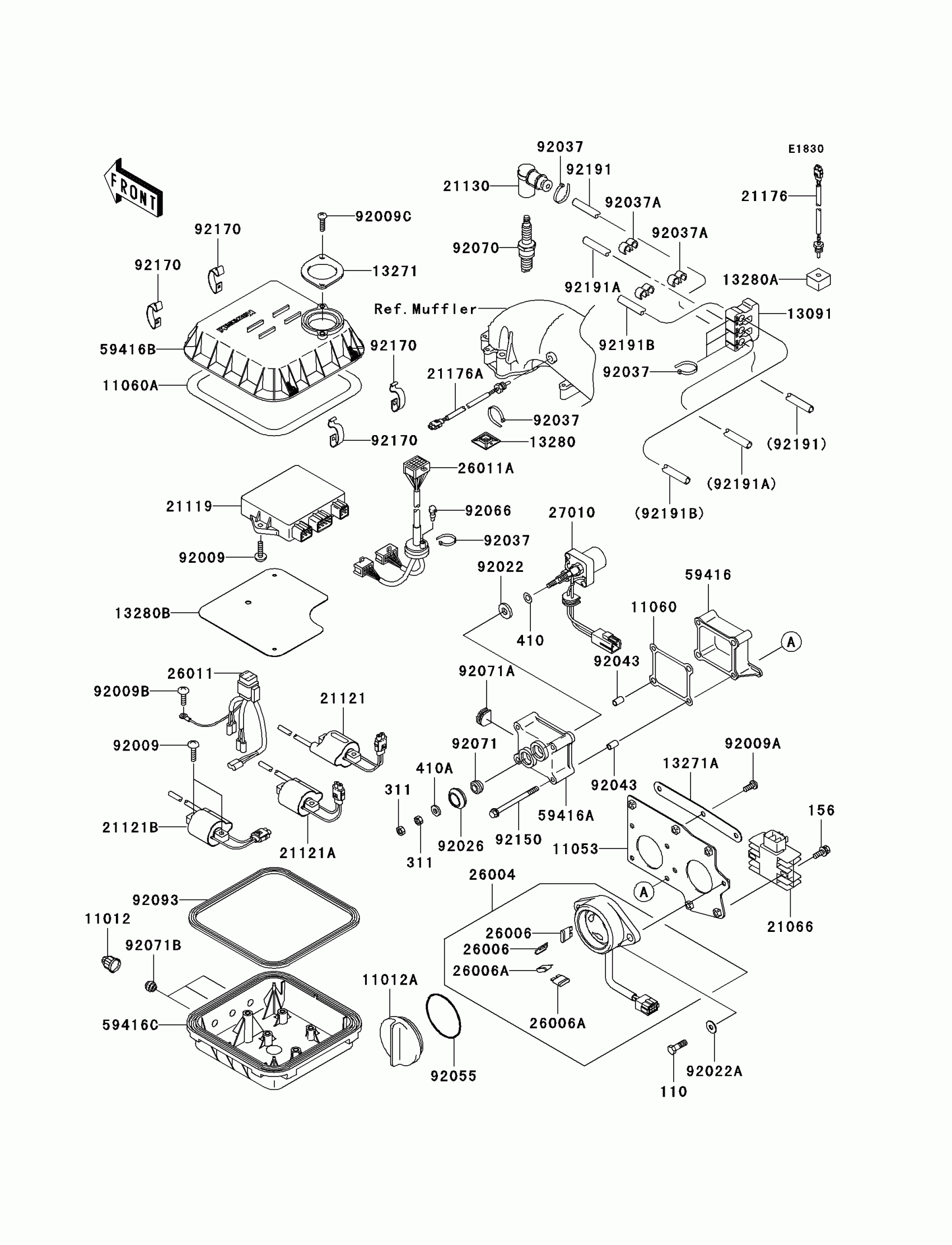

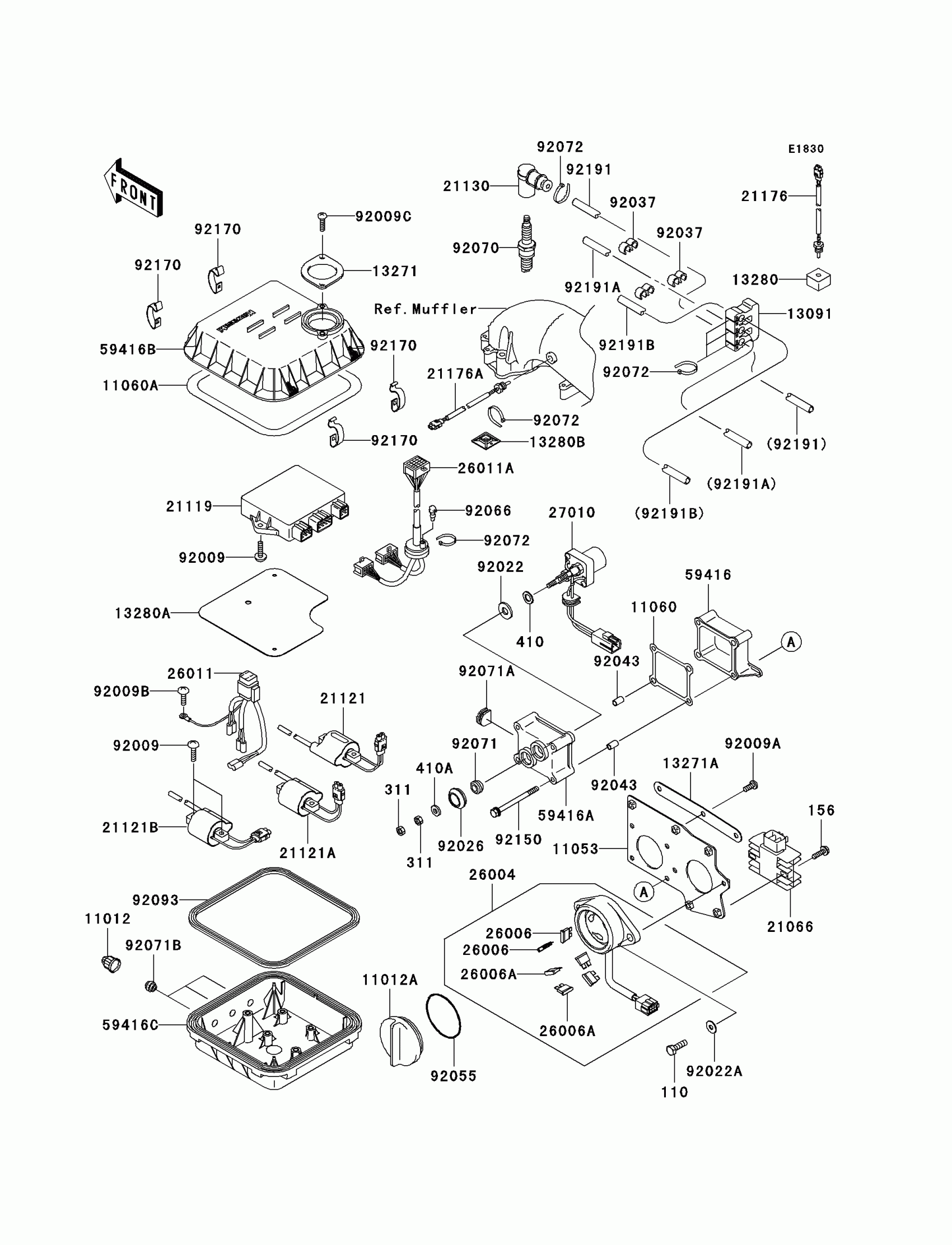

Kawasaki 1200 STX-R Ignition System Diagram

CAP

CAP

BRACKET

GASKET

GASKET,ELECTRIC CASE

HOLDER

PLATE

PLATE

HOLDER

HOLDER

HOLDER

REGULATOR-VOLTAGE

IGNITER

COIL-IGNITION,#1

COIL-IGNITION,#2

COIL-IGNITION,#3

CAP-SPARK PLUG

SENSOR,INTAKE AIR TEMP

SENSOR,COOLING WATER TEMP

FUSE-ASSY

FUSE,BLADE,10A,RED

FUSE,3A-P

WIRE-LEAD

WIRE-LEAD

SWITCH

CASE-ELECTRIC

CASE-ELECTRIC

CASE-ELECTRIC,UPP

CASE-ELECTRIC,LWR

SCREW,TAPPING,6X25

SCREW,6X15

SCREW,6X14

SCREW,6X18

WASHER

WASHER

SPACER

CLAMP

CLAMP,HOSE

PIN

RING-O

BOLT,6X20

BOLT-WP,6X20

NUT-HEX,6MM

WASHER PLAIN 10MM

WASHER-PLAIN-SMALL,6MM

PLUG

PLUG-SPARK,BR9ES(NGK),SOLID

GROMMET

GROMMET

GROMMET

SEAL

BOLT,6X80

CLAMP

TUBE,8X10X690

TUBE,8X10X570

TUBE,8X10X500
