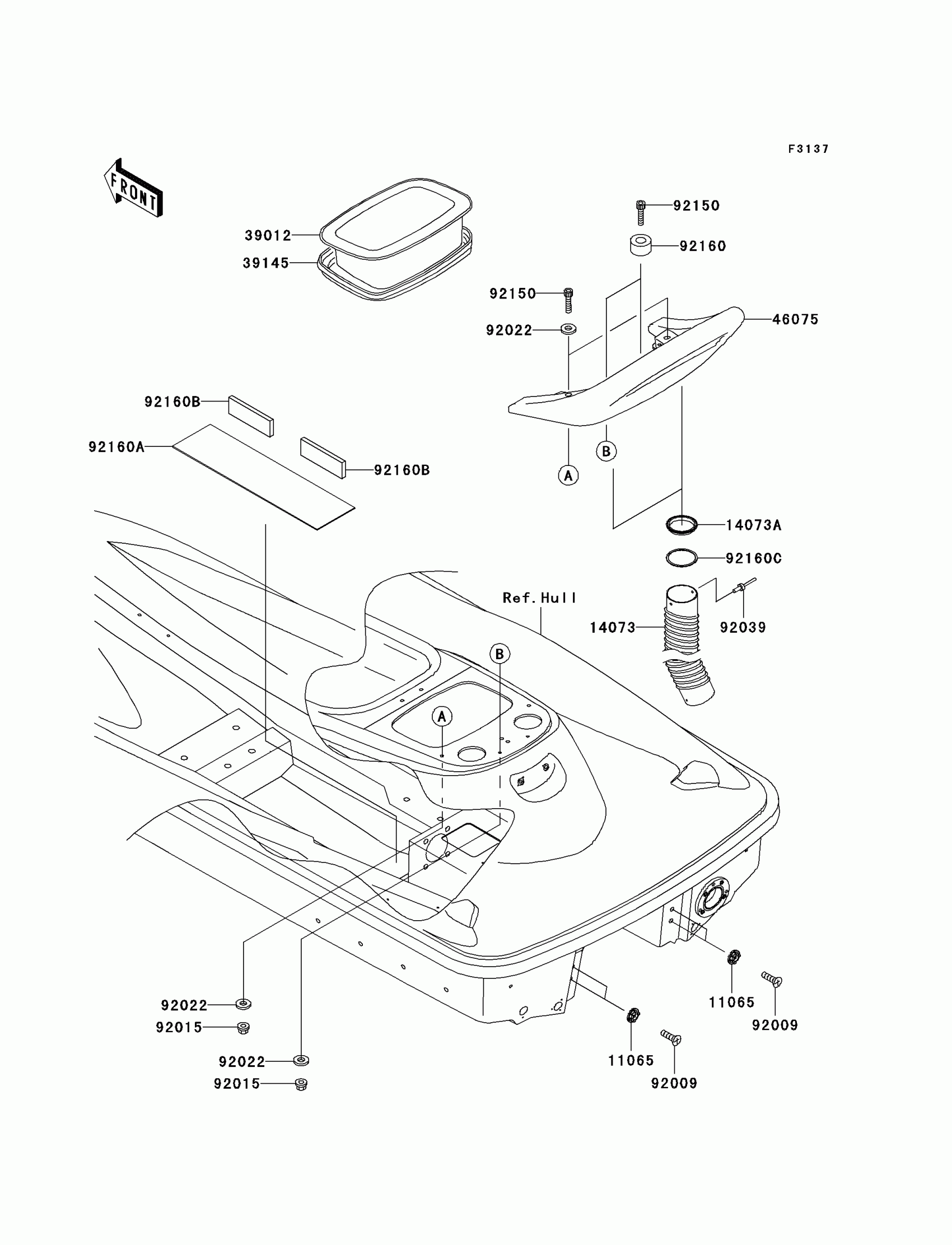

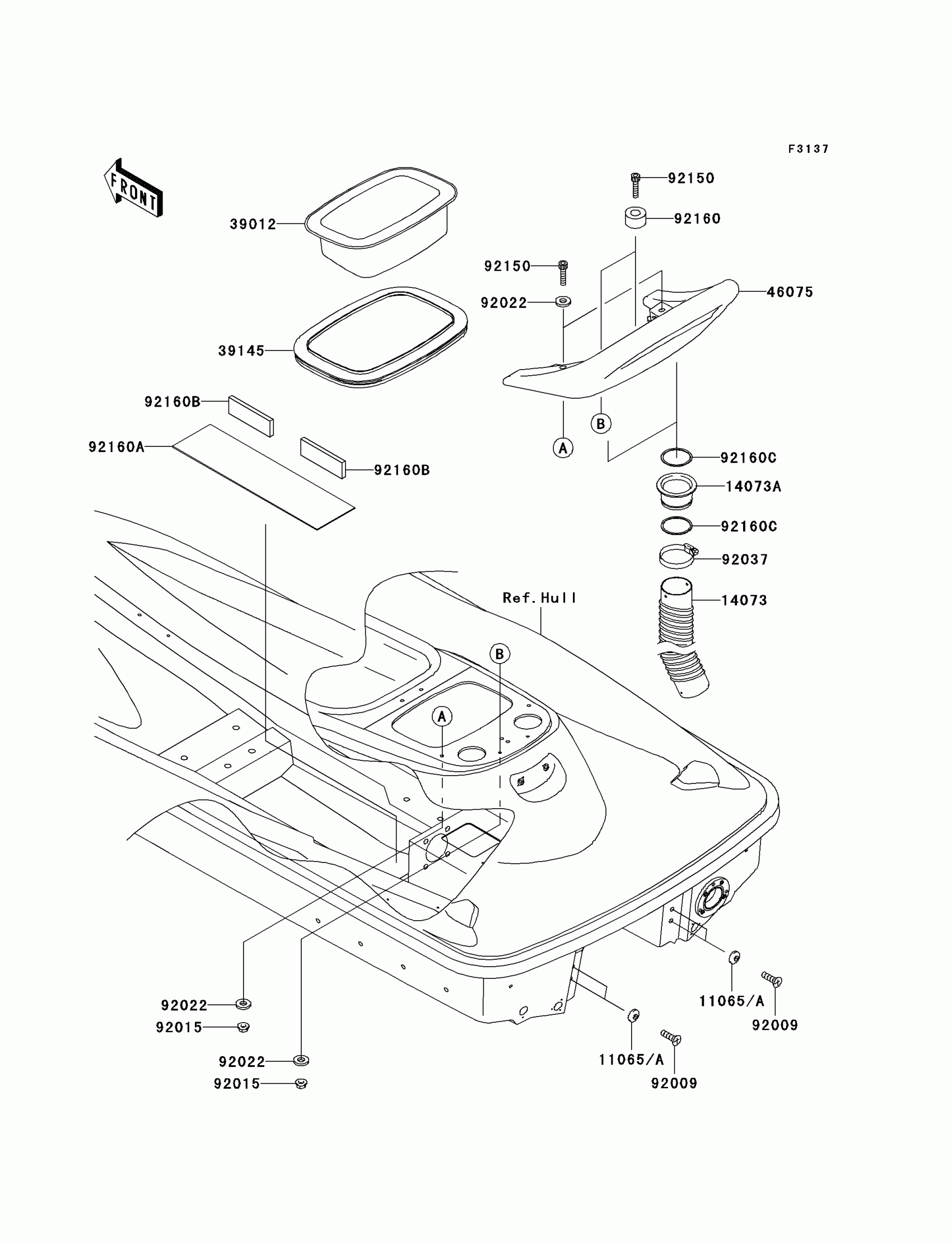

Kawasaki 1200 STX-R Hull Rear Fittings Diagram

Description

Price

11065A

CAP,STEP NUT,F.BLACK

11065-3728-6Z

$4.36

14073

DUCT

14073-3798

$13.73

14073A

DUCT

14073-3799

$16.10

39012

CASE-STORAGE

39012-3716

$9.75

39145

TRIM-SEAL,REAR STORAGE CASE

39145-3783

$36.08

46075

GRIP,RR,F.BLACK

46075-3755-6Z

$231.19

92009

SCREW,6X12

92009-3852

$2.76

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-3738

$6.89

92150

BOLT,SOCKET,6X30

92150-3822

$4.31

92160

DAMPER

92160-3738

$14.36

92160A

DAMPER

92160-3839

$22.14

92160B

DAMPER

92160-3840

$5.88

92160C

DAMPER

92160-3910

$5.69
