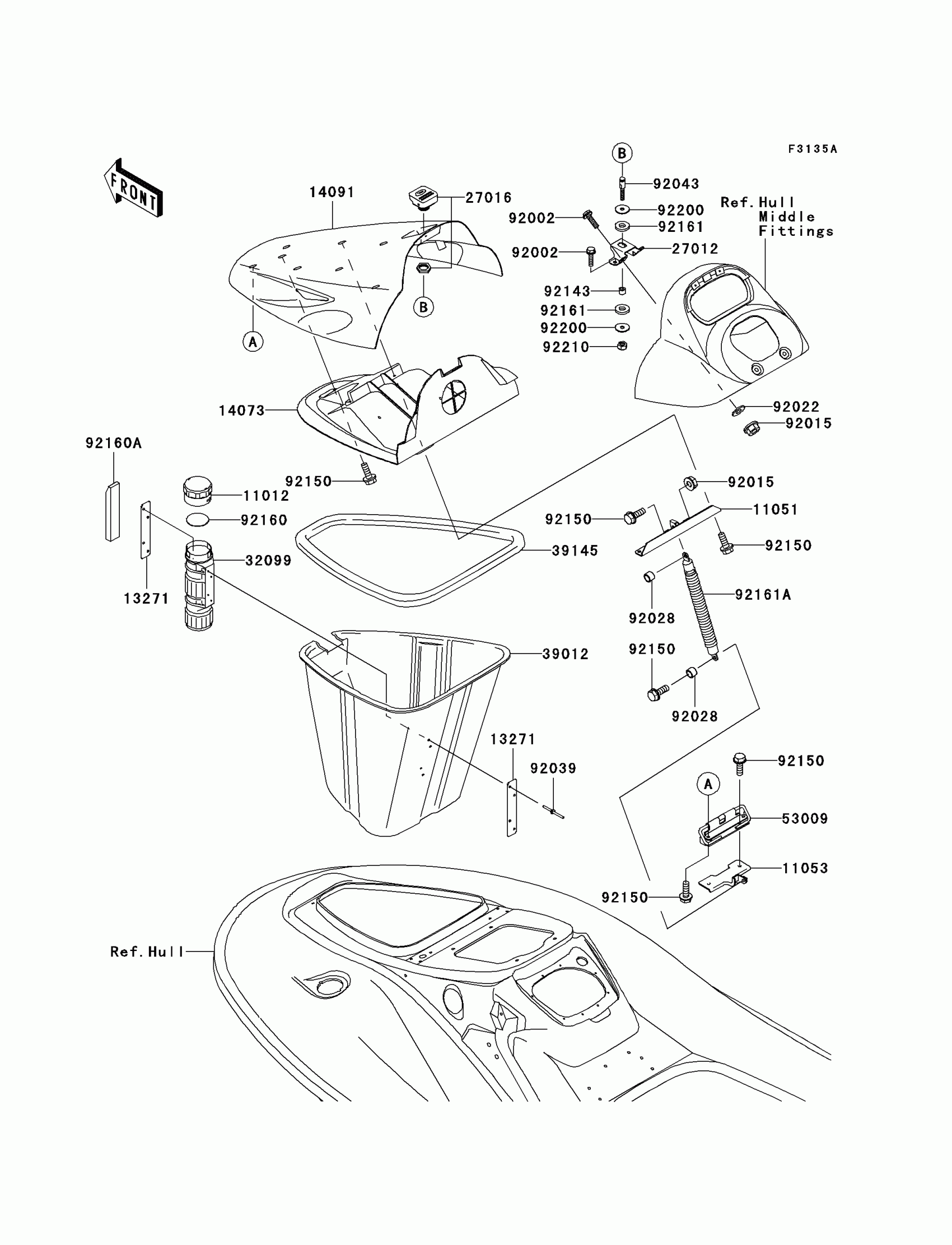

Kawasaki 1200 STX-R Hull Front Fittings(C2) Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11051

BRACKET

11051-3766

$30.55

11053

BRACKET

11053-3752

$47.68

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14073

DUCT,FR

14073-3796

$138.01

14091

COVER,HATCH,L.GREEN

14091-3772-777

$134.19

27012

HOOK

27012-3841

$29.21

27016

LOCK-ASSY

27016-3757

Unavailable

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

39012

CASE-STORAGE,FR

39012-3726

$30.54

39145

TRIM-SEAL,L=1380

39145-3773

$77.78

53009

HINGE,HATCH COVER

53009-3725

$117.70

92002

BOLT,6X25

92002-3714

$5.00

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3765

$3.29

92039

RIVET

92039-3783

$8.05

92043

PIN

92043-3757

Unavailable

92143

COLLAR,8.2X14X11.2

92143-3724

$13.56

92150

BOLT,6X18

92150-3729

$4.69

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER

92161-3739

$6.18

92161A

DAMPER,HATCH

92161-3753

Unavailable

92200

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,LOCK,8MM

92210-3742

$6.57
